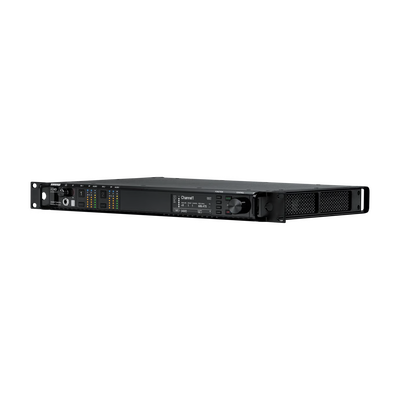

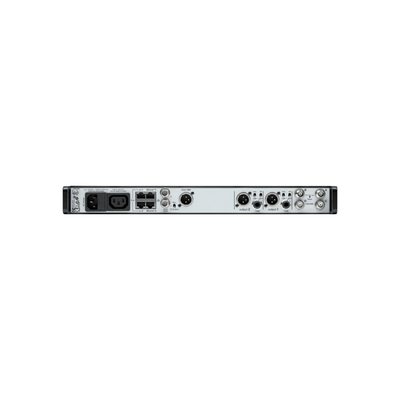

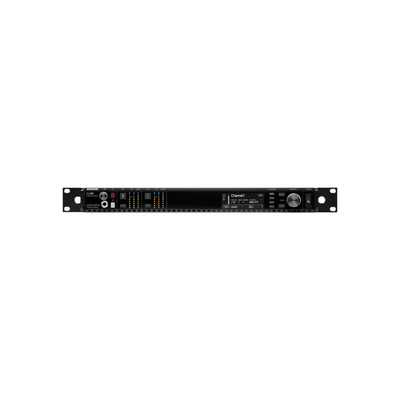

SHURE AD4D

• Works with Axient Digital Wireless Systems
• Features networked control and signal routing options, plus mobile monitoring and control capabilities
• Available with or without accessories
• Wide tuning range up to 184 MHz
• True digital diversity reception per channel for drop-out resistance
• Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
• Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
• Configurable Ethernet switch for redundant Dante or AES67 digital output
• AES3 output
• Channel Quality meter displays RF signal-to-noise

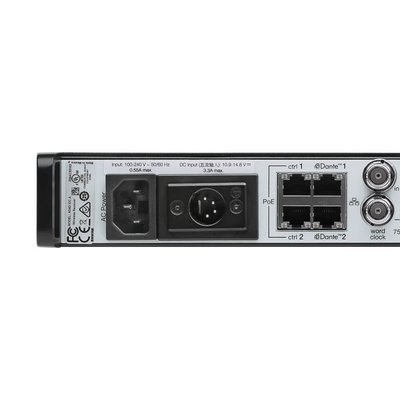

• Locking AC connectors
• DC module version available to support redundant power

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

System Specifications

RF Carrier Frequency Range

470–960 MHz, varies by region (See frequency table)

Working Range

100 m ( 330 ft)

Note: Actual range depends on RF signal absorption, reflection and interference.Note: Actual range depends on RF signal absorption, reflection and interference.

RF Tuning Step Size

25 kHz, varies by region

Channel-to-Channel Spacing

Standard Mode350 kHzHigh Density Mode125 kHz

varies by region

Channel-to-Channel Spacing

Standard Mode350 kHzHigh Density Mode125 kHz

varies by region

Image Rejection

>70 dB, typical

RF Sensitivity

−98 dBm at 10-5 BER
