SENNHEISER XSW 2-ME2

SENNHEISER XSW 2-ME2

Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

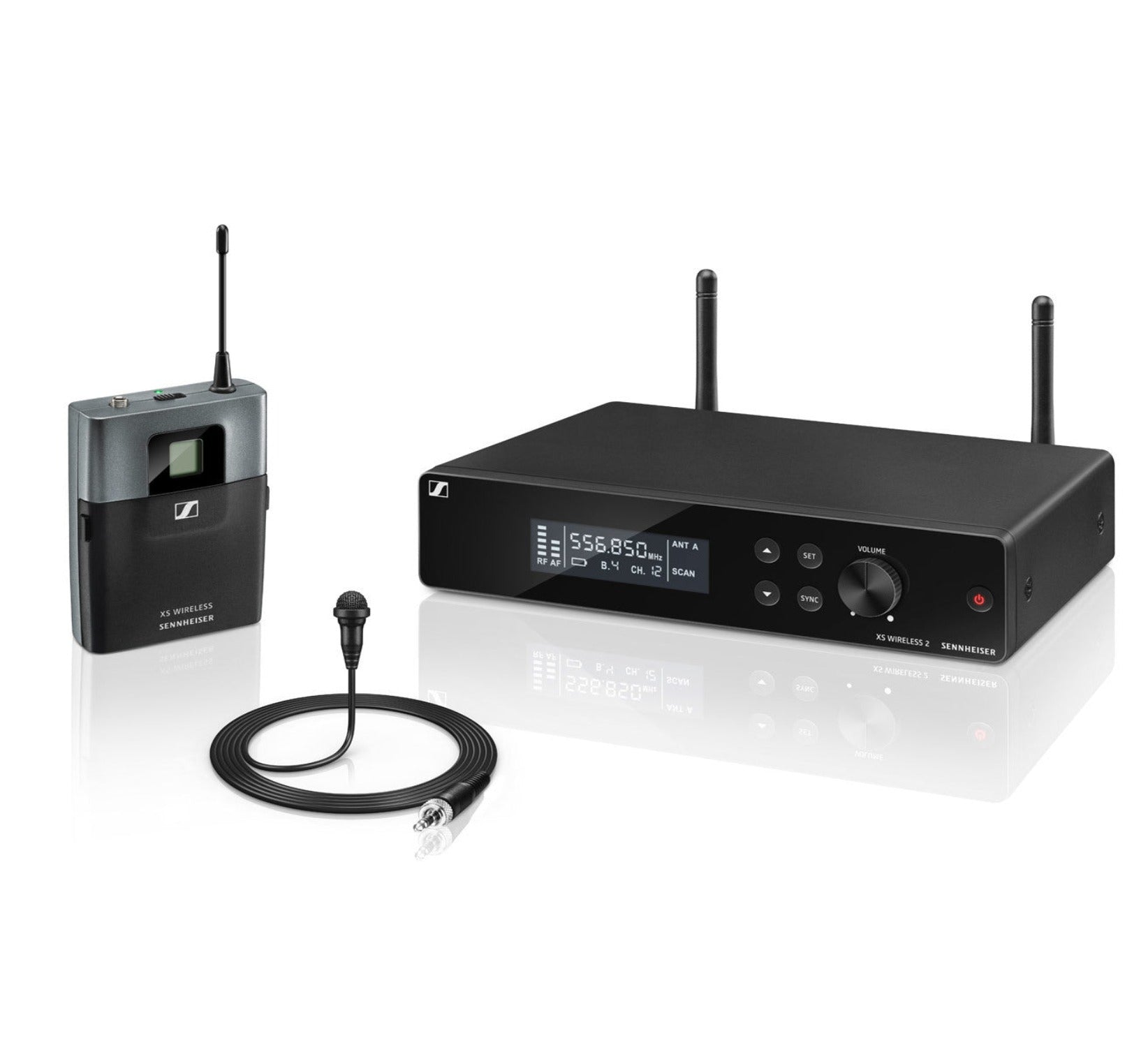

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.

More Information

  • Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

Technical Specification

Receivers
  • Dimensionsapprox. 200 x 42 x 127 mm
  • Weightapprox. 680g
  • Power supply12 V DC nom. / 300 mA
  • HousingMetal
  • AF frequency response50 to 16,000 Hz
Transmitter
  • Dimensionsapprox. 71 x 96 x 28 mm
  • Weightapprox. 95g
  • Operating timeapprox. 10 hrs
  • Power supply2 AA size batteries, 1.5 V
  • HousingRobust ABS
  • AF frequency response50 to 16,000 Hz (–3 dB)
  • MicrophoneCondenser
  • Frequency response50 to 16,000 Hz (–3 dB)
  • THD, total harmonic distortion≤ 0.9%
  • Pick-up patternOmni-directional
  • Signal-to-noise ratio≥ 103 dBA
  • RF output power10 mW
  • Switching bandwidthup to 24 MHz
  • ModulationWideband FM
  • Output voltage'1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Diversity receptionTrue Diversity
  • Frequency8 frequency banks, each with up to 12 factory-preset channels
  • Frequency rangeA: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
  • Sensitivity< 3 μV at 52 dB(A)rms S/N
  • Squelchswitchable from 3 dBμV to 28 dBμV (via Pilot Tone)
  • Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range40 dB, adjustable in 5-dB steps
  • Line / Mic level20 dB, switchable
  • Temperature Rangeoperation: 0°C to +40°C, storage: –20°C to +70°C
  • Receiver Principledouble superheterodyne
