Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

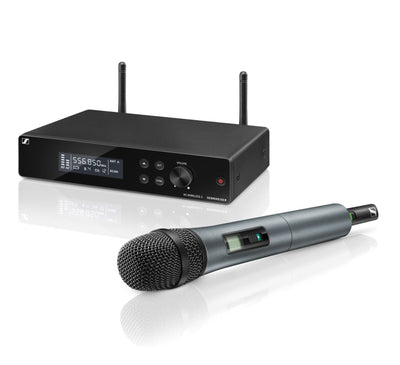

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.

More Information

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via
  • remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

Technical Specification

  • Dimensionsapprox. 200 x 42 x 127 mm
  • Weightapprox. 680g
  • Power supply12 V DC nom. / 300 mA
  • Housingmetal, microphone: robust ABS
  • AF frequency response50 to 16,000 Hz (–3 dB)

Dimensionsapprox. 260 x 50 mm

Weightapprox. 245g

Operating timeapprox. 10 hrs

Power supply2 AA size batteries, 1.5 V

AF frequency response80-16,000 Hz


Frequency response50 to 16,000 Hz (–3 dB)

THD, total harmonic distortion≤ 0.9%

Pick-up patternsuper-cardioid

Signal-to-noise ratio≥ 103 dBA

RF output power10 mW

Switching bandwidthup to 24 MHz

Modulationwideband FM

Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Frequency8 frequency banks, each with up to 12 factory-preset channels

Frequency rangeA: 548-572 MHzGB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz

Sensitivity< 3 μV at 52 dB(A)rms S/N

Squelchswitchable from 3 dBμV to 28 dBμV (via Pilot Tone)

Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)

Input sensitivity1.8 mV / Pa

Adjustment Range Transmitter0到-30分贝,以10分贝为步进调节

Audio adjustment range40 dB, adjustable in 5-dB steps

Line / Mic level20 dB, switchable

Temperature Rangeoperation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principledouble superheterodyne

Diversity principleTrue Diversity
