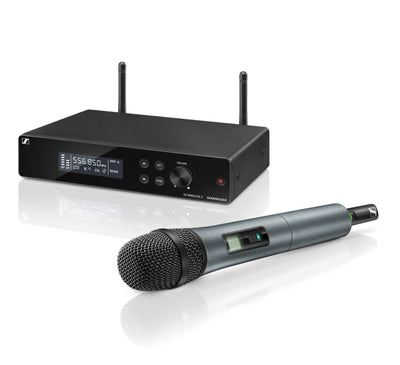

SENNHEISER XSW 2-835

SENNHEISER XSW 2-835

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

More Information

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via
  • remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

Technical Specification

Receivers
  • Dimensionsapprox. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
  • Weightapprox. 680g
  • Power supply12 V DC nom. / 300 mA
  • HousingMetal, microphone: robust ABS
  • AF frequency response50 to 16,000 Hz (–3 dB)
  • Microphonedynamic
  • Frequency response50 to 16,000 Hz (–3 dB)
  • THD, total harmonic distortion≤ 0.9%
  • Pick-up patterncardioid
  • Signal-to-noise ratio≥ 103 dBA
  • RF output power10 mW
  • Switching bandwidthup to 24 MHz
  • Operating timeapprox. 10 hrs
  • Modulationwideband FM
  • Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Frequency8 frequency banks, each with up to 12 factory-preset channels
  • Frequency rangeA: 548-572 MHzGB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz
  • Sensitivity< 3 μV at 52 dB(A)rms S/N
  • Squelchswitchable from 3 dBμV to 28 dBμV (via Pilot Tone)
  • Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Line20 dB, switchable
  • Input sensitivity1.5 mV / Pa
  • Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range40 dB, adjustable in 5-dB steps
  • Temperature Rangeoperation: 0°C to +40°Cstorage: –20°C to +70°C
  • Receiver Principledouble superheterodyne
  • Diversity principleTrue Diversity
Microphone
  • Weightapprox. 245g
  • Power supply2 AA size batteries, 1.5 V
  • AF frequency response80-14,000 Hz
