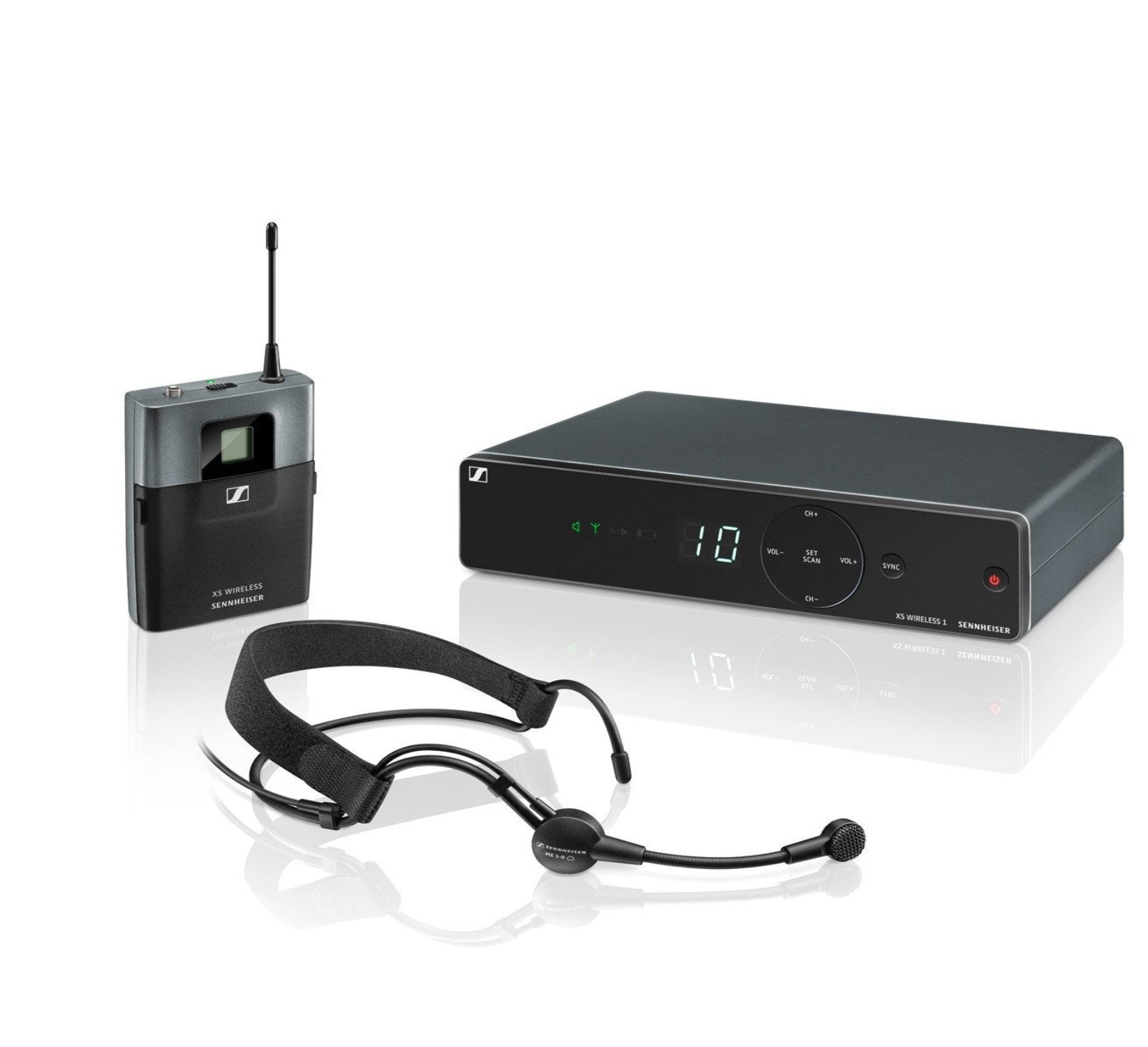

  • Lightweight headmic and compact bodypack transmitter
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels
Technical Specifications
Receivers
  • Dimensionsapprox. 200 x 42 x 127 mm
  • Weightapprox. 340g
  • Power supply12 V DC nom. / 300 mA
  • AF frequency response50 to 16,000 Hz (–3 dB)
Transmitter
  • Dimensionsapprox. 71 x 96 x 28 mm
  • Weightapprox. 95g
  • Operating timeApprox. 10 hrs
  • Power supply2 AA size batteries, 1.5 V
  • Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
  • MicrophoneCondenser
  • THD, total harmonic distortion≤ 0.9%
  • Pick-up patternCardioid
  • Signal-to-noise ratio≥ 103 dBA
  • RF output power10 mW
  • Switching bandwidthup to 24 MHz
  • ModulationWideband FM
  • Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • HousingRugged ABS housing
  • Frequency8 frequency banks, each with up to 10 factory-preset channels
  • Frequency rangeA: 548-572 MHz, GB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz
  • Sensitivity< 3 μV at 52 dB(A)rms S/N
  • SPL for peak deviation150 dB
  • Squelchadjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
  • Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity1.5 mV / Pa
  • Audio adjustment range45 dB, adjustable in 5-dB steps
  • Line / Mic level20 dB, switchable
  • Temperature RangeOperation: 0°C to +40°C, storage: –20°C to +70°C
  • Receiver PrincipleDouble superheterodyne
  • Diversity principleAntenna switching diversity via internal antennas
