SENNHEISER XSW 1-835

SENNHEISER XSW 1-835

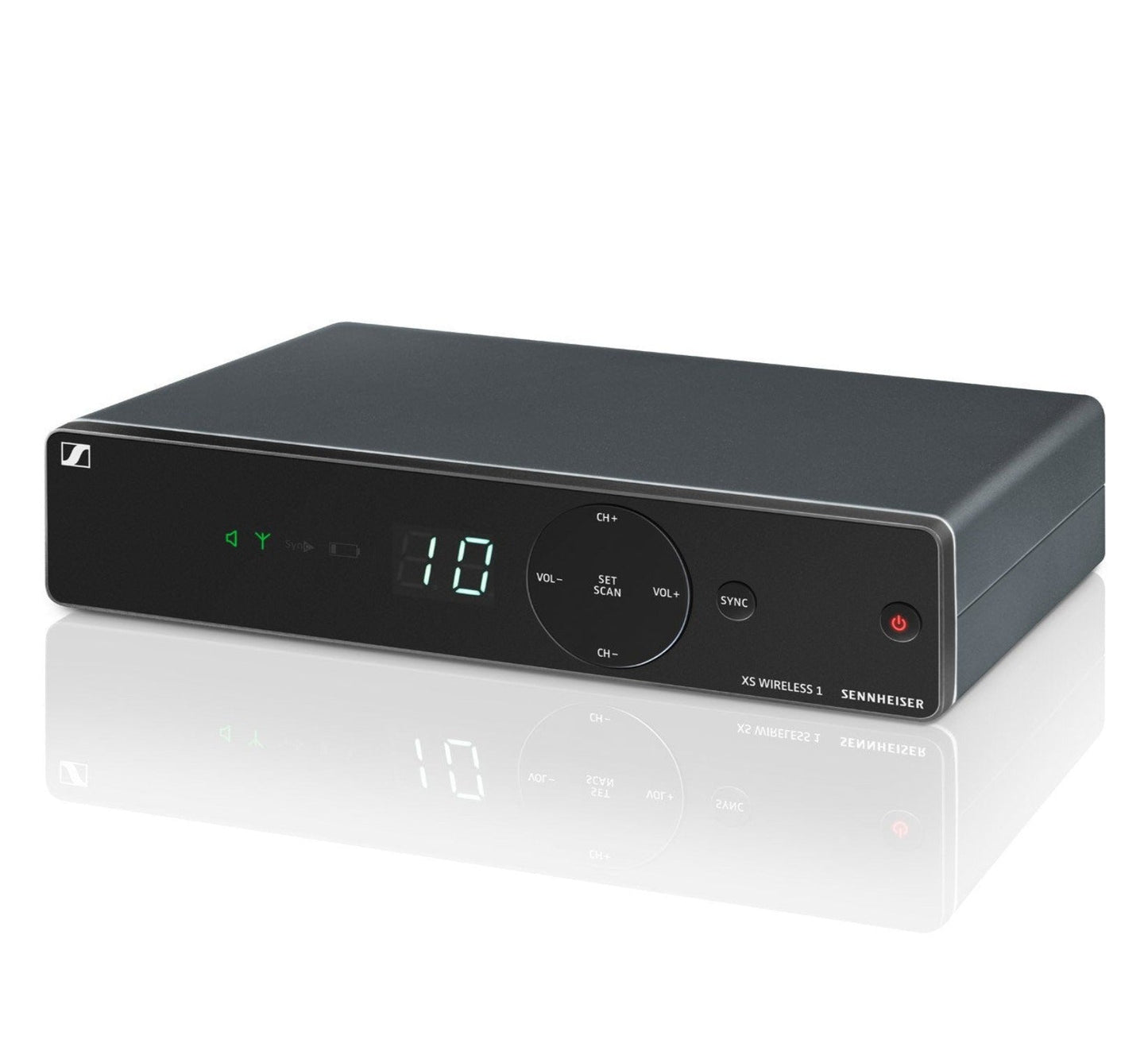

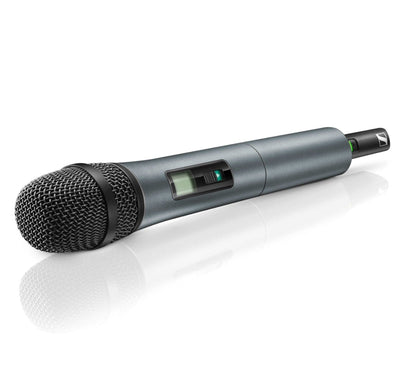

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

More Information

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Technical Specification

  • Dimensionsapprox. 200 x 42 x 127 mm
  • THD, total harmonic distortion≤ 0.9%
  • Pick-up patterncardioid
  • Signal-to-noise ratio≥ 103 dBA
  • RF output power10 mW
  • Switching bandwidthup to 24 MHz
  • Operating timeapprox. 10 hrs
  • Modulationwideband FM
  • Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Housingrugged ABS housing
  • Dynamic rangedynamic
  • Frequency8 frequency banks, each with up to 10 factory-preset channels
  • Frequency rangeA: 548-572 MHz, GB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHzK: 925-937.5 MHz
  • Sensitivity< 3 μV at 52 dB(A)rms S/N
  • Squelchadjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
  • Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity1.5 mV / Pa
  • Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range45 dB, adjustable in 5-dB steps
  • Line / Mic level20 dB, switchable
  • Temperature Rangeoperation: 0°C to +40°C, storage: –20°C to +70°C
  • Receiver Principledouble superheterodyne
  • Diversity principleAntenna switching diversity via internal antennas
Receivers
  • Weightapprox. 340g
  • Power supplyReceiver: 12 V DC nom. / 300 mA
  • AF frequency responseReceiver: 50 to 16,000 Hz (–3 dB)
Microphone
  • Weightapprox. 245g
  • Power supplyMicrophone: 2 AA size batteries, 1.5 V
  • AF frequency responseSKM 825: 80-14,000 HzSKM 835: 80-16,000 Hz
