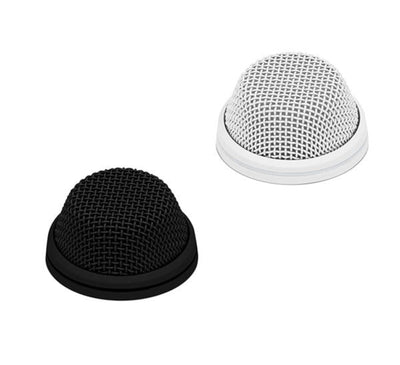

SENNHEISER MEB 104

SENNHEISER MEB 104

Boundary installation wired microphones for simple installation in tables or ceiling elements. With its compact, discreet design, this model will fit perfectly into any environment. The microphone capsule with cardioid pickup pattern guarantees optimum speech intelligibility, and its robust housing provides the perfect protection. The model is available in black and white color.

More Information

Features

  • Cardioid Polar Pattern
  • 40 Hz to 20 kHz Frequency Range
  • 24 to 48V Phantom Power
  • XLR Output Connector
  • Mounting Hardware is Included

Technical Specification

  • Connector: MEB 104: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = − MEB 104-L: XLR-5, Pin assignment: 1 = gnd, 2 = + (Mic +), 3 = − (Mic −), 4 = LED green (trigger signal), 5 = LED red (default)
  • Current consumption: MEB 104: 3 mA , MEB 104-L: 6 mA
  • Colour: black , white , nextel grey
  • Dimensions: Height: 90 mm (19 mm above surface), Diameter:28.5 mm
  • Frequency response: 40 Hz – 20 kHz
  • Max. sound pressure level: 125 dB
  • Transducer principle: pre-polarized condenser microphone
  • Weight: 60 g
  • Pick-up pattern: cardioid
  • Nominal impedance: 200 Ω
  • Phantom powering: P 24 - P 48
  • Operating temperature: 0 ° - +40 °C
  • Equivalent noise level: 28 dB (A)
  • Equivalent noise level weighted as per CCIR 468-3: 38 dB (CCIR)
  • Acoustics: Boundary Layer Microphone
  • Dynamic range: 97 dB (A)
  • Sensitivity: 14 mV/Pa
  • Thread: M 20
