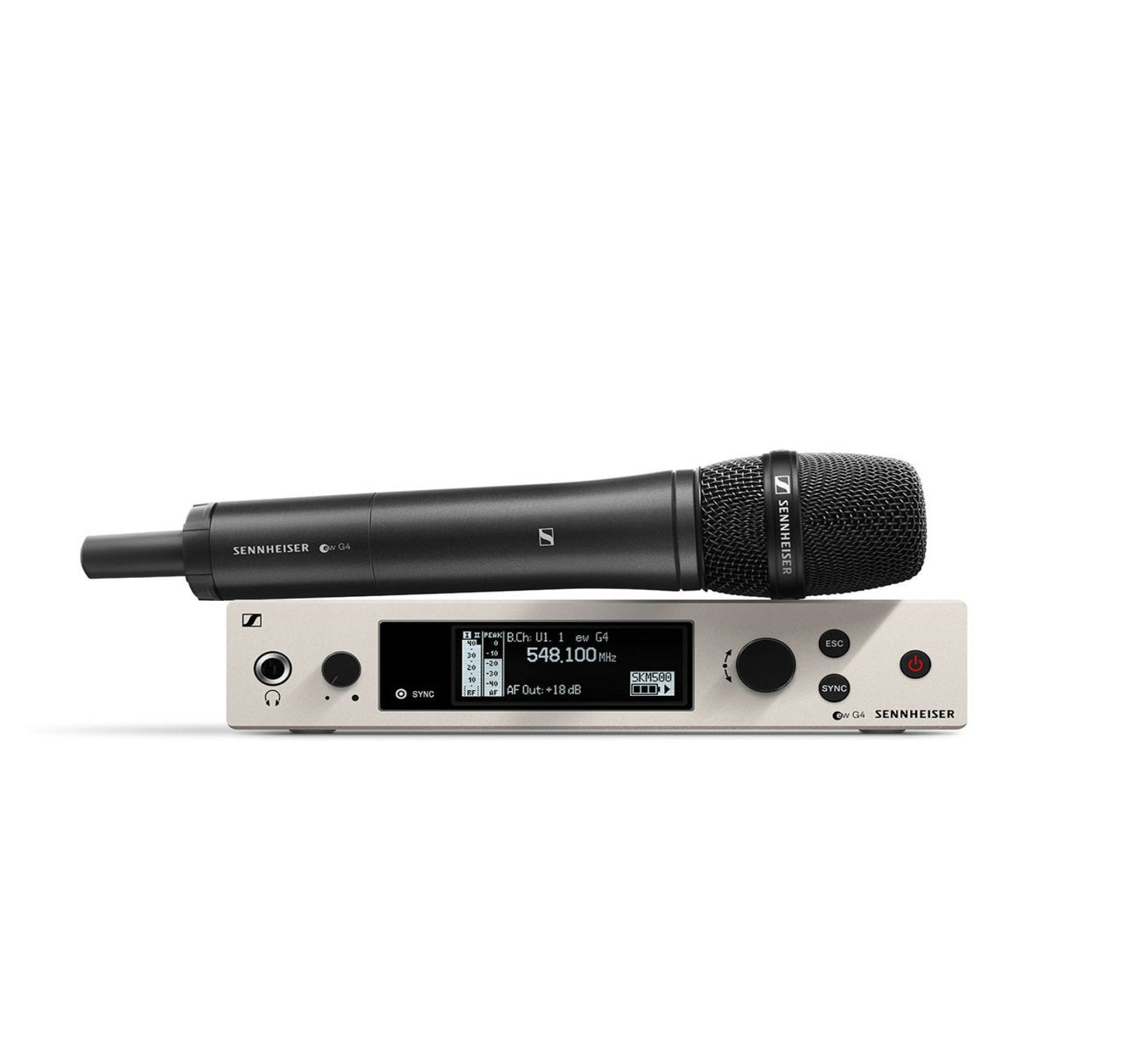

Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

Enquire Now

Product details

More Information
  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Technical Specifications

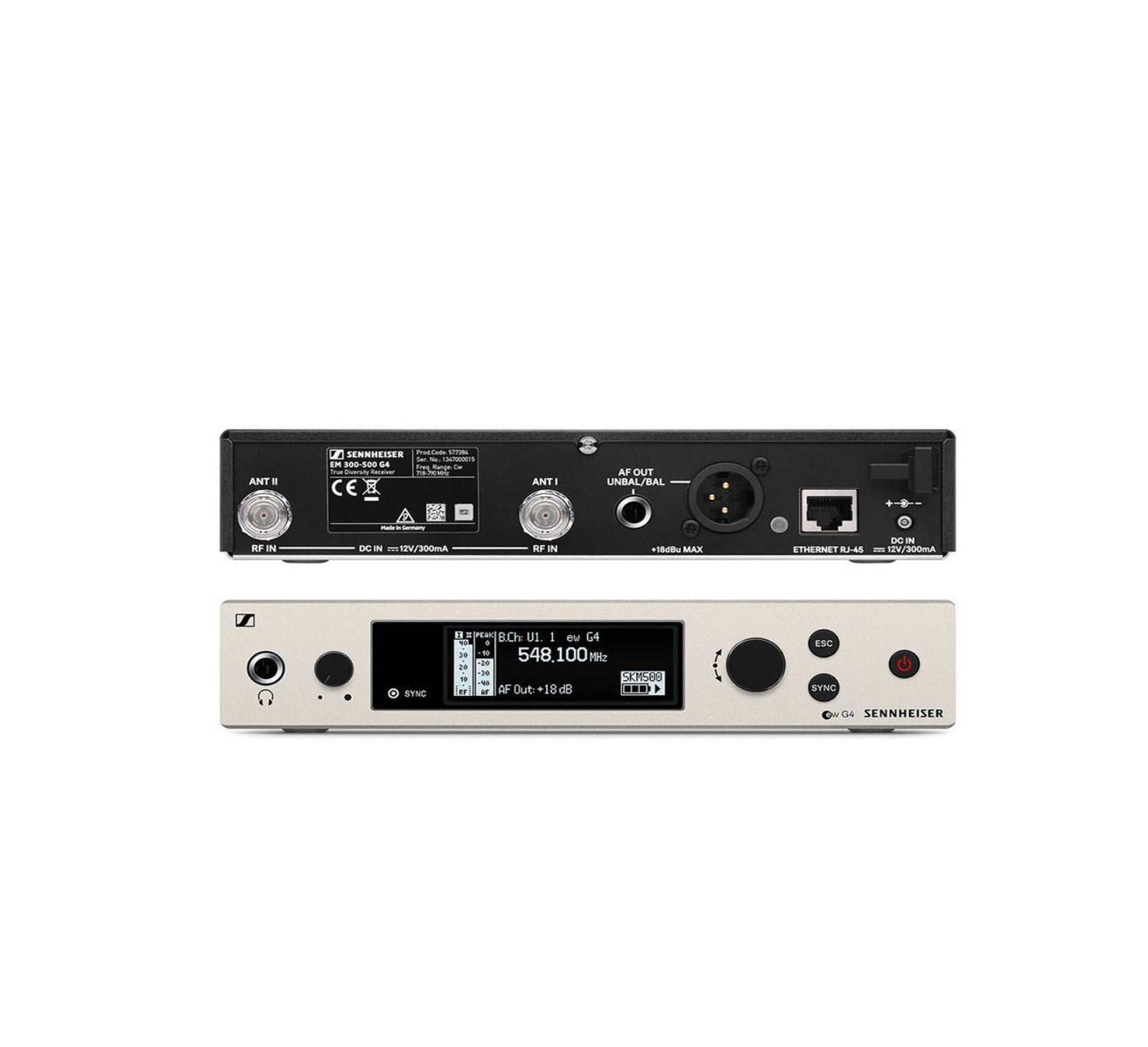

EM 300-500 G4
  • Frequency rangeAS: 520 - 558 MHzAw+: 470 - 558 MHzBw: 626 - 698 MHzCw: 718 - 790 MHzDw: 790 - 865 MHzGBw: 606 - 678 MHzGw: 558 - 626 MHzGw1: 558 - 608 MHzJB: 806 - 810 MHzK+: 925 - 937,5 MHz
  • DimensionsApprox. 202 x 212 x 43 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • WeightApprox. 980 g
  • Audio output6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
  • Signal-to-noise ratio≥ 115 dBA
  • Switching bandwidthup to 88 MHz
  • Peak deviation±48 kHz
  • Nominal deviation±24 kHz
  • ModulationWideband FM
  • Power supply12 V DC
  • Antenna connector2 BNC sockets
  • Current consumption350 mA
  • Adjacent channel rejectionTypically ≥ 75 dB
  • Intermodulation attenuationTypically ≥ 70 dB
  • Receiving frequencyMax. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • RF sensitivity< 2.5 μV for 52 dBA eff S/N
  • Squelch5 to 25 dBμV in steps of 2 dB
  • EqualizerPreset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
  • Temperature Range-10 °C to +55 °C
  • Receiver PrincipleTrue diversity
  • Blocking≥ 75 dB

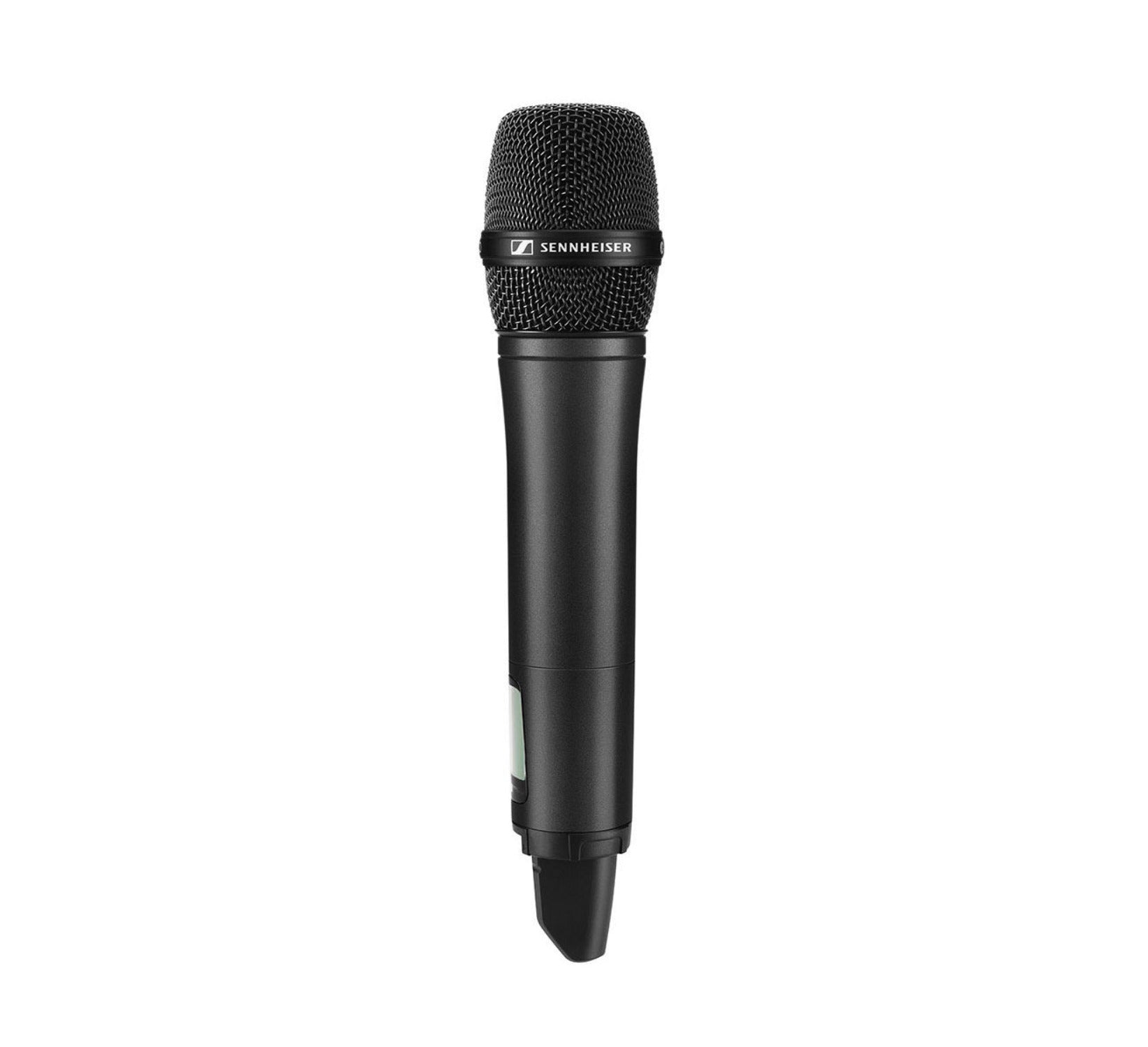

SKM 500 G4
  • DimensionsApprox. Ø 50 x 265 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • Weight(incl. batteries) approx. 450 g
  • Signal-to-noise ratio≥ 115 dBA
  • RF output powerswitchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
  • Switching bandwidthup to 88 MHz
  • Peak deviation±48 kHz
  • Nominal deviation±24 kHz
  • Operating timeTypically 8 h
  • ModulationWideband FM
  • Power supply2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumptionat nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
  • Powering3 V battery / 2.4 V rechargeable battery
  • Transmission frequencyMax. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • AF frequency response80 – 18,000 Hz
  • Temperature Range-10 °C to +55 °C
  • Frequency stability≤ ±15 ppm
MMK 965-1

Frequency response40 to 20,000 Hz

Max. sound pressure level144 dB

Transducer principleexternally polarized dual diaphragm condenser microphone

Weight162 g

Diameterof diaphragm: 2.54 cm (1")

Pick-up patterncardioid/supercardioid, switchable

Sensitivity in free field, no load (1kHz)7.0 mV/Pa

Equivalent noise level18 dB

Dynamic range126 dB(A)
