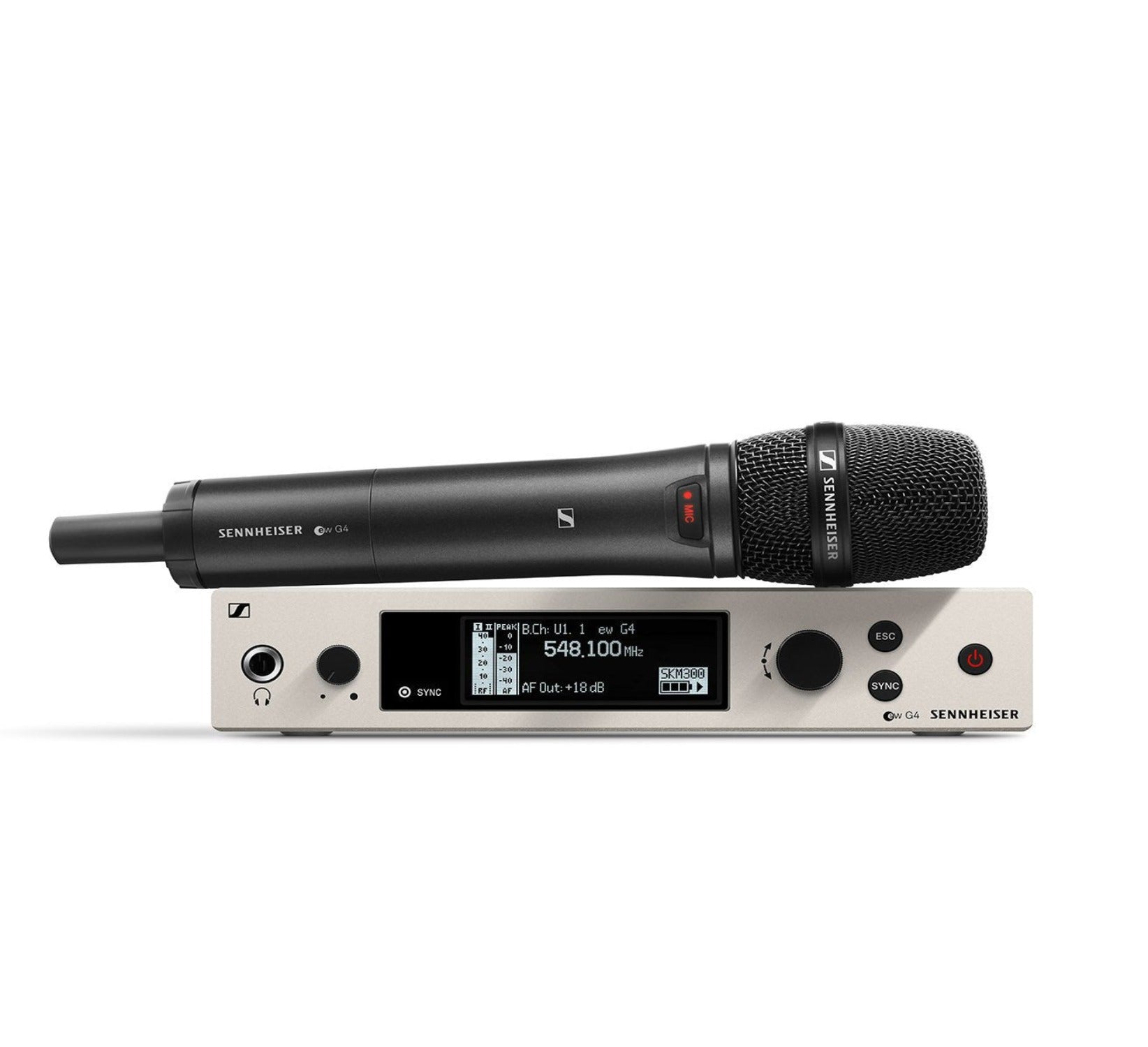

SENNHEISER EW 300 G4-865-S
SENNHEISER EW 300 G4-865-S
SENNHEISER EW 300 G4-865-S

SENNHEISER EW 300 G4-865-S

Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.
Moderators and presenters love working with G4. The aluminum housing of the handheld transmitter is not just robust but also lightweight for long speeches, whereas the noiseless mute switch ensures full control.

Enquire Now

Product details

More Information
  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100 meters / 330 feet
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter
Technical Specifications

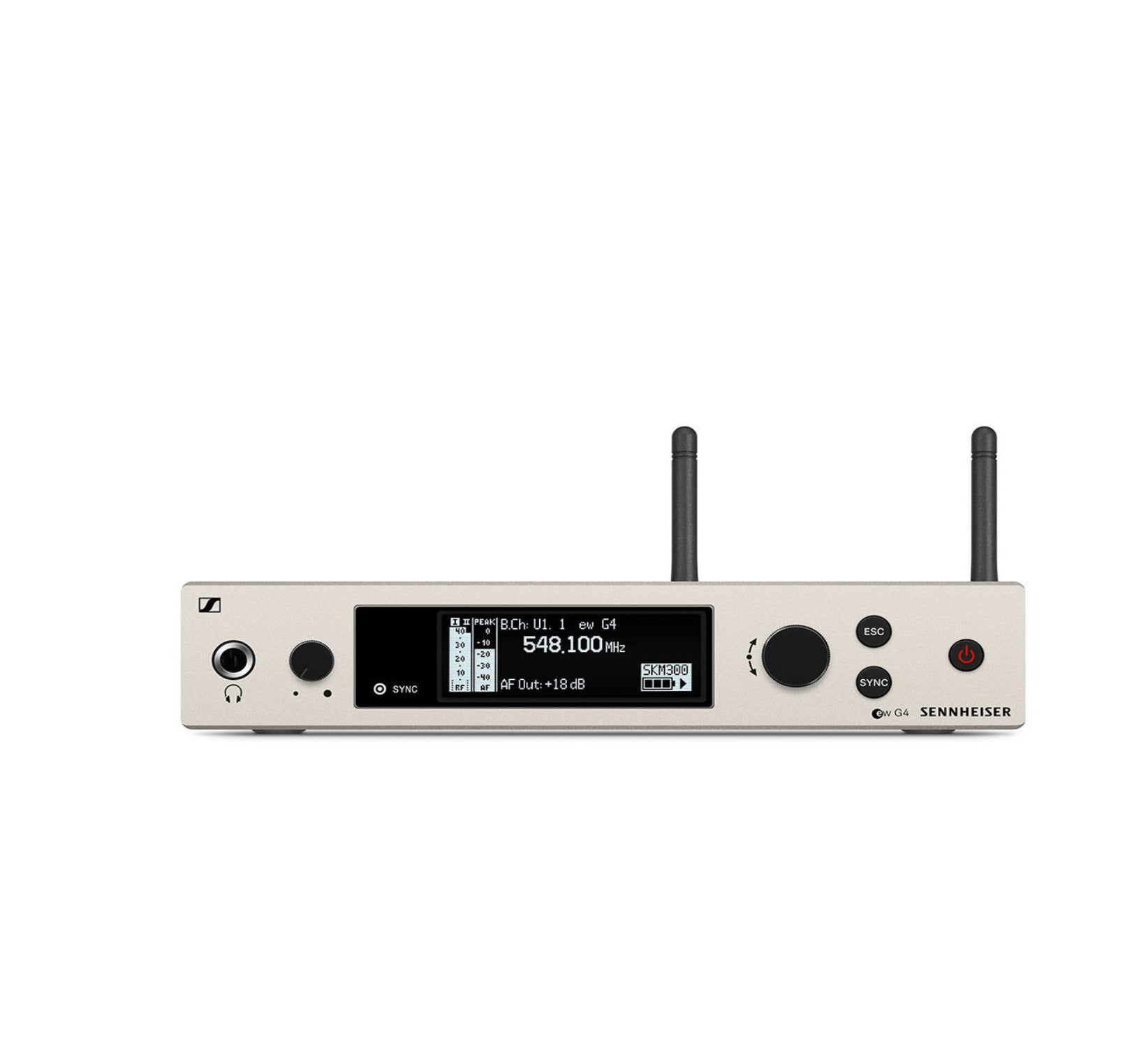

EM 300-500 G4
  • Frequency rangeAS: 520 - 558 MHzAw+: 470 - 558 MHzBw: 626 - 698 MHzCw: 718 - 790 MHzDw: 790 - 865 MHzGBw: 606 - 678 MHzGw: 558 - 626 MHzGw1: 558 - 608 MHzJB: 806 - 810 MHzK+: 925 - 937,5 MHz
  • DimensionsApprox. 202 x 212 x 43 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • WeightApprox. 980 g
  • Audio output6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
  • Signal-to-noise ratio≥ 115 dBA
  • Switching bandwidthup to 88 MHz
  • Peak deviation±48 kHz
  • Nominal deviation±24 kHz
  • ModulationWideband FM
  • Power supply12 V DC
  • Antenna connector2 BNC sockets
  • Current consumption350 mA
  • Adjacent channel rejectionTypically ≥ 75 dB
  • Intermodulation attenuationTypically ≥ 70 dB
  • Receiving frequencyMax. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • RF sensitivity< 2.5 μV for 52 dBA eff S/N
  • Squelch5 to 25 dBμV in steps of 2 dB
  • EqualizerPreset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
  • Temperature Range-10 °C to +55 °C
  • Receiver PrincipleTrue diversity
  • Blocking≥ 75 dB

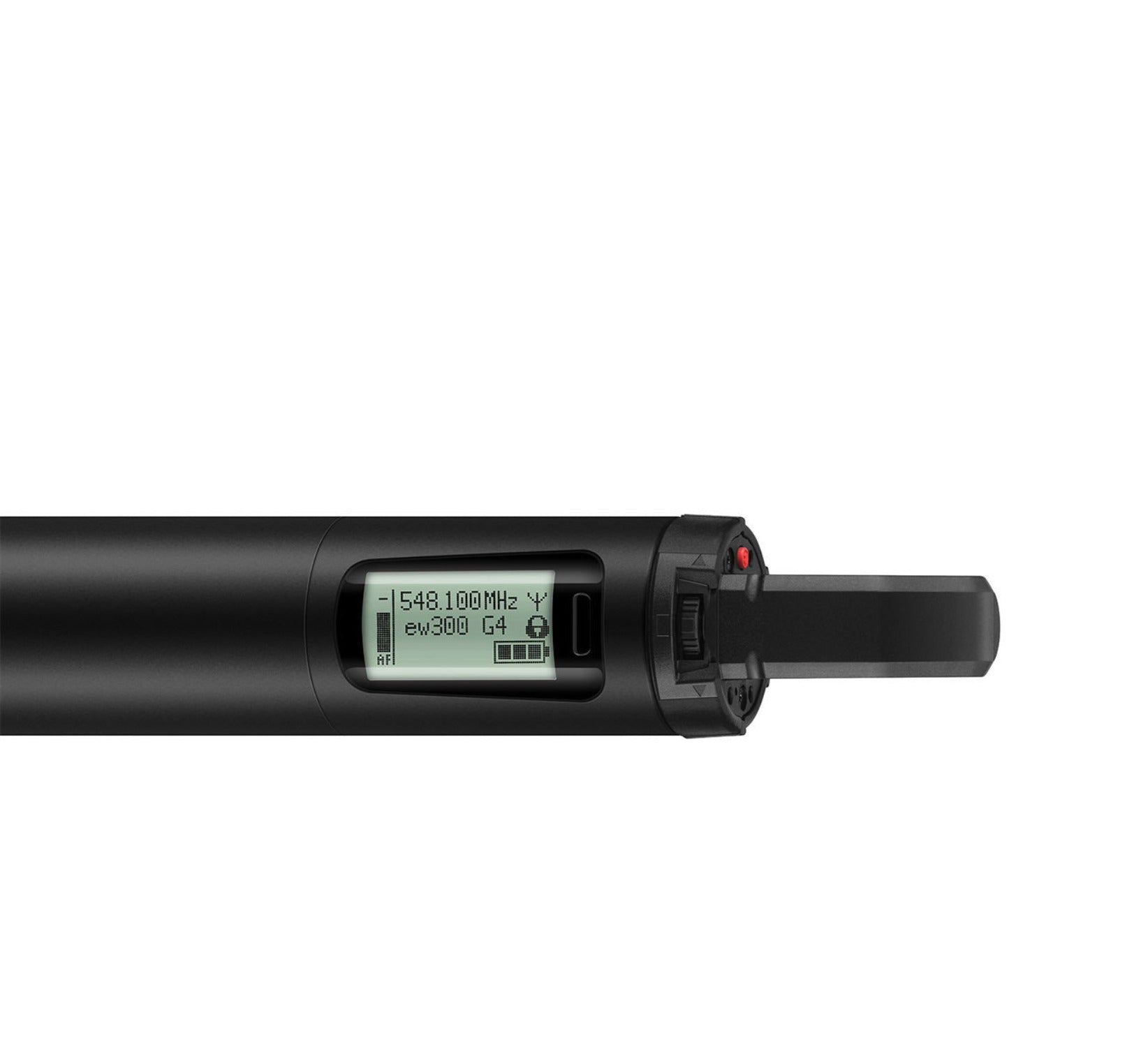

SKM 300 G4-S
  • DimensionsApprox. Ø 50 x 265 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • Weight(incl. batteries) approx. 450 g
  • Signal-to-noise ratio≥ 115 dBA
  • RF output powerswitchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
  • Switching bandwidthup to 88 MHz
  • Peak deviation±48 kHz
  • Nominal deviation±24 kHz
  • Operating timeTypically 8 h
  • ModulationWideband FM
  • Power supply2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumptionat nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
  • Powering3 V battery / 2.4 V rechargeable battery
  • Transmission frequencyMax. 3520 transmission frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • AF frequency response80 – 18,000 Hz
  • Temperature Range-10 °C to +55 °C
  • Frequency stability≤ ±15 ppm
