SENNHEISER EW 100 G4-ME4-GB Lavalier Set

SENNHEISER EW 100 G4-ME4-GB Lavalier Set

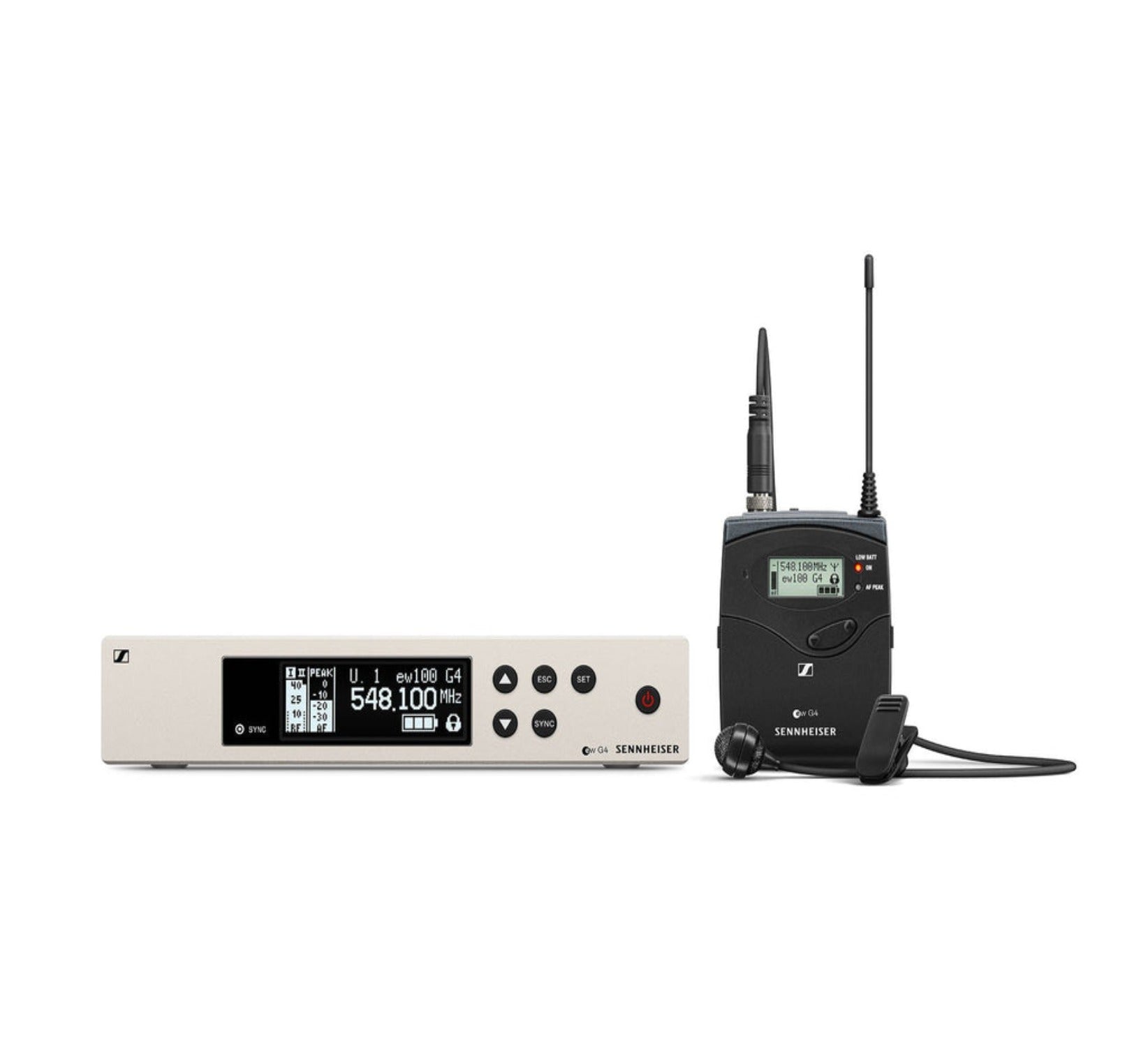

The Sennheiser EW100 G4-ME4-GB Lavalier Set Lapel System with ME4N Cardioid Microphone on channel 38 is a versatile wireless system.

With up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 4 (cardioid) with high speech intelligibility for easy hands-free operation on any stage.

Enquire Now

Product details

More Information
  • Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators
  • Robust bodypack transmitter and unobtrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility for daily use on stage
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations
Technical Specifications
EM 100 G4 - General
  • Modulation: Wideband FM
  • Frequency ranges
  • Receiving frequencies
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: True diversity
  • Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
  • Adjacent channel selection: Typically ≥ 65 dB
  • Intermodulation attenuation: Typically ≥ 65 dB
  • Blocking: ≥ 70 dB
  • Squelch
  • Pilot tone squelch: Can be switched off
  • Antenna inputs: 2 BNC sockets
  • Compander system: Sennheiser HDX
  • EQ presets (switchable, act on line and monitor outputs)
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF)
  • 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu
  • Setting range “AF Out”: 48 dB (3 dB steps)
  • Temperature range -10 °C to +55 °C
  • Power supply 12 V DC
  • Current consumption 300 mA

EM 100 G4 - Physical & Dimensions

  • Height: 43mmm
  • Width: 212mm
  • Depth: 190mm
  • Weight: 980g

SK 100 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
  • Transmission frequencies
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω: Max. 30 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time Typically: 8 h

SK 100 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

ME 4 - General

  • Transducer principle pre-polarized condensor microphone
  • Pick-up pattern cardioid
  • Sensitivity (free field, no load) (1 kHz) 40 mV/Pa
  • Max. SPL at 1 kHz 120 dB
  • Frequency response 50 to 18,000 Hz "Equivalent noise level A-weighted (DIN IEC 651)" 31 dB
  • Connector 3.5 mm jack
  • Cable length approx. 1.60 m
  • Supply voltage 7.5 V
