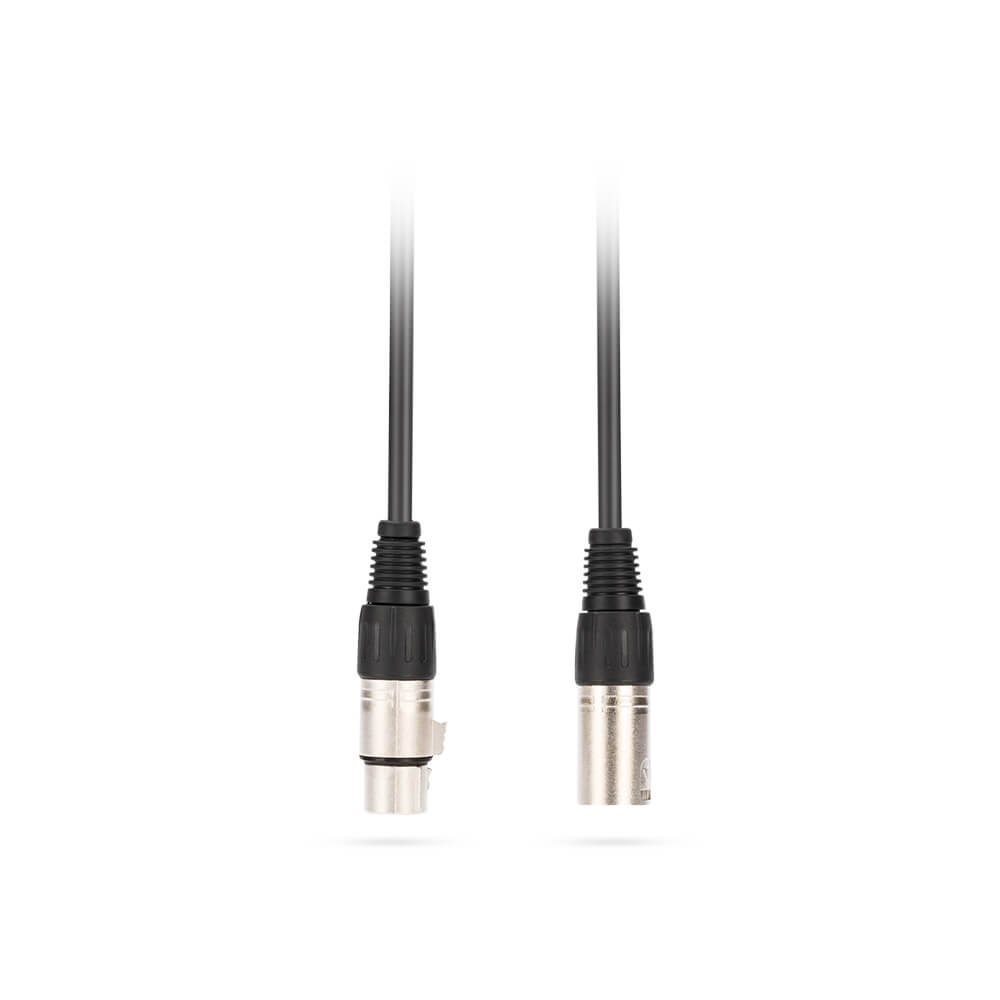

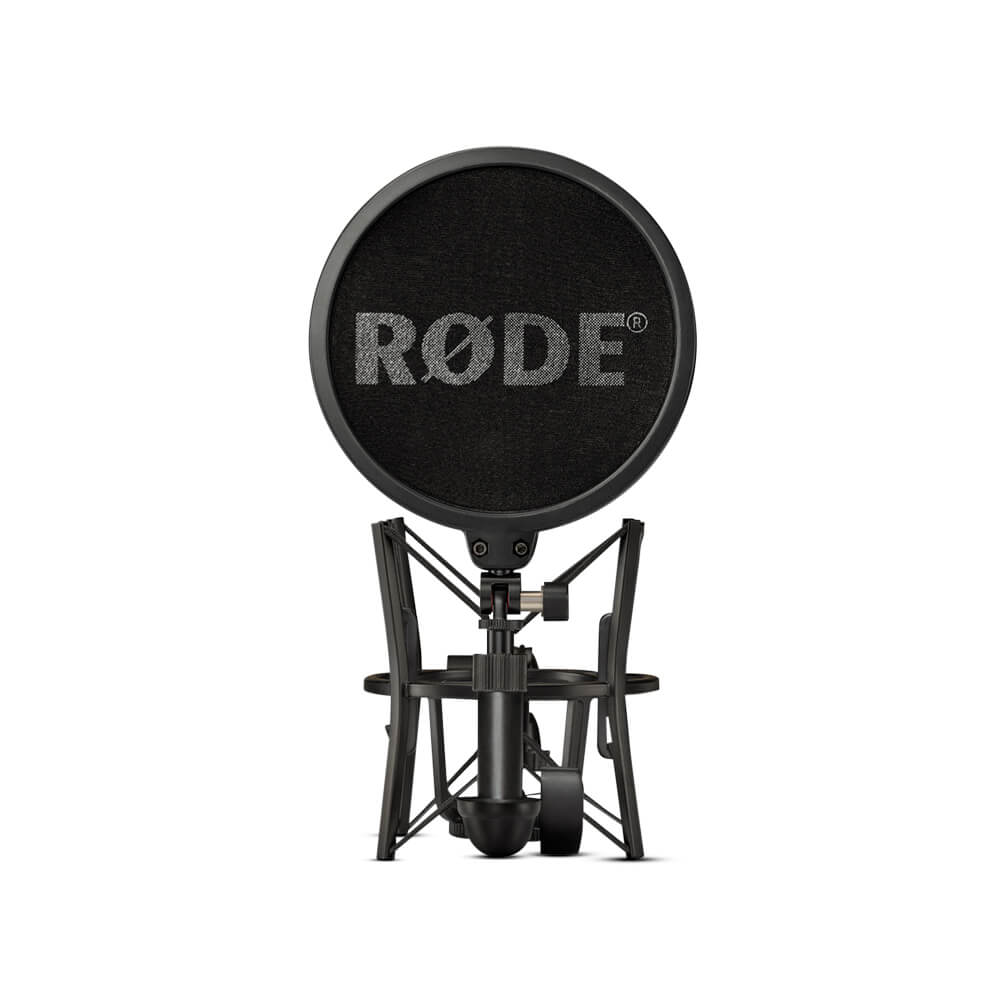

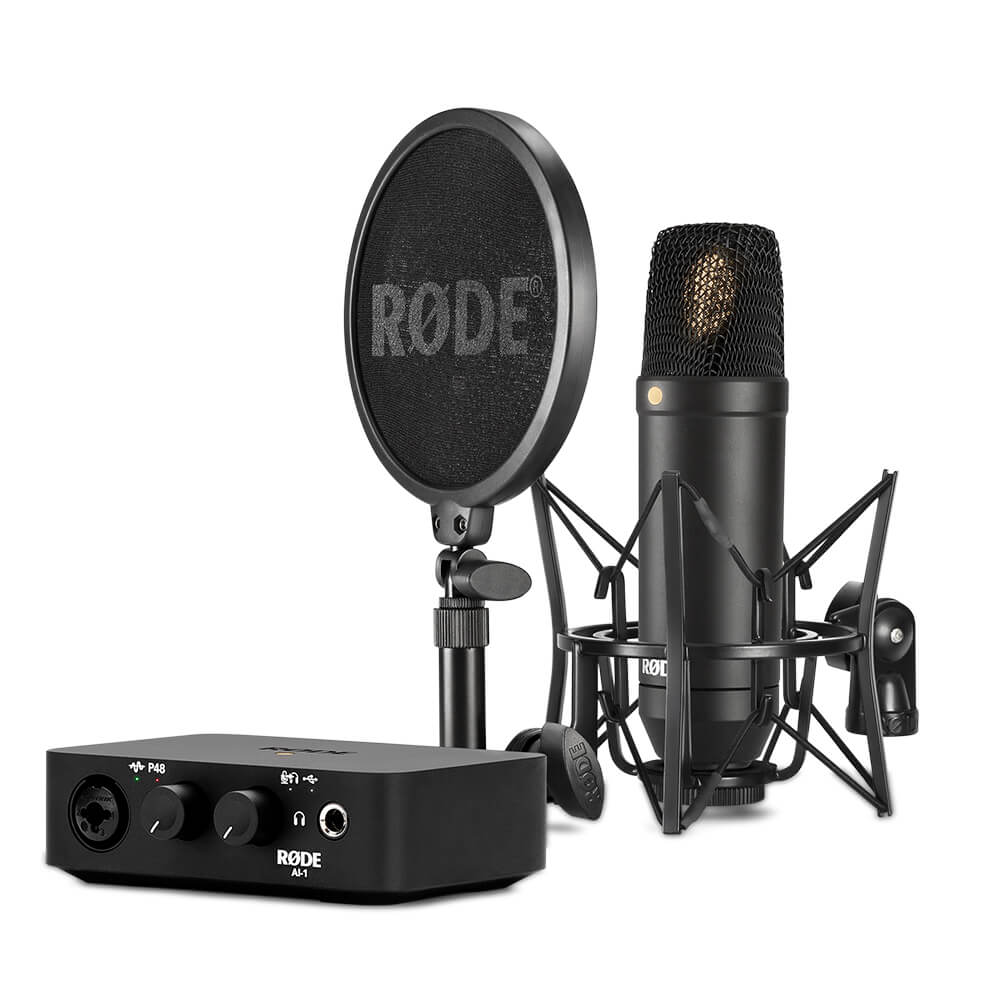

The RØDE Complete Studio Kit contains everything you need to make professional, studio-quality recordings at home. Featuring our AI-1 audio interface, peerless NT1 large-diaphragm condenser microphone, plus an SM6 shock mount and XLR cable, it’s the perfect first step into recording.
More Information
More Information
Technical Specification
Technical Specification

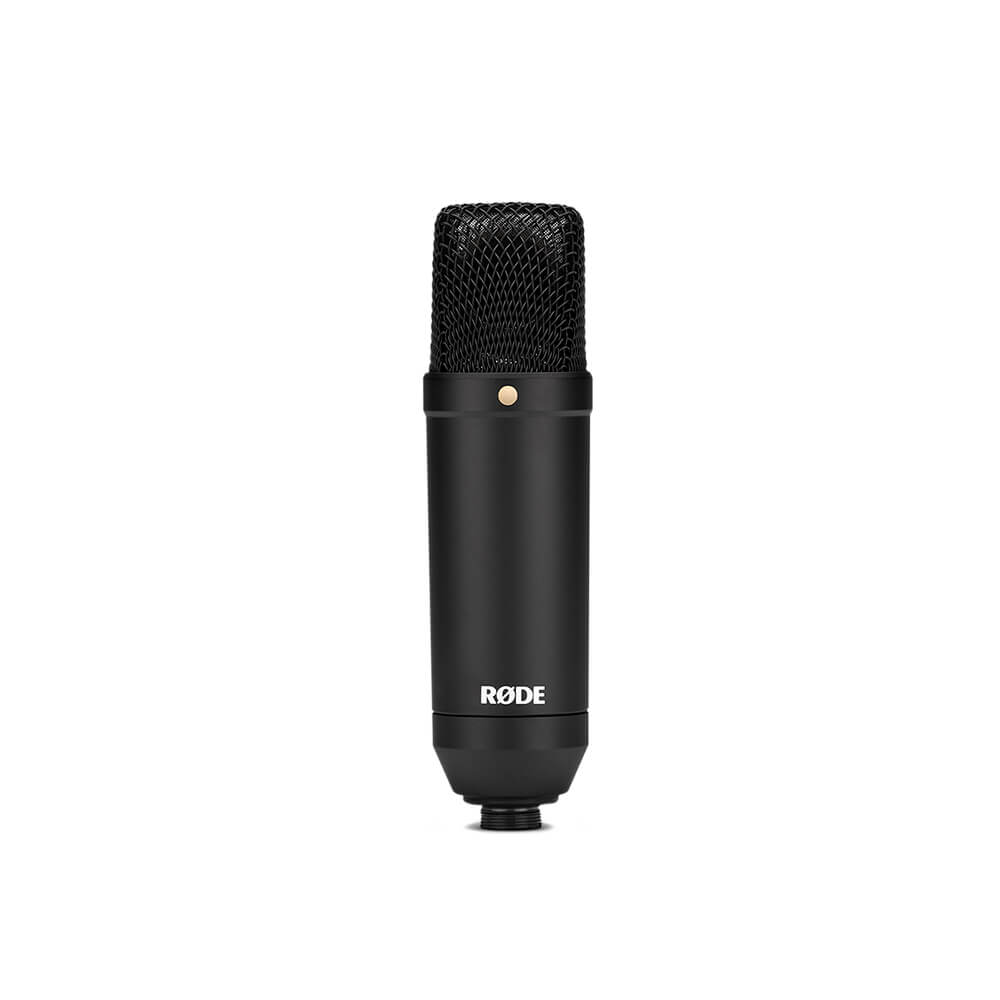

NT1 Specifications |
Output Connection |
3 Pin XLR. Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground) |
Acoustic Principle |
Pressure gradient |
Active Electronics |
JFET impedance converter with bipolar output buffer |
Directional Pattern |
Cardioid |
Frequency Range |
20Hz ~ 20kHz |
Output Impendence |
100Ω |
Equivalent Noise |
4.5 dBA SPL (as per IEC651) |
Maximum Output |
+8 dBu (1kHz, 1% THD into 1K Ω load) |
Sensitivity |
-29 dB re 1V/Pa (35mV @ 94dB SPL) ± 2dB @ 1kHz |
Dynamic Range |
128 dB SPL |
Maximum SPL |
132 dB SPL |
Signal-to-Noise Ratio |
90 dBA SPL (as per IEC651) |
Power Requirements |
24V phantom power 48V phantom power |
Net Weight (grams) |
395 |
Colour |
Black |
Diameter (millimetres) |
50 |
Length (millimetres) |
187 |

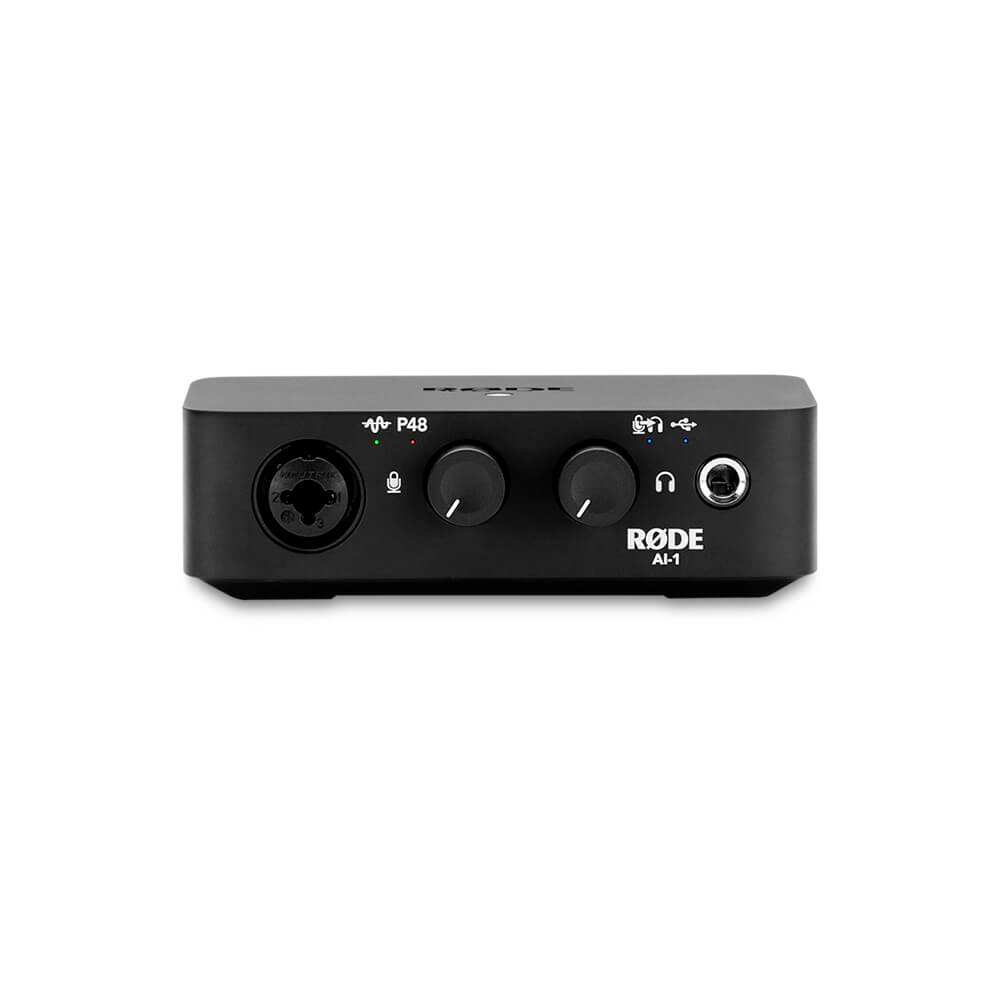

AI-1 Specifications |
Computer Connectivity |
USB |
Form Factor |
Desktop |
Simultaneous I/O |
1 x 2 |
Number of Preamps |
1 |
Bit Depth |
24-bit |
Sample Rates |
44.1 kHz 48 kHz 88.2 kHz 96kHz |
Analog Inputs |
1 x Neutrik XLR-1/4” combo |
Analog Outputs |
2 x 1/4” (impedance balanced) 1 x 1/4” (headphones) |
Direct Monitor |
Yes |
USB |
1 x USB Type C |
Bus Powered |
Yes |
OS Requirements |
Mac OS 10.10 or later Windows 7 or later |
Power |
USB bus-powered |
Net Weight (grams) |
560 |
Height x Width x Depth (millimetres) |
38 x 124 x 100 |
