Product details

More Information

2100 W

Fast Transients. Zero Compromise.

Powered by a 2100W onboard Class-D amplifier, EVOX JMIX9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.

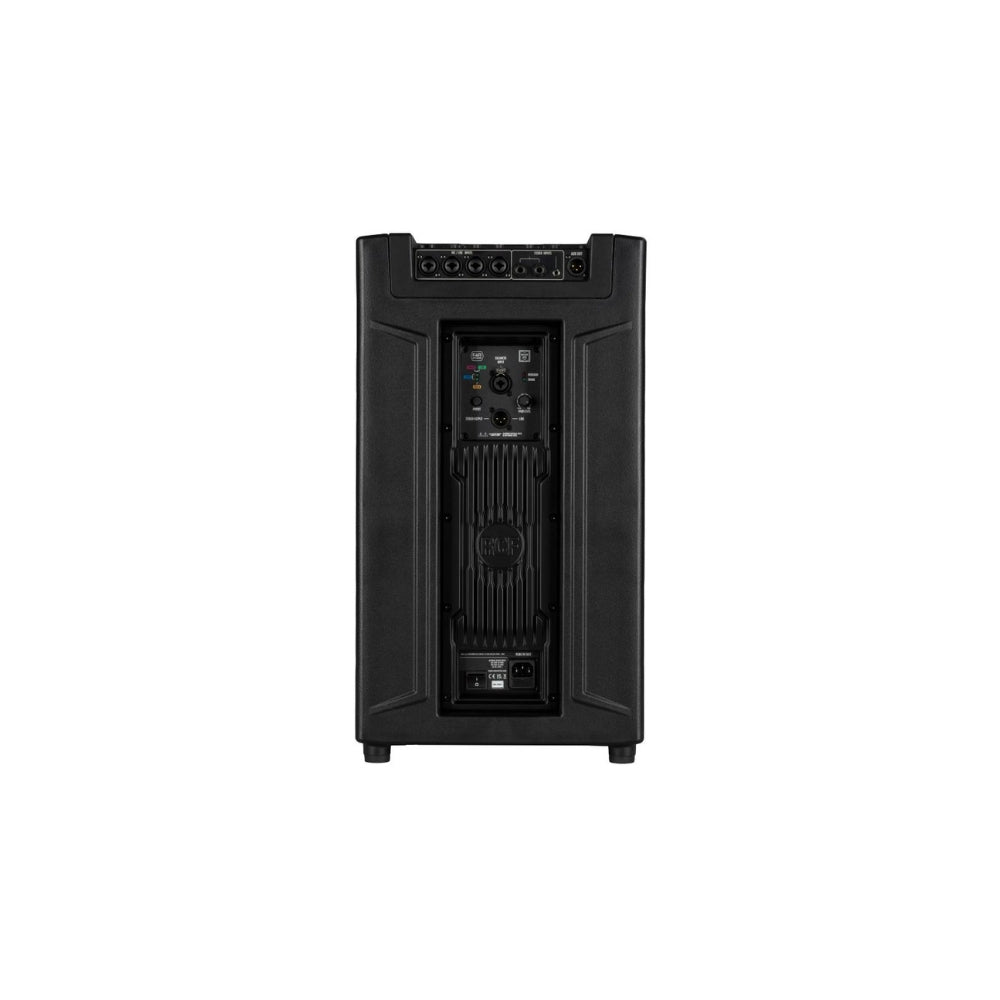

Highly energy-efficient, the JMIX9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. JMIX9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.

Variable Height Configuration

Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family’s sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.

Quick Setup. Ready to Play.

Available in black or white, EVOX JMIX9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup. Height is configurable: mount the column at standard height with the full-length pole, place it at zero offset directly on the bass enclosure, or raise it with full- or half-length pole extensions.



Ready for the Road

Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility.

Technical Specifications
  • 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
  • 130 dB Max SPL
  • 2100 W Class-D Amplifier - Built-In DSP
  • 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
  • 6 × 3” Full-Range Neo Transducers
  • 12” High-Power Woofer
  • Enhanced Coverage And Clarity
  • Sleek Composite Cabinet With Aluminum Stand Mount
  • Top Speaker Padded Carrying Bag Included

Acoustical specificationsFrequency Response40 Hz - 20000 HzMax SPL @ 1m130 dBHorizontal coverage angle120°Vertical coverage angle40°TransducersCompression Driver1 x 0.75'' neo, 1.75'' v.cFullrange6 x 3.0'' neo, 1.0'' v.cWoofer1 x 12'', 2.5'' v.cInput/Output sectionInput signalbal/unbalInput connectorsCombo XLR/JackOutput connectorsXLRInput sensitivity-2 dBu/+4 dBuProcessor sectionCrossover Frequencies200 Hz/1800 HzProtectionsThermal, RMSLimiterSoft LimiterControlsDigital mixer controlled by touch screen and encodersPower sectionTotal Power2100 W PeakHigh frequencies700 W PeakLow frequencies1400 W PeakCoolingConvectionConnectionsVDEElectronic specificationsFrequency Response20 Hz - 20 HzTHD+N, 20dB gain, 0dBu out0.003% A-WeightedProcessingProcessing Channels8Signal Processing32 BitA/D-D/A conversion24 Bit @ 48.0 kHzDynamic range114InputsMic4Remote Controlled Storable GainYesGain Range0 dB - 36 dBInput Noise Level-114 dBu A-WeightedMic Inputs Impedance3 kohmLow Cut20 Hz - 400 HzPhantom Power +48VYesMono Line4Gain Selection0 dB - 36 dBLine Input Impedance10 kohmA/D Dynamic range120 dBStereo Line2Gain Selection0 dB - 0 dBStereo Line Input Impedance (kOhm)24 kohmOutputsMain MIX1FX Send1AUX Send1AUX Output1Phones1Outputs specificationsMain Out Impedance150 ohmMain Out Level20 dBuAux Out Impedance (ohm)150 ohmAux Out Level20 dBuPhones Out impedance (ohm)100 ohmPhones Out Level20 dBmD/A Dynamic Range118 dBCompressorsRCF CompressorsCompressors on MIC/LINE CH1 to CH4 InputsEQInput Channels EQ1 Semi Parametric / 2 ShelvingDescription3 Band EQ: High and Low band shelving, MID band peak on INPUT8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.Auxiliary sendsAUX1 PRE/POSTFX POST1Internal EffectsSend Effects1Mastering processorsMain OUT processors1Main OUT typeMIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.Electrical specificationsPower supplyInternalStandard complianceSafety agencyCE compliantPhysical specificationsCabinet/Case MaterialPP CompositeHandles1 TopPole mount/CapQuick-fit socketGrilleSteelColorBlack, White - RAL 9003Size / WeightHeight2080 mm / 81.89 inchesWidth350 mm / 13.78 inchesDepth460 mm / 18.11 inchesWeight28.8 kg / 63.49 lbsShipping informationPackage Height676 mm / 26.61 inchesPackage Width451 mm / 17.76 inchesPackage Depth581 mm / 22.87 inchesPackage Weight32.5 kg / 71.65 lbs
