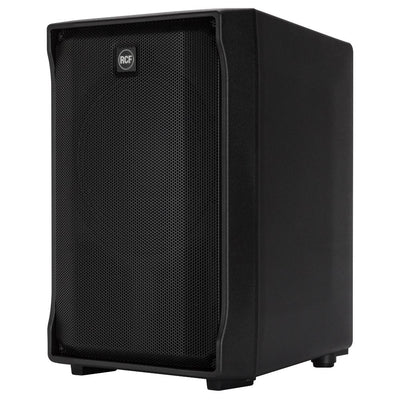

RCF EVOX JMIX8

RCF EVOX JMIX8

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.

More Information

  • 128 dB Max SPL
  • 1400 Watt 2-way power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE
  • 12" woofer, high power 2.5" voice coil
  • 8 x 2" ultra compact fullrange 1.0" voice coil
  • 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
  • 24,4/53.8 kg/lbs

Technical Specification

ACOUSTICAL SPECIFICATIONS
Frequency Response:
40 Hz ÷ 20000 Hz
Max SPL @ 1m:
128 dB
Horizontal coverage angle:
120°
Vertical coverage angle:
30°
TRANSDUCERS
Fullrange:
8 x 2.0'', 1.0'' v.c
Woofer:
12'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies:
220 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Boost, Mic/Line
POWER SECTION
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
VDE
ELECTRONIC SPECIFICATIONS
Frequency Response:
20 Hz ÷ 20 Hz
THD+N, 20dB gain, 0dBu out
0.004% A-Weighted
PROCESSING
Processing Channels:
8
Signal Processing:
32 Bit Floating Point
A/D-D/A conversion:
24 Bit @ 48.0 kHz
Dynamic range:
108
INPUTS
Mic:
4
Remote Controlled Storable Gain:
Yes
Gain Range:
0 dB ÷ 45 dB
Input Noise Level:
-114 dBu A-Weighted
Mic Inputs Impedance:
3 kohm
Low Cut:
20 Hz ÷ 1000 Hz
Phantom Power +48V:
Yes
Mono Line:
4
Gain Selection:
0 dB ÷ 45 dB
Line Input Impedance:
11 kohm
HI-Z Line Inputs:
1
HI-Z Line Inputs Impedance (Mohm):
1 Mohm
A/D Dynamic range:
108 dB
Stereo Line:
2
Gain Selection:
0 dB ÷ 45 dB
Stereo Line Input Impedance (kOhm)
11 kohm
OUTPUTS
AUX Send:
1
AUX Output:
1
OUTPUTS SPECIFICATIONS
Main Out Impedance:
150 ohm
Main Out Level:
19 dBu
Aux Out Impedance (ohm):
150 ohm
Aux Out Level:
19 dBu
D/A Dynamic Range:
108 dB
COMPRESSORS
RCF Compressors:
4 mono (6 preset)
EQ
Input Channels EQ:
1 Semi Parametric / 2 Shelving
Description:
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency
Graphic 7 Band EQ on Main Mix and AUX send.
AUXILIARY SENDS
AUX:
1 PRE/POST
FX POST:
1
INTERNAL EFFECTS
Send Effects:
1
MultiFX Insert Effects:
1
MASTERING PROCESSORS
Main OUT processors:
1
USB AUDIO
Play trk:
2
OTHER FEATURES
Footswitch:
Yes
ELECTRICAL SPECIFICATIONS
Power supply:
Internal
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
PP Composite
Handles:
1 Top
Grille:
Steel
Color:
Black, White
SIZE
Height:
623 mm / 24.53 inches
Width:
400 mm / 15.75 inches
Depth:
460 mm / 18.11 inches
Weight:
22.2 kg / 48.94 lbs
SHIPPING INFORMATION
Package Height:
676 mm / 26.61 inches
Package Width:
451 mm / 17.76 inches
Package Depth:
581 mm / 22.87 inches
Package Weight:
29 kg / 63.93 lbs
