  • 700 W power handling (RMS)
  • 138 dB max SPL
  • 48 ÷ 20000 Hz frequency range
  • 100° x 50° constant directivity coverage angle
  • 1 x 15" high power neodymium woofer
  • 1 x 4.0" v.c. neodymium compression driver
  • High quality birch plywood cabinet
  • Steel front grille with clothing

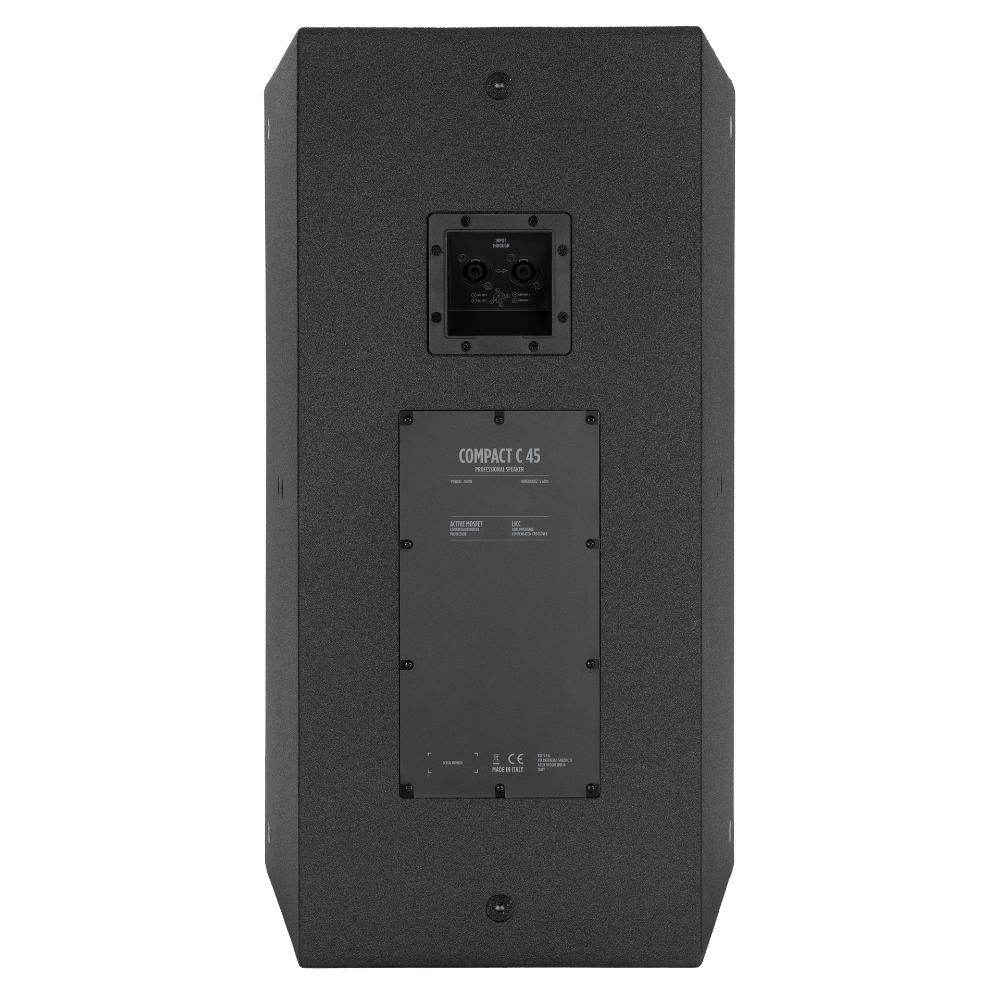

  • Installation points available on top, bottom, rear and side panels
  • SPEAKON in/out connectors
Technical Specifications

Acoustical Specifications

Frequency Response (-10 dB) - 48 Hz – 20,000 Hz

Max SPL @ 1 m - 138 dB

Horizontal Coverage Angle - 100°

Vertical Coverage Angle - 50°

Directivity Index (Q) - 10

System Sensitivity - 98 dB

Power Section

Amplification - Full Range

Nominal Impedance - 8 Ω

Power Handling - 700 W RMS

Peak Power Handling - 2800 W Peak

Protections - Dynamic Active MOSFET

Crossover Frequencies - 1100 Hz

Recommended Amplifiers - XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504

Transducers

Compression Driver - 1 × 1.4" neo, 4.0" v.c

Woofer - 1 × 15" neo, 4.0" v.c

Input / Output Section

Input Connectors - Speakon

Output Connectors - Speakon

Standard Compliance

IP Protection Grade - IP 21C

Safety Agency - CE Compliant

EN54-24 Certified - Yes

CPR Number - 0068-CPR-234/2025

Physical Specifications

Cabinet / Case Material - Birch Plywood

Hardware - 4 × M8, 14 × M10

Grille - Steel with Cloth

Color - Black (RAL 9005)

Size / Weight

Height - 705 mm / 27.76 in

Width - 418.8 mm / 16.49 in

Depth - 460 mm / 18.11 in

Weight - 32.5 kg / 71.65 lb
