QSC SPA 4-60

QSC SPA 4-60

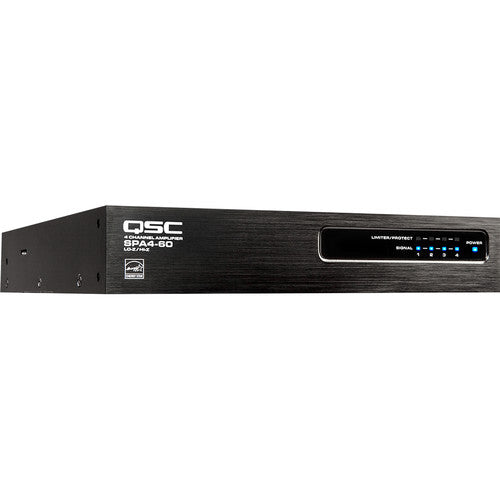

The highly flexible QSC SPA4-60 4-Channel Power Amplifier is an advanced Class-D amplifier with Energy Star rated efficiency well suited for smaller installations including meeting rooms or BGM zones. The convection cooled amplifier is designed to conserve energy. An auto-ramp circuit ensures quiet and fast power up from standby when a signal is present and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.

More Information

  • Provides up to 60W per channel into Low-Z loads at 4 and 8 Ohms
  • Energy Star qualified SPA Series employ an efficient class-D design to conserve energy and reduce operational cost
  • Provides up to 250W by bridging the output
  • Rack-mountable 1 RU, half-rack width enclosure—the SPA Series can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under table and wall mounting

Technical Specification



SPECIFICATIONS SPA2-60 SPA4-60 SPA2-200 SPA4-100
Stereo Mode Watts Per Channel
8 Ω dynamic, both channels driven 60 W 60 W 200 W 100 W
4 Ω dynamic, both channels driven 60 W 60 W 200 W 100 W
Bridged Mode Watts per channel
8 Ω & 4 Ω 200 W 100 W continuous 400 W 200 W
70 V & 100 V 250 W 125 W 350 W 175 W*
Signal to Noise (A weighted, 20 Hz-20 kHz) >100 dB >100 dB >100 dB >100 dB
Input Sensitivity 1.23 Vrms (+4 dBu) 1.23 Vrms (+4 dBu) 1.23 Vrms (+4 dBu) 1.23 Vrms (+4 dBu)
Maximum Voltage Gain 25.0 dB 25.0 dB 25.0 dB 25.0 dB
Ouput Circuitry Class D Class D Class D Class D
Frequency Response (20 Hz - 20 kHz) Frequency Response (20 Hz - 20 kHz)
Input Impedance >10 kΩ (balanced), >10 kΩ (unbalanced)
Maximum Input Level  12.3V (+24 dBu)
Highpass Filter Switchable 80 Hz when Bridged in 70V & 100V

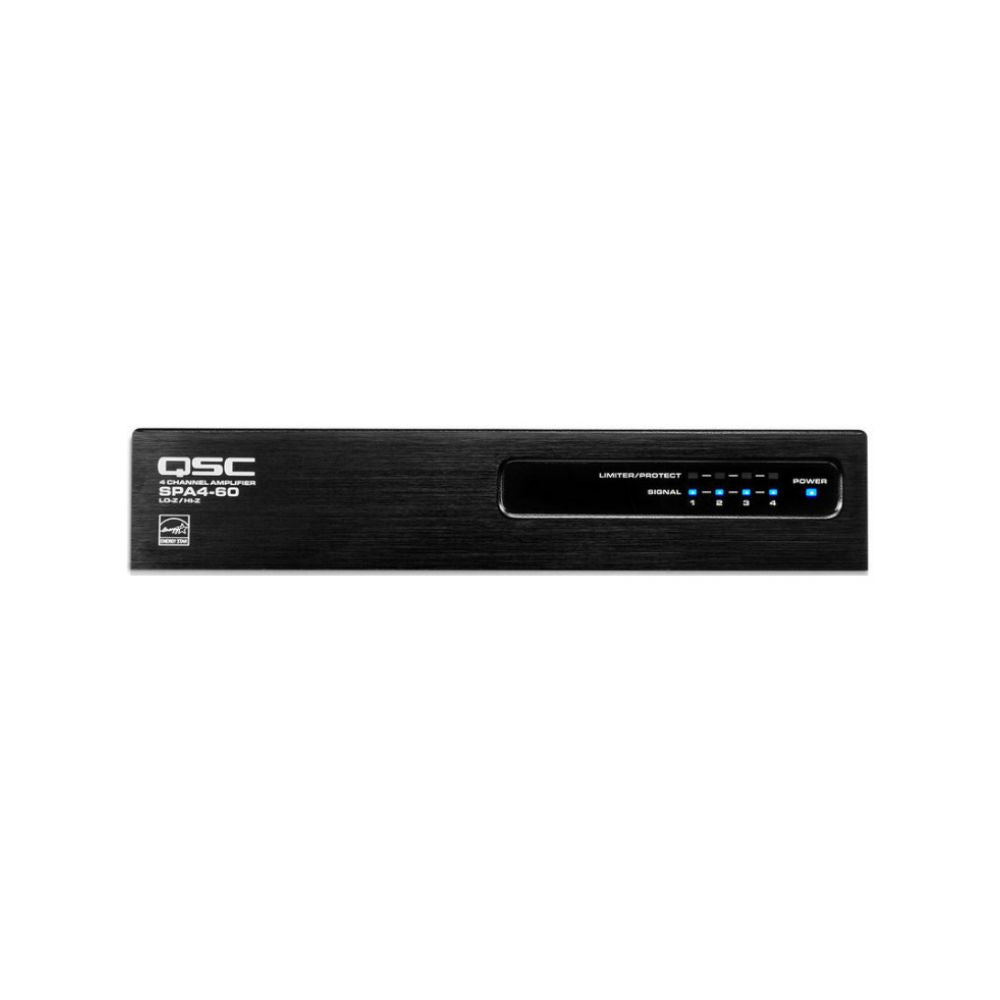

Front Panel Indicators Power, per channel Signal, per channel Protect/Limit
Controls 4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair
Dimensions (HWD) inches 1.7 x 8.7 x 9.5 / 1RU
Dimensions (HWD) mm 43 x 220 x 241 / 1RU
Weight (Net) 3.5 lb / 1.6 kg 3.5 lb / 1.6 kg 4.0 lb / 1.4 kg 4.0 lb / 1.4 kg
Weight (Shipping) 6 lb / 2.3 kg 6 lb / 2.3 kg 6.5 lb / 2.5 kg 6.5 lb / 2.5 kg
Agency Approvals UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit
Carton Contents Power cable, quick start guide, connector kit, rack mount ears, mounting brackets
