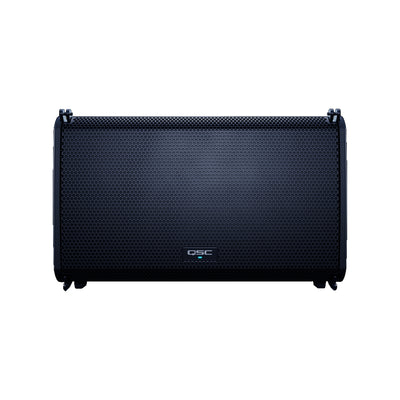

The LA112 is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package.
More Information
Driven by an efficient, 2,400W Class D amplifier with Power Factor Correction and low AC consumption
12-inch neodymium LF driver and 1.75-inch HF compression driver yield an impressive 58Hz–20kHz frequency response
Delivers a high, undistorted 136dB maximum peak SPL
LEAF (Length Equalized Acoustic Flare) waveguide ensures uniform 90° x 15° coverage with exceptional throw
ALP (Acoustic Linear Phase) design delivers outstanding coherence between QSC speakers deployed in the same audio system
Dante networking supplies lock-tight interoperability with compatible equipment, including integration into the Q-Sys ecosystem
RapidDeploy rigging technology guarantees fast, easy deployment — no additional tools or hardware required
Conforms to OSHA guidelines for single-operator installation
AWARE (Automatic Wireless Array Recognition) system negates the need for complicated line-array tuning and adjustments

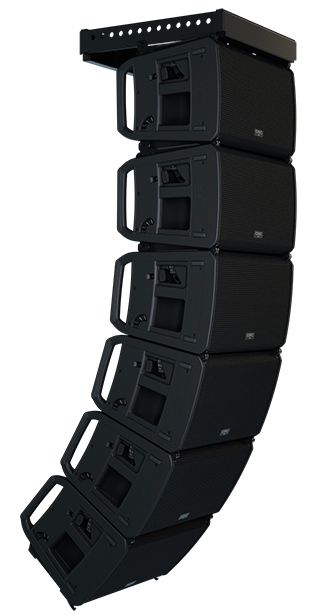

Fly up to 6 LA112s with an array frame, ground stack up to 3 LA112s over an LS118 sub, or mount up to 2 LA112s on a stand or pole
SysNav app enables you to design, configure, control, and monitor your entire array
Universal power supply, 100–240 VAC, 50–60Hz
Ideal for portable applications, rental companies, and small- to medium-sized installations
Technical Specification
Powered:Yes
Power Configuration:Bi-amped
LF Driver Size:12" woofer
HF Driver Size:2 x 1.75" compression driver
LF Driver Power Amp:1600W Class D
HF Driver Power Amp:800W Class D
Total Power:2400W Peak
Inputs:1 x XLR"
Outputs:1 x XLR" (thru)
Data I/O:2 x EtherCON (Dante, QSC SysNavTM In/Thru)
