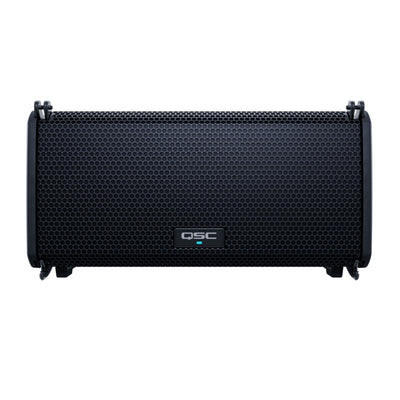

QSC LA 108

QSC LA 108

The LA108 is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package.

More Information

  • Purpose-designed, lightweight neodymium 8-inch (203 mm) woofer and 1.75-inch (44 mm) HF compression driver, delivering high, undistorted 134 dB max. peak SPL.
  • Energy efficient, 1300 W peak power Class D amplifier module with Power Factor Correction and extremely low AC consumption.
  • Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (100° H x 15° V) and exceptional throw.
  • Intuitive, single operator QSC RapidDeploy™ rigging technology with short, medium and long-throw options, guarantees fast deployment without tools or additional hardware.
  • Onboard QSC AWARE™ (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker’s Rear User Interface (RUI) or QSC System Navigator™ App.
  • QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space.
  • Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue.
  • Network solution includes digital audio-over-IP (Dante®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.

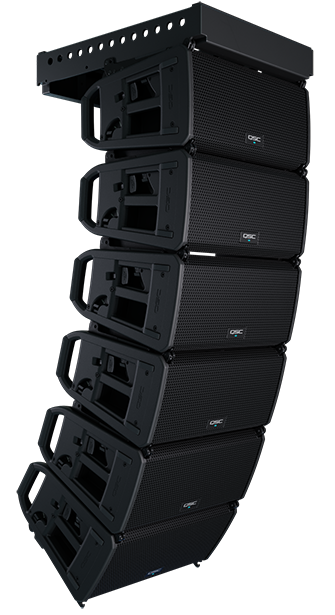

  • Flown (up to six units with array frame), ground-stacked (up to four LA108 over a single LS118 subwoofer) or loudspeaker stand/pole mounting (up to three LA108) deployment options.
  • Industry-best global 6-Year Extended Warranty with product registration.

Technical Specification

  • Powered:Yes
  • Power Configuration:Bi-amped
  • LF Driver Size:8" woofer
  • HF Driver Size:1.75" compression driver
  • LF Driver Power Amp:1000W Class D
  • HF Driver Power Amp:300W Class D
  • Total Power:1300W Peak
  • Inputs:1 x XLR"
  • Outputs:1 x XLR" (thru)
  • Data I/O:2 x EtherCON (Dante, QSC SysNavTM In/Thru))
  • Frequency Range:57Hz-20khz (-10 dB)
  • Frequency Response:62Hz-20kHz (-6dB)
  • Maximum Peak SPL:134 dB SPL @ 1m
  • Horizontal Coverage Angle:100 Degrees
  • Vertical Coverage Angle:15 Degrees
  • Enclosure Material:Impact resistant ABS
  • Mounting Options:Pole, Floor, Fly
  • Power Source:PowerCON cable
  • Height:10.7"
  • Width:20.4"
  • Depth:14.7"
  • Weight:30.1 lbs.
