QSC ISA 300Ti Power Amp Features:

  • Low-impedance and isolated 25, 70, and 100 volt outputs for distributed audio systems
  • Rear panel gain controls with 2dB detents for quick and repeatable settings

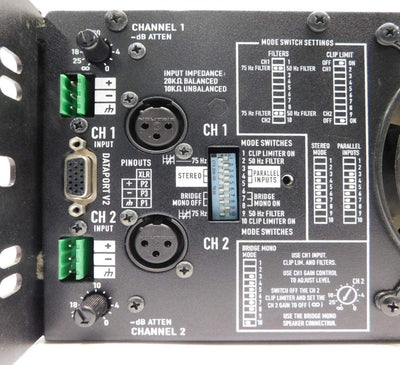

  • XLR and detachable Euro style input connectors
  • DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and DSP-3/DSP-4 (with external power supply)
  • Independent defeatable clip limiters for reduced distortion
  • 50Hz or 75Hz selectable highpass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material
  • Front panel indicators include power, signal, and clip
  • Covered barrier strip output connectors for safety agency compliance
  • Automatic variable-speed fan for quiet normal operation with maximum cooling on demand
  • Rear-to-front air flow keeps equipment racks cool
  • Stereo, Bridge, or Parallel operating modes
  • Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
  • 3-year warranty plus optional 3-year extended service contract
  • 25, 70, 100 volt, and low-impedance outputs available simultaneously

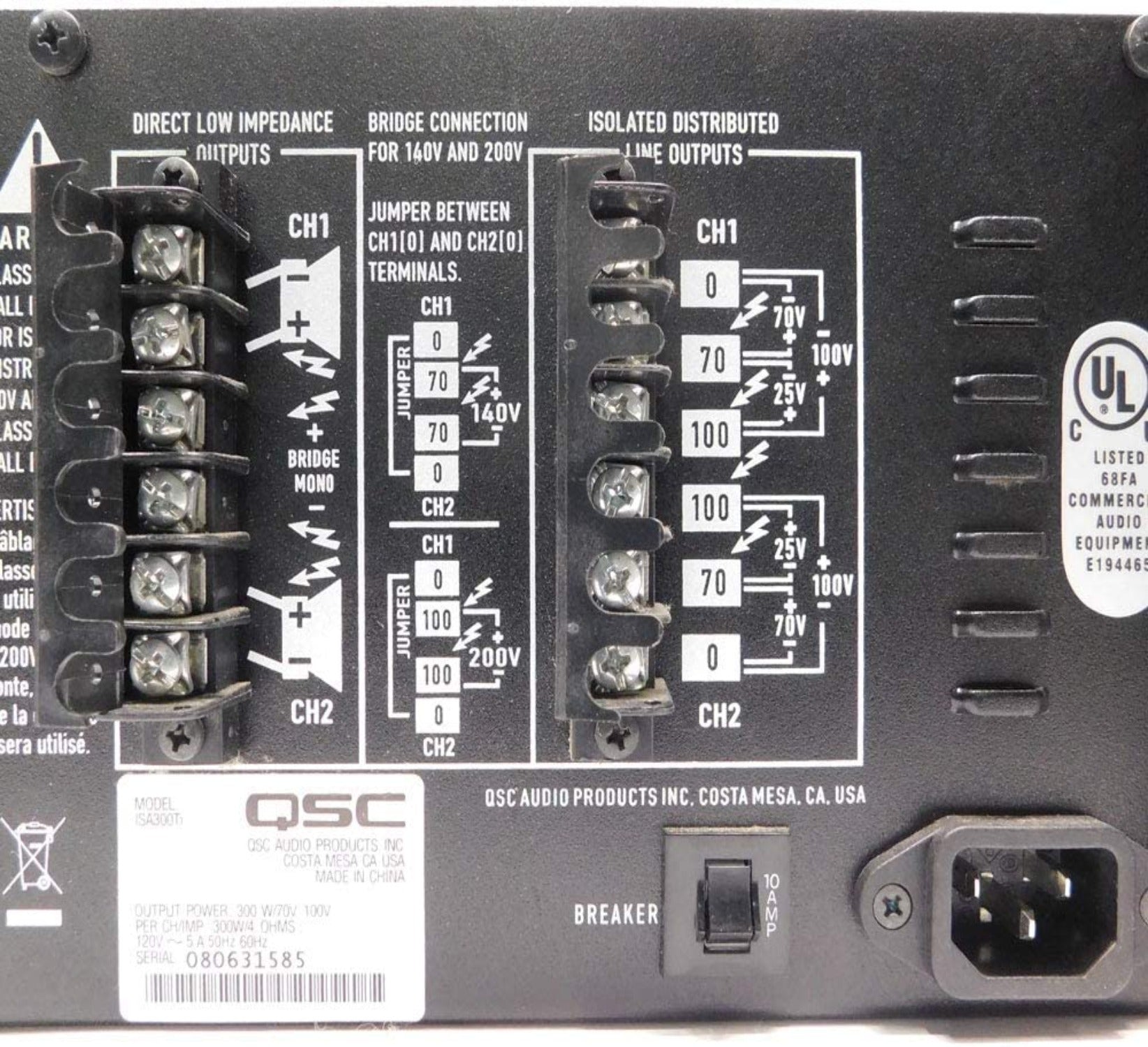

  • Simple barrier strip connection determines output mode

Premium QSC sound with the ISA 300Ti!

Technical Specifications

Tech Specs

  • Number of Channels:2
  • Power Class:Class H
  • Watts/Side @ 8 ohms:185W
  • Watts/Side @ 4 ohms:280W
  • Watts/Side @ 2 ohms:430W
  • Watts Bridged:830W @4 ohms
  • 70V/100V Output:300W per channel
  • Inputs:2 x XLR, 2 x Euroblock
  • Outputs:Barrier Strip
  • Cooling System:Automatic variable-speed fan for quiet normal operation with maximum cooling on demand
  • DSP:Yes
  • Filters:Yes
  • Rack Spaces:3U
  • Height:5.25"
  • Depth:15.9"
  • Width:19"
  • Weight:44 lbs.
