QSC ISA1350 2000W 2-channel 70V Power Amplifier Features:
  • Commercial-grade 2-channel power amplifier with energy-efficient features
  • Industry-leading Class H amplifier with bipolar output circuitry — three-tier design with low distortion, reduced AC draw, and 50% less heat waste

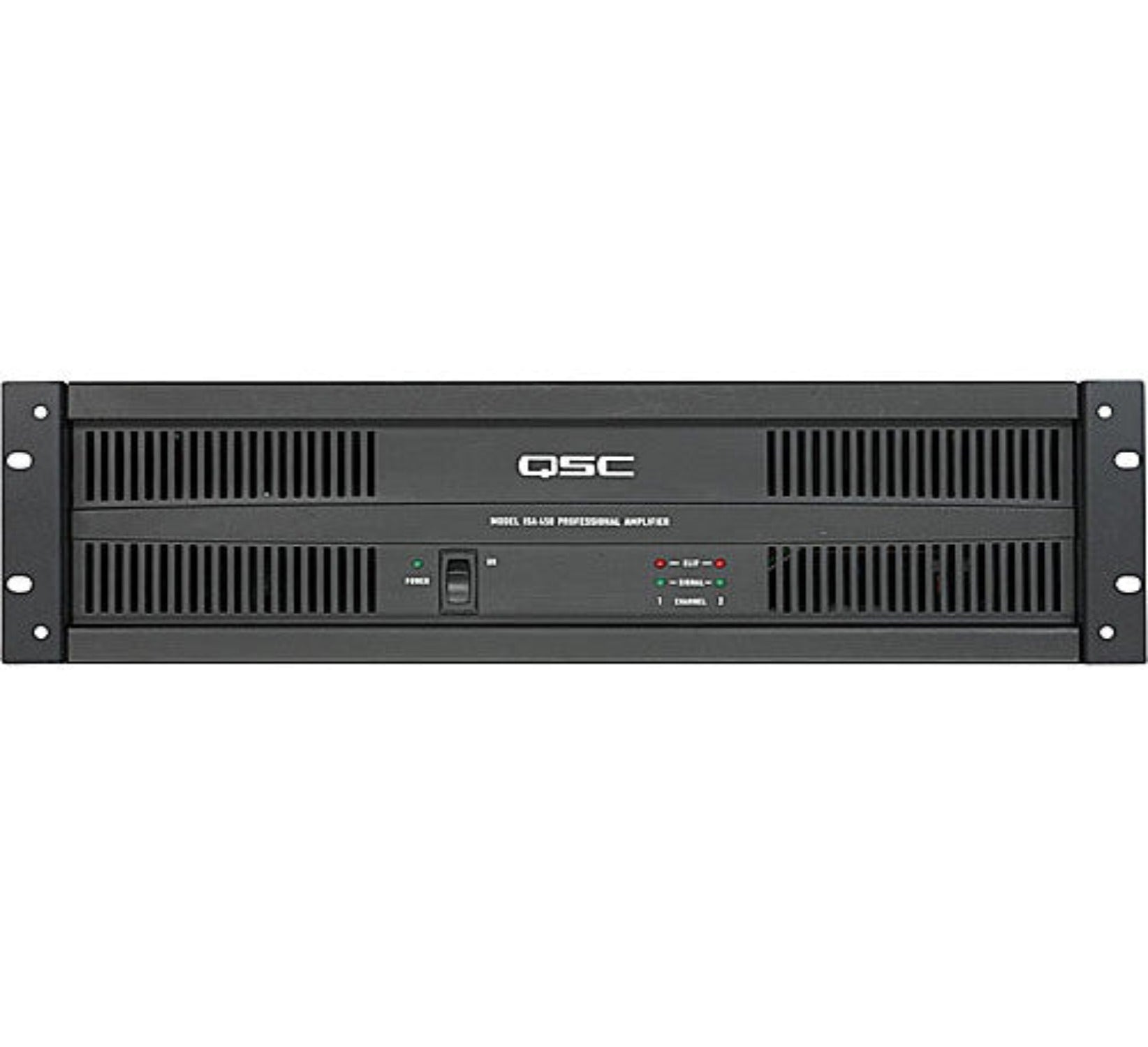

  • Front panel with power, signal, clip and protect indicator lights

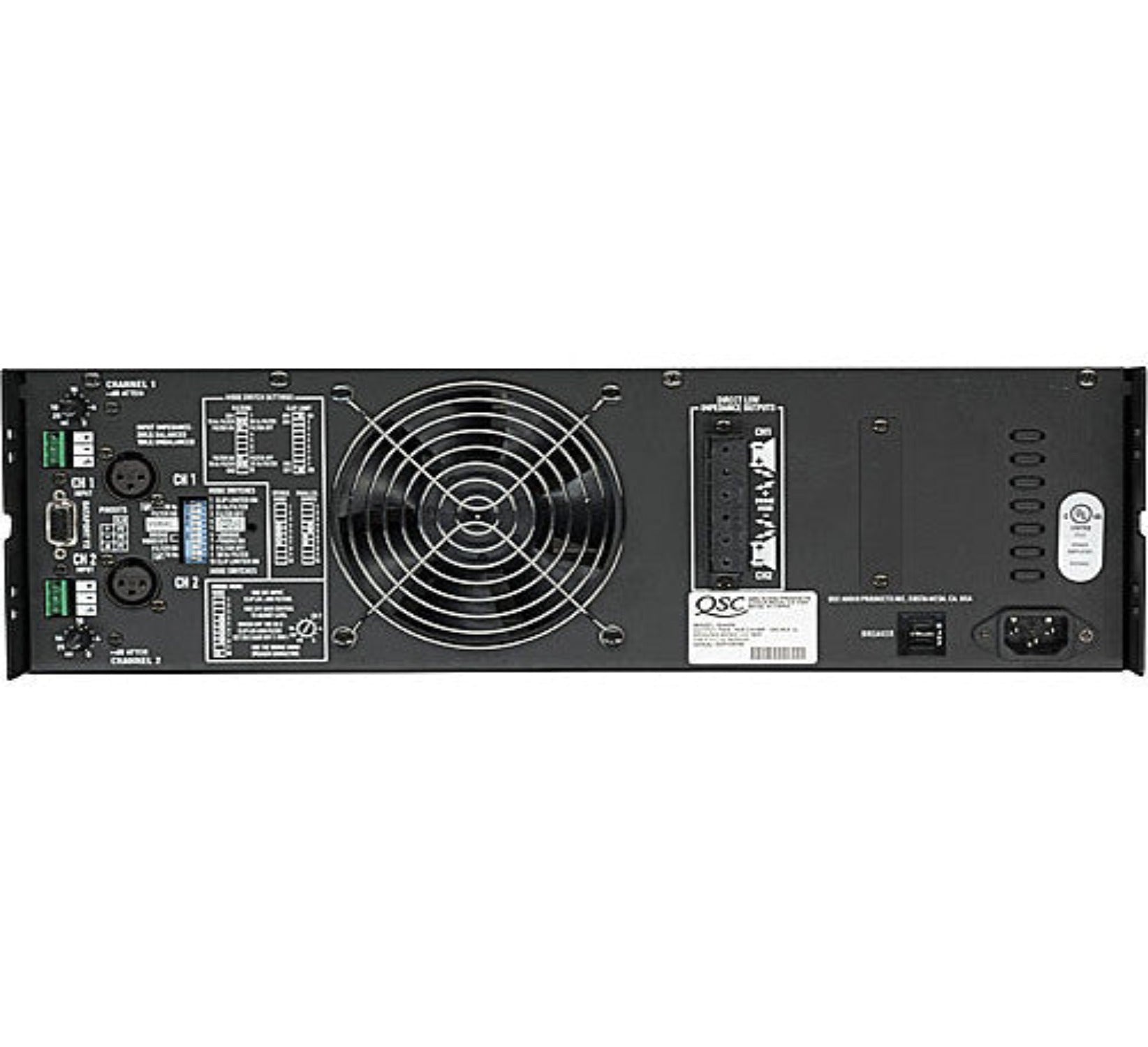

  • Rear inputs and controls for reduced risk of tampering or mishaps
  • Flexible power modes for variable ohms, wattage, and voltage needs
  • Up to 1500W direct power per channel at 70V
  • Channel bridge, parallel, and stereo modes for up to 800W into 8 ohms, 1300W into 4 ohms, or 2000W into 2 ohms
  • Dual channel detent attenuators
  • Two high-pass filter options and independent defeatable clip limiters safeguard speakers and transformers and reduce distortion
  • Quiet automatic cooling via “on-demand” variable-speed fan
  • DataPort V2 for use with DPV2-compatible signal processing accessories, including DSP-3/DSP-4
  • Comprehensive circuitry protection including DC, infrasonic, thermal overload, and short circuit safeguards
  • Road-ready with XLR and detachable Euro-style input connectors
  • 3-year manufacturer warranty
Technical Specifications

Tech Specs

  • Number of Channels:2
  • Power Class:Class H, 3 tier
  • Watts/Side @ 8 ohms:800W
  • Watts/Side @ 4 ohms:1300W
  • Watts/Side @ 2 ohms:2000W
  • Watts Bridged:2800W @ 8 ohms, 4000W @ 4 ohms
  • 70V/100V Output:1500W
  • Inputs:2 x XLR, 2 x Euroblock
  • Outputs:2 x Cover Barrier Strips
  • Data I/O:1 x Serial (Dataport V2
  • Frequency Response:20Hz-20kHz
  • Overload Protection:Triac crowbar
  • Rack Spaces:3U
  • Height:5.25"
  • Depth:15.9"
  • Width:19"
  • Weight:68 lbs.
