High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

More Information

  • Compact and powerful performance
  • 1000 Watt peak power Class-D amplifier module
  • Easily selected contours for commonly-used applications
  • Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
  • Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
  • Light weight and highly portable
  • Professional appearance looks great in any application
  • Use for main PA, stage monitor, or instrument amplifier
  • 35 mm pole socket
  • Optional yoke, tote, and outdoor cover accessories
  • Complete EASE and CAD information available online
  • 6-Year Warranty*

Technical Specification


Model  CP 8  CP 12
Frequency Response (-6 dB) 56 Hz – 20 kHz 49 Hz – 20 kHz
Frequency Range (-10 dB) 53 Hz – 20 kHz 47 Hz – 20 kHz
Nominal Coverage Angle
(Peak SPL @ 1 m)
900 Axisymetric 750 Axisymetric
Maximum Rated SPL1 124 dB 126 dB
Amplifier Power Class D Peak: 800 W (LF), 200 W (HF)
AC Power Consumption (1/8th Power) 100 VAC, 0.75A - 240 VAC 0.31 A
Driver Information LF: 8-in (203 mm), cone

HF: 1.4-in (35.6 mm) compression driver

LF: 12-in (305 mm), cone

HF: 1.4-in (35.6 mm) compression driver

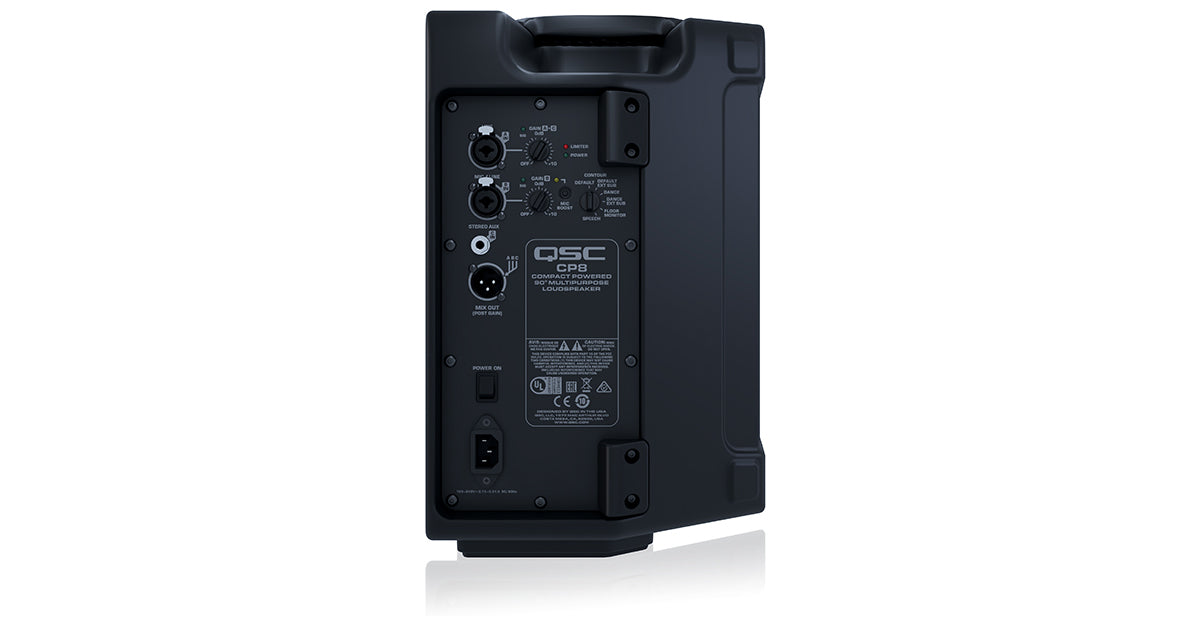

2x locking XLR/F 1/4" combo (Line input and Mic/Line input) 1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connector

Enclosure Polypropylene
Net Weight 9.5 kg / 21.0 lb 13.7 kg / 30.3 lb
