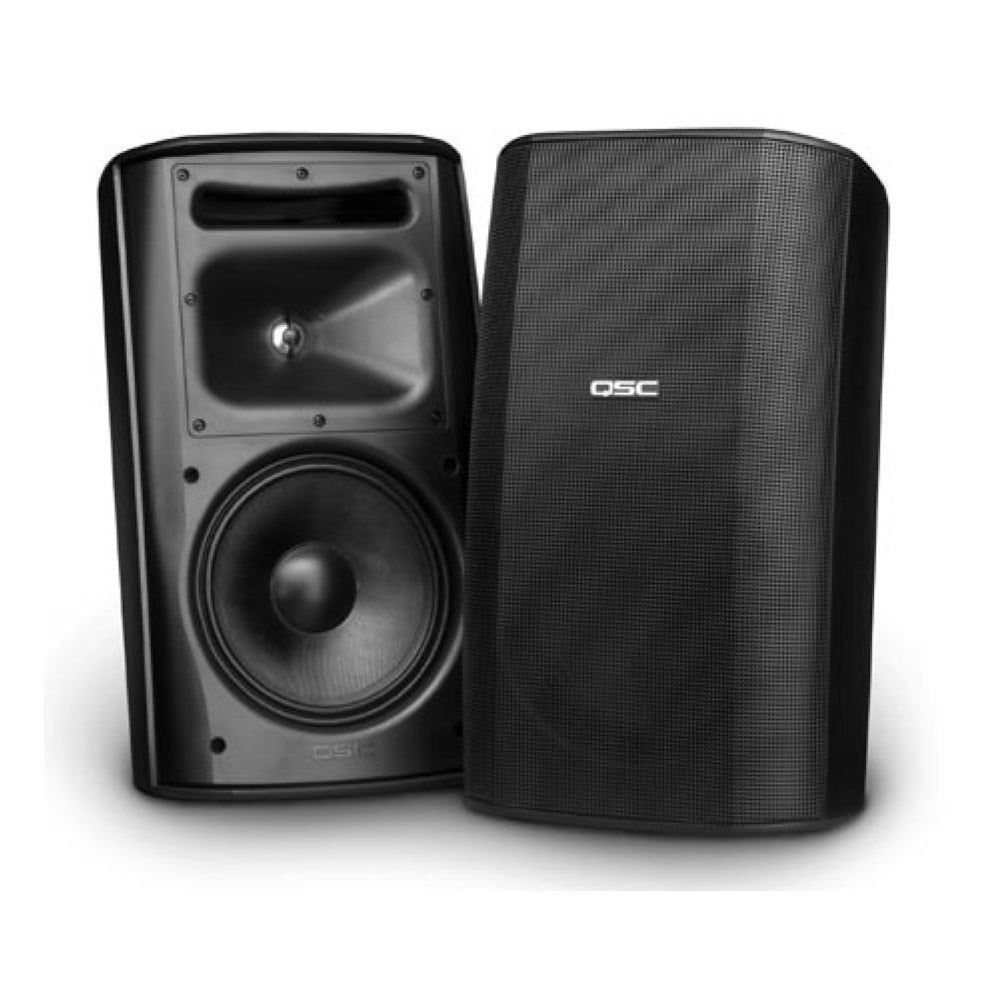

QSC ADS 82 BLACK

QSC ADS 82 BLACK

The high-frequency driver of the AD-S82H features the unique Advanced Directivity rotatable waveguide, which enables the loudspeaker to deliver accurately focused sound, independent of mounted positioning and orientation. The weather-resistant black enclosures may be painted to match specific decor applications, and a dynamic power protection circuit is built-in to ensure reliable performance in the event of overload conditions

Enquire Now

Product details

Technical Specifications

Configuration: Compact 2-way, ported enclosure

Transducers:
Low-Frequency: 8" fiberglass cone, 1 1/4" voice coil
High-Frequency: 1" titanium dome tweeter with neodymium magnet

Frequency Range:
Frequency Response (-6 dB): 85 Hz - 18 kHz
Useable Frequency Range (-10 dB): 65 Hz - 19 kHz

Maximum Output:
Calculated Peak Output: 116 dB SPL
Calculated Continuous Output: 110 dB SPL
Nominal Impedance: 8 ohms (5.4 ohm minimum, 15 kHz, 50 ohm maximum)

Power Rating:
RMS Power Handling: 110 W (8 hours IEC), 90 W (100 hours IEC)
Recommended Max. Amp Power: 180 W RMS

Power Limiting:
Dynamic, full range power protection circuitry activated by signal overload conditions
Sensitivity: 90.5 dB, 1 m, free field
Nominal Coverage (HV): 90° x 60° (-6 dB) rotatable to 60° x 90°

Transformers:
Type: Custom low distortion laminated core, wide bandwidth design
70V Taps: 60, 30, 15, 7.5, W
100V Taps: 60,30, 15, W

Enclosure:
Material: Injection molded, weather resistant, high impact polystyrene
Finish: White or black (paintable)
Weather Resistant: Yes
Grille: Heavy duty powder coated aluminum
Connectors: Pair of concealed 5-way binding posts, in conjunction with IntelliDock mounting/ connection system
