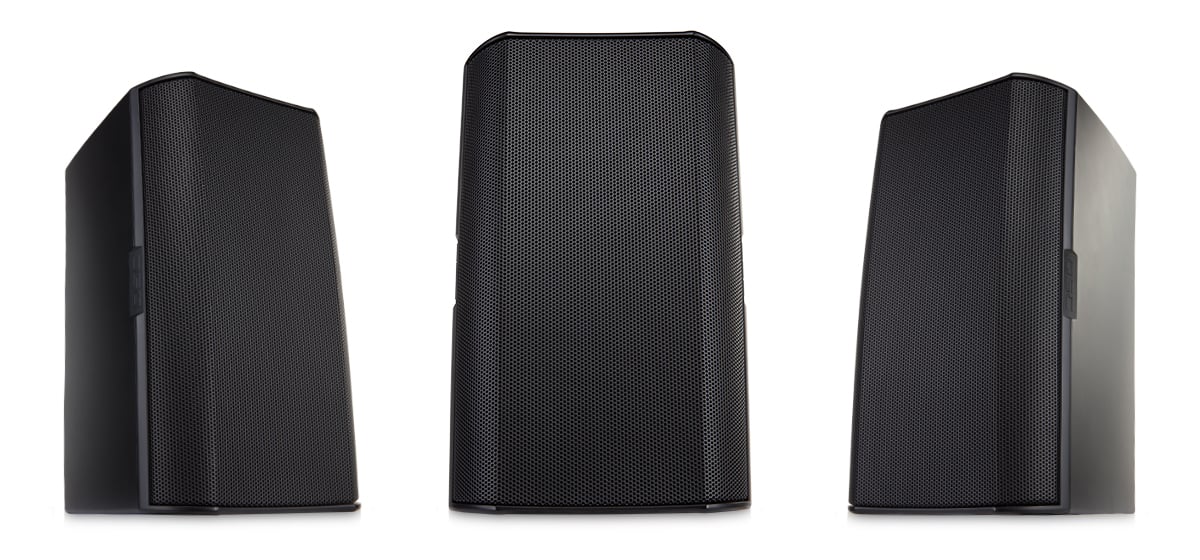

QSC ADS 10 T

• 10-inch weather treated woofer; 1.4-inch compression driver
• 90° conical DMT™ coverage
• 100 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
• Maximum peak SPL 122 dB (8 ohm bypass)
• Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
• X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time Optional Yoke mount and M10 Kit-C for additional installation versatility
• Advanced Intrinsic Correction™ voicings available via Q-SYS™
• Lightweight ABS enclosures offer long-term durability and lasting good looks
• Sealed input panel cover and powder coated aluminum grilles for added weather resistance
• Meets IEC60529 IP-54 for dust and splash resistance

System Details

• Effective Frequency Range: 50 Hz – 19 kHz

• Rated Noise Power / Voltage: 250W / 45V (RMS)

• Broadband Sensitivity: 92 dB SPL

• Coverage Angle (-6 dB): 90° Conical DMT™

• Directivity Factor (Q): 10

• Directivity Index: 10 dB

• Maximum Continuous SPL: 116 dB

• Maximum Peak SPL: 122 dB

• Rated Impedance: 8 Ω

• Recommended Amplifier Power (Program): 500W

Transformer Taps

70V: 100W / 50W / 25W / 12.5W / 8Ω Bypass

100V: 100W / 50W / 25W / 8Ω Bypass

Transducers

• HF: 1" exit / 1.4" voice coil compression driver

• LF: 10" weather-resistant paper cone woofer

– 2.5" (64 mm) voice coil

Connections

• Input Connector: Euroblock connector with parallel output terminals

Enclosure / Build

• Enclosure Material: Painted ABS polymer

• Grille Material: Powder-coated aluminum

• X-Mount Material: Powder-coated aluminum

Environmental / Protection

• Ingress Protection: IP-54

• Operating Environment: Indoor & Outdoor

• Testing Standards:

– Salt Fog: MIL-STD-810G Method 509.5 (100 hrs)

– Humidity: MIL-STD-810G Method 507.5, Natural Cycle B2 (7 days)

– Temperature: -20°C to 50°C internal QSC standard

Physical Details

• Net Weight: 31 lb / 15 kg

• Product Dimensions (H × W × D):

– 20.3 × 12.5 × 11.7 in

– 516 × 318 × 298 mm

• Shipping Weight: 40.6 lb / 18.45 kg

• Shipping Dimensions (H × W × D):

– 31.7 × 16.1 × 16.1 in

– 805 × 409 × 409 mm

Included Accessories

• X-Mount mounting system

• Euroblock connector

• Input panel cover
