QSC AD-S10T

QSC AD-S10T

The black AcousticDesign Series QSC AD-S10T is a transformer-equipped 10" surface-mount loudspeaker supplied with the award-winning X-Mount system, making it suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.

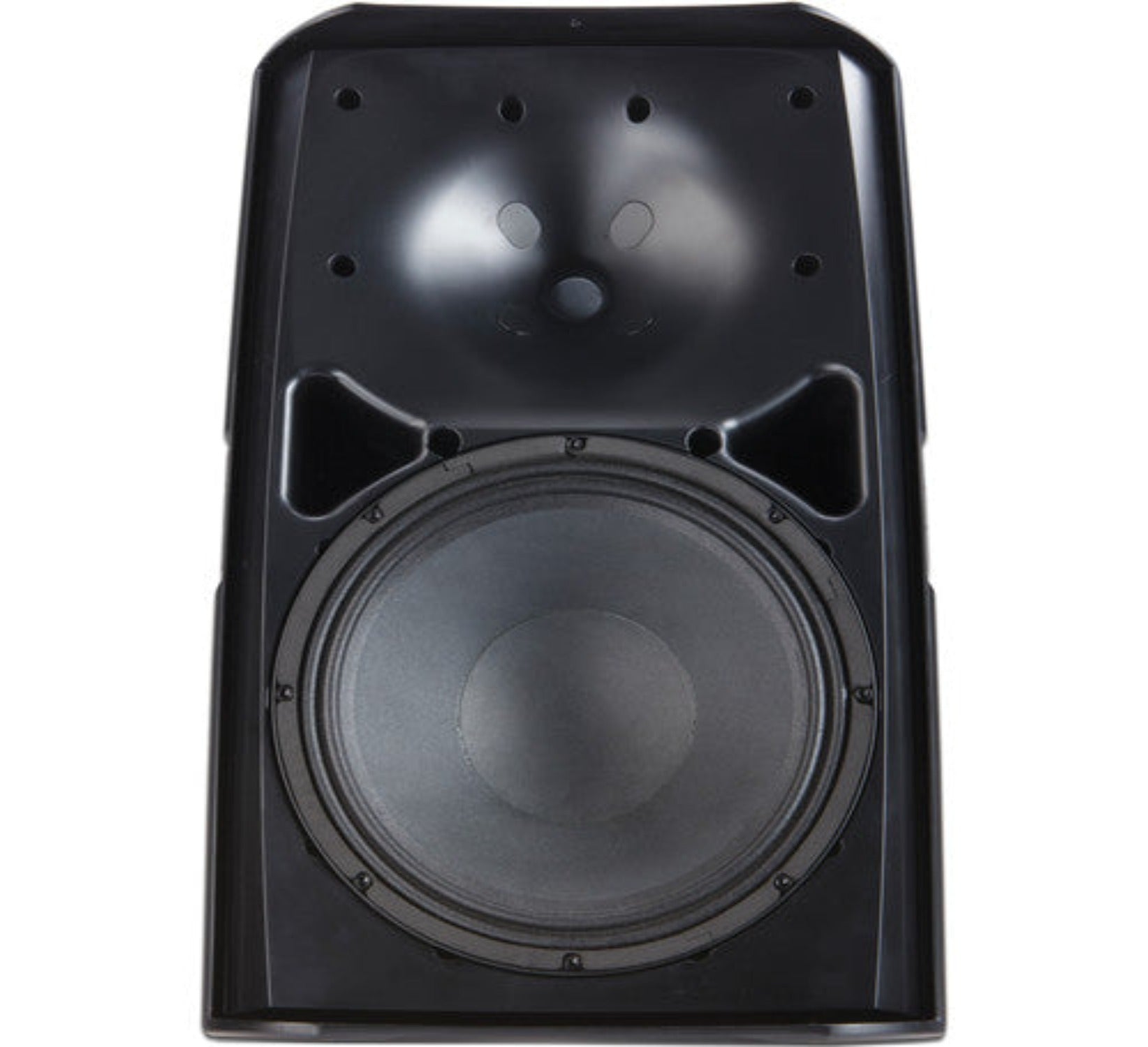

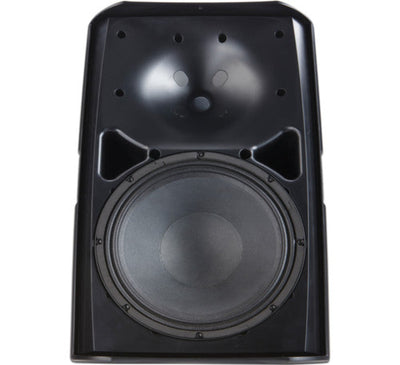

Outfitted with a 10" weather-treated woofer and a 1" exit compression driver with a DMT waveguide, the AD-S10T offers even 90° conical coverage and improved off-axis response while providing a frequency range of 50 Hz to 19 kHz (-10 dB). The speaker is capable of handling 250W RMS and producing a peak maximum SPL of 122 dB.

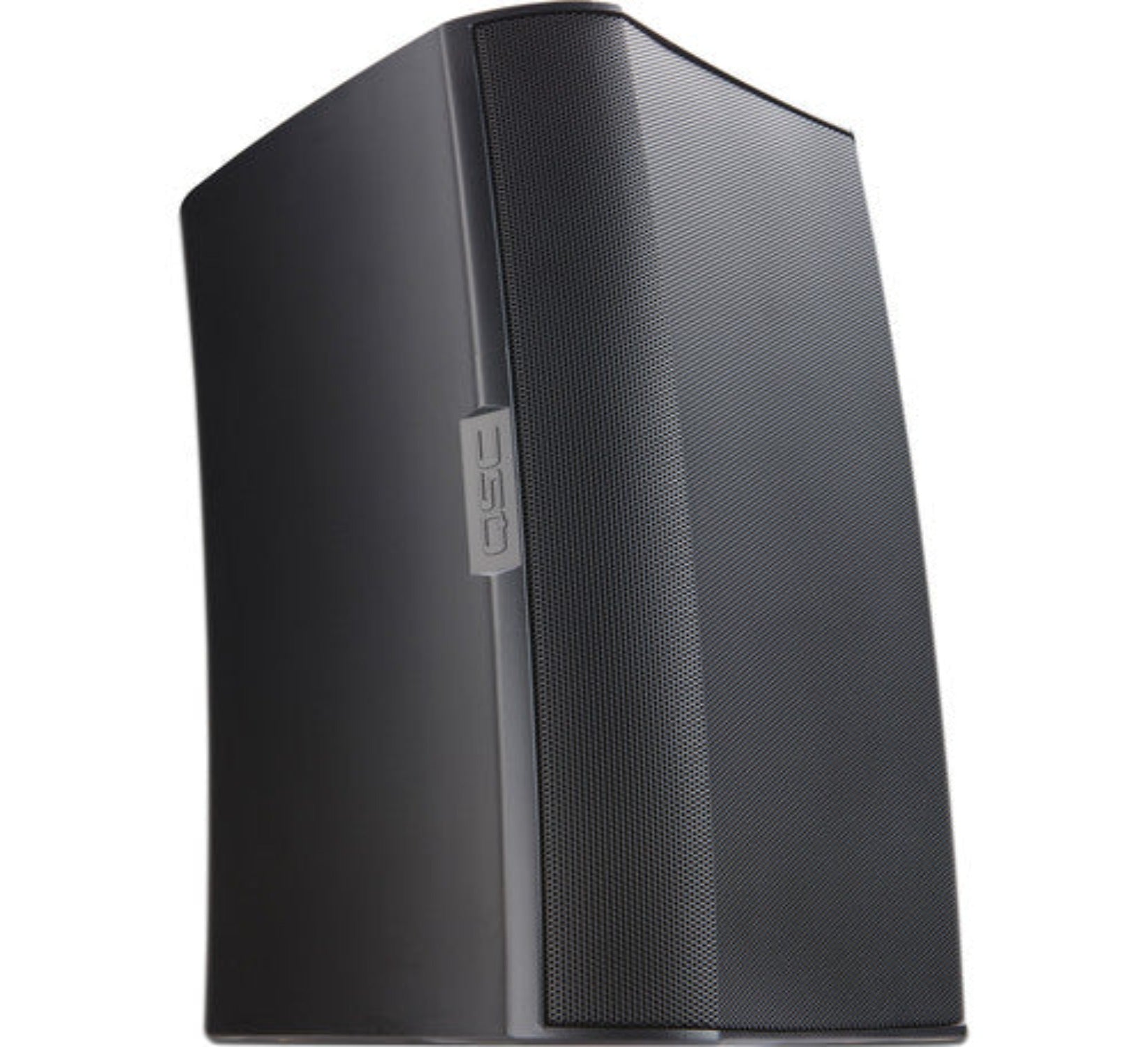

The AD-S10T utilizes a 4-pole Euroblock connector under a sealed input cover for easy wiring and protection from moisture. Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S10T boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.

More Information

Key Features

  • 10" Woofer & 1" Exit Compression Driver
  • 250W RMS Power Handling
  • 90° Conical Coverage
  • 122 dB Peak Maximum SPL
  • 50 Hz to 19 kHz Frequency Range
  • Low-Saturation Multi-Tap Transformer
  • Supports 70V, 100V, or 8-Ohm Operation
  • Euroblock Connector for Easy Wiring
  • Includes Award-Winning X-Mount System

Technical Specification



Speaker
Active or Passive Passive
Number of Included Speakers 1
Speaker Configuration 2-Way
Power Handling For 2 Hours / At Low-Z:
250 W RMS
Recommended Amplifier Power 500 W
Constant Voltage / Transformer Taps 70 V:
100 / 50 / 25 / 12.5 W or 8 Ohms Bypass

100 V:

100 / 50 / 25 W or 8 Ohms Bypass
Impedance 8 Ohms (Transformer Bypassed)
Transformer Wattage 100 W
Enclosure Type Sealed
Shielded No
Drivers
HF Driver 1 x 1" / 2.54 cm Compression Driver
HF Voice Coil 1.4" / 3.56 cm
LF Driver 1 x 10" / 25.4 cm Paper Woofer
LF Voice Coil 2.5" / 6.35 cm
Performance
Frequency Range 50 Hz to 19 kHz -10 dB
Maximum SPL 116 dB (Continuous)
122 dB (Peak)
Sensitivity 92 dB SPL
Coverage Angle 90° (Conical)
Directivity 10 (Directivity/Q Factor)
10 dB (Directivity Index)
Maximum Input Voltage 45 V RMS
Connectivity
I/O 1 x Block 4-Pole Speaker Input/Thru (Removable)
Environmental
Water / Weather Resistance Dust Resistant, Humidity Resistant, Water Resistant
IP Rating IP54
Operating Temperature -4 to 122°F / -20 to 50°C
Physical
Color Black
Mounting 1 x Bracket Point (Rear)
2 x
M10 Suspension (Bottom)
Construction Material ABS, Aluminum Grille, Polymer
Dimensions 20.3 x 12.5 x 11.7" / 51.56 x 31.75 x 29.72 cm
Weight 31 lb / 14.1 kg
