POWERX PRO AMP PROLITE 1600

Power

8 ohms stereo power

500w × 2

4 ohms stereo power

800w × 2

2 ohms stereo power

1000w × 2

Other Specification

Frequency response

20Hz – 20 KHz (±0 / -0.5 dB)

THD+N

<0.5%

S/N rate

96 dB

Damping Factor

300

Crosstalk

60 dB

Slew Rate

12v / US

Input Sensitivity

0.775V / 1V / 32db

Input Impedance (bal/unbal)

20k ohms / 10k ohms

Voltage gain (8 ohm)

38.2 dB

Output circuitry

Class 2H

Cooling

Air flow from front to rear

Protection

Soft start, DC short circuit, over load, clip limit, over heat, progressive volume

Connector

Input

Balance input XLR – F

Output

NL 4 SPEAKON Neutrik™

Function

Front Panel

Ship-type power switch, individual volume control knob, power display, SIG indicator, clip indicator, protect indicator

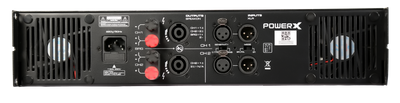

Rear Panel

Mode selector switch, Sensitivity selector switch

Dimension / Weight

Product Dimension (mm)

483 × 402 × 89

Packing Dimension (mm)

595mm × 460mm × 170mm

GW (±2.5 Kg)

18.4 kg

Power Supply

Non removable IEC power cord

AC 240v / 50 Hz ±10
