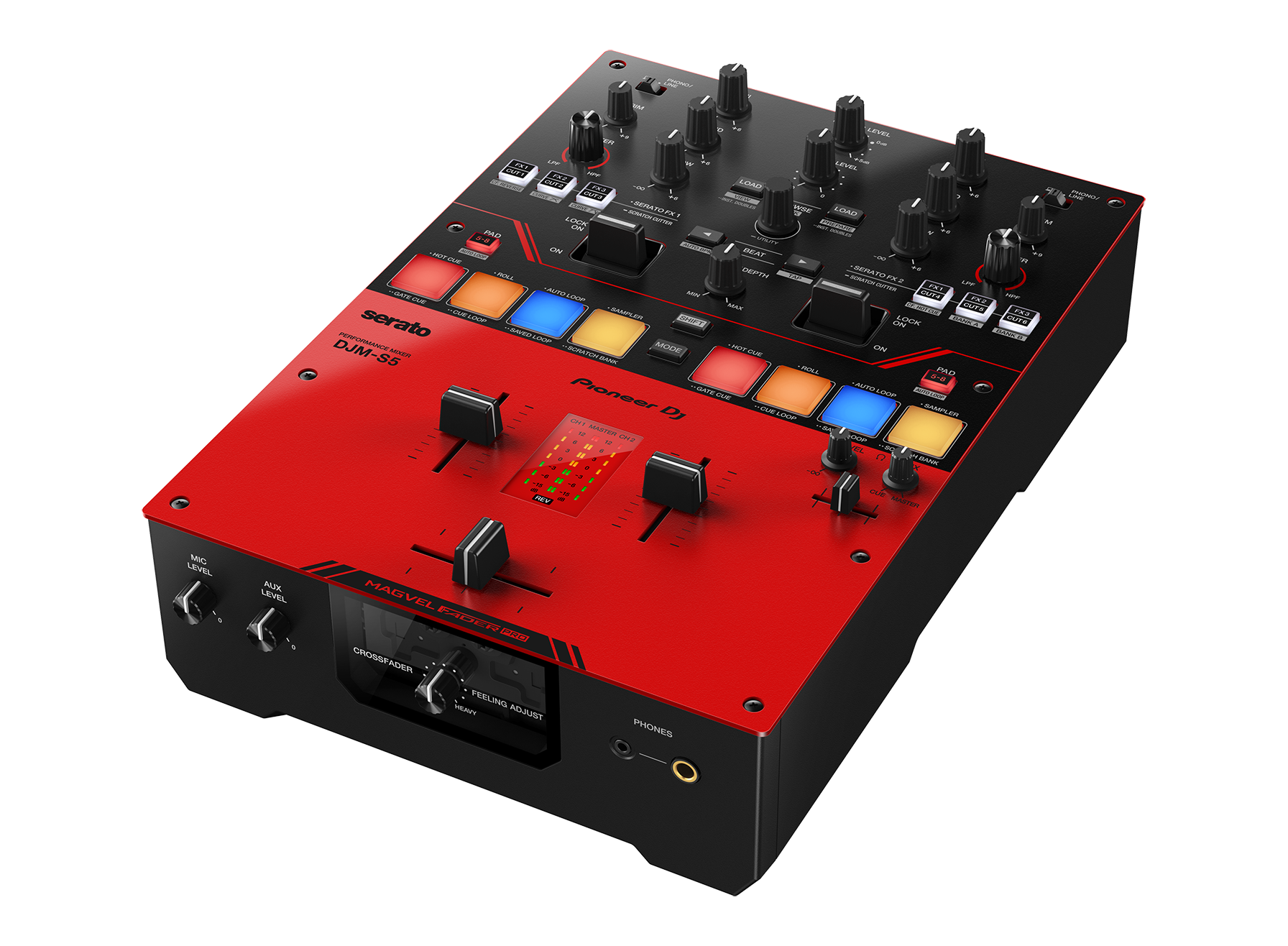

PIONEER DJM S 5

PIONEER DJM S 5

This new scratch-style 2-channel DJ mixer for Serato DJ Pro is ideal if you’ve experimented with battle mixing and scratching and want to expand your skills, or if you’re completely new to the scene and want to dive straight in.

Enquire Now

Product details

Technical Specifications


Type: 2-channel scratch DJ mixer

Channels: 2

EQ / ISO: 3-band per channel (–∞ to +6 dB)

Crossfader: MAGVEL FADER PRO (adjustable curve, tension, reverse)

Sound card sample rate: 24-bit / 48 kHz

Signal-to-Noise Ratio (S/N): 108 dB (USB), 94 dB (LINE), 82 dB (PHONO), 75 dB (MIC), 94 dB (AUX)

Total Harmonic Distortion (THD): 0.003% (USB), 0.007% (LINE)

Inputs: 2 × PHONO/LINE (RCA), 1 × MIC (XLR + ¼″-jack combo), 1 × AUX (RCA)

Outputs: 1 × MASTER (XLR), 1 × BOOTH/MASTER (RCA), 2 × HEADPHONES (¼″ stereo jack + 3.5 mm mini-jack)

USB Ports: 2 × USB-C (one for PC/Mac + power, one for power supply only)

Power Supply: USB-bus powered (5 V / 500 mA)

Performance Controls: Sound Color FX (Filter), performance pads + FX levers (when used with supported software)

Dimensions (W × D × H): 245 mm × 363.5 mm × 107.9 mm

Weight: 3.4 kg
