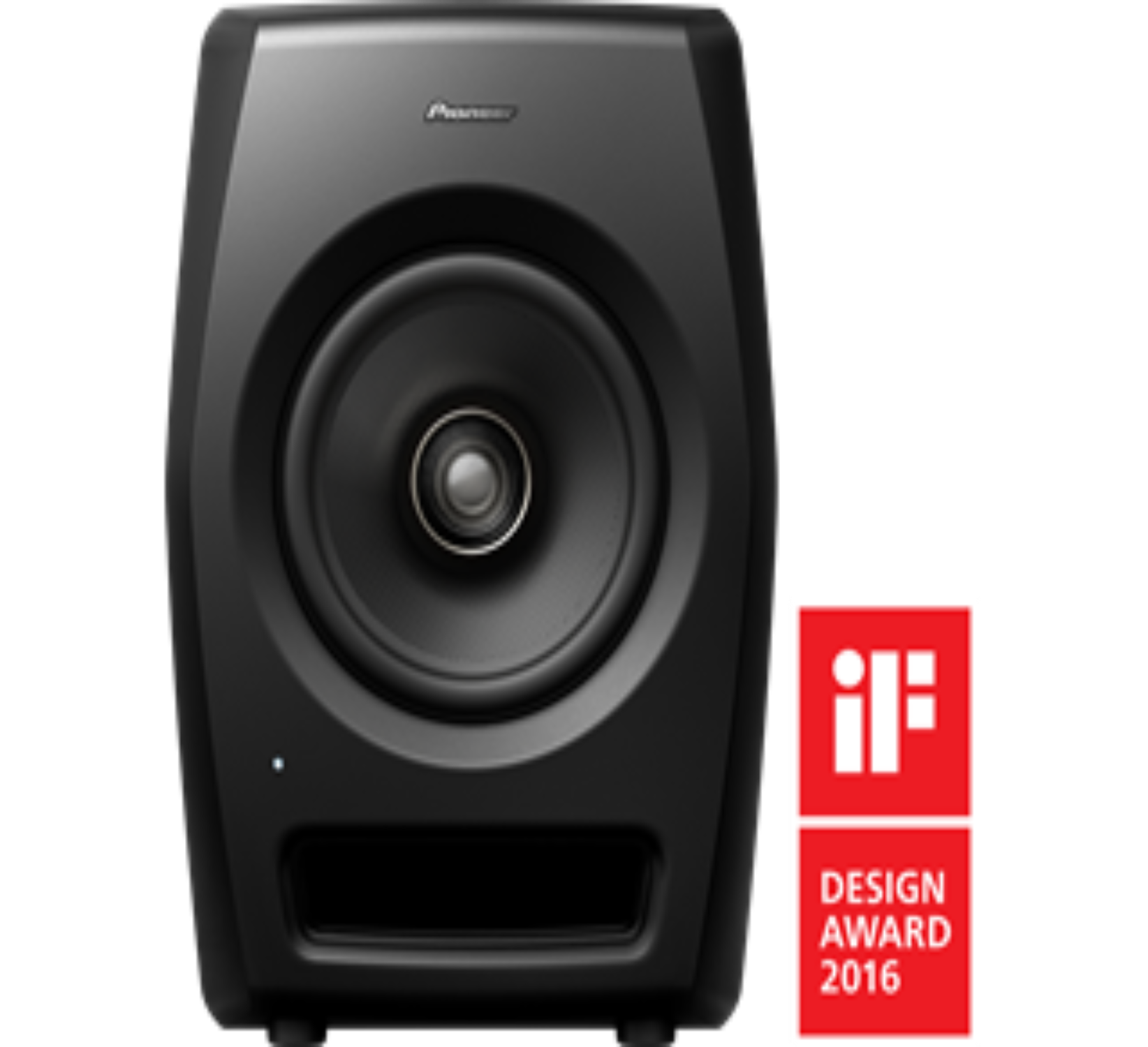

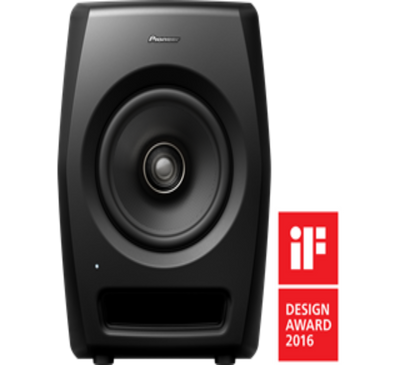

PIONEER DJ RM-07

PIONEER DJ RM-07

Near-field perfection

The RM-07 is equipped with a 6.5-inch coaxial HD driver to deliver accurate point source monitoring. Custom-designed class AB bi-amps ensure balance across the frequencies while an exclusive toroidal transformer power source guarantees excellent S/N ratio and no distortion. Last but not least, a clip indicator on the front of the speaker protects the unit from excessive input.

Drawing on a rich heritage in speaker design, the RM series active reference monitors with HD coaxial driver units are the perfect solution for profession producers. They're packed with pro-audio technology to deliver a high SPL and a neutral sound with clear separation across the frequencies – making them the ideal companion for near-field studio monitoring of high-res sounds.

The RM-07 monitor speaker is sold as a single speaker.

More Information

Key features

  • Accurate point source monitoring

    HD coaxial driver units – inherited from our pro-audio brand TAD – put the tweeter and woofer on the same axis – emanating audio from the same point for a more accurate sound. A newly developed waveguide minimises interference between the drivers to ensure crisp sound separation.

  • Precise & exhilerating high frequencies

    The 1.5-inch, aluminium, hard domed tweeter and the diaphragm are custom-designed to deliver precise, rousing high frequencies of up to 50 kHz.

  • AFAST acoustic tube

    Our AFAST* technology ensures clear and high-quality audio reproduction. An acoustic tube inside the cabinet and bass reflex port absorbs standing waves, drastically improving response in the low to mid ranges.
    * Acoustic Filter Assisted System Tuning (AFAST)

  • Tight bass response

    Aramid fibre woofers provide a tight bass response, while the front-loaded bass reflex system has grooves on the ducts to reduce air friction and deliver a clean bass – even when the monitors are positioned against the wall.

Technical Specification

Specifications

Frequency Range

40 - 50000 Hz

Maximum Sound Pressure

109 dB

Width

244 mm

Height

337 mm

Depth

260 mm

Weight

12.3 kg

Amplifier Output

  • Class A/B Bi-amp: 100 W
  • LF: 100 W / 4 Ω
  • HF: 50 W / 4 Ω

Impedance

10 kΩ

Input Sensitivity

-40 dB ~ +6 dB

High EQ

-2 dB/ -1 dB/ 0 dB/ +1 dB at 10 kHz

Mid EQ

-4 dB/ -2 dB/ -1 dB/ 0 dB at 140 Hz

Low EQ

-4 dB/ -2 dB/ 0 dB/ +2 dB at 50 Hz

Cross Over Frequency

1.6 kHz

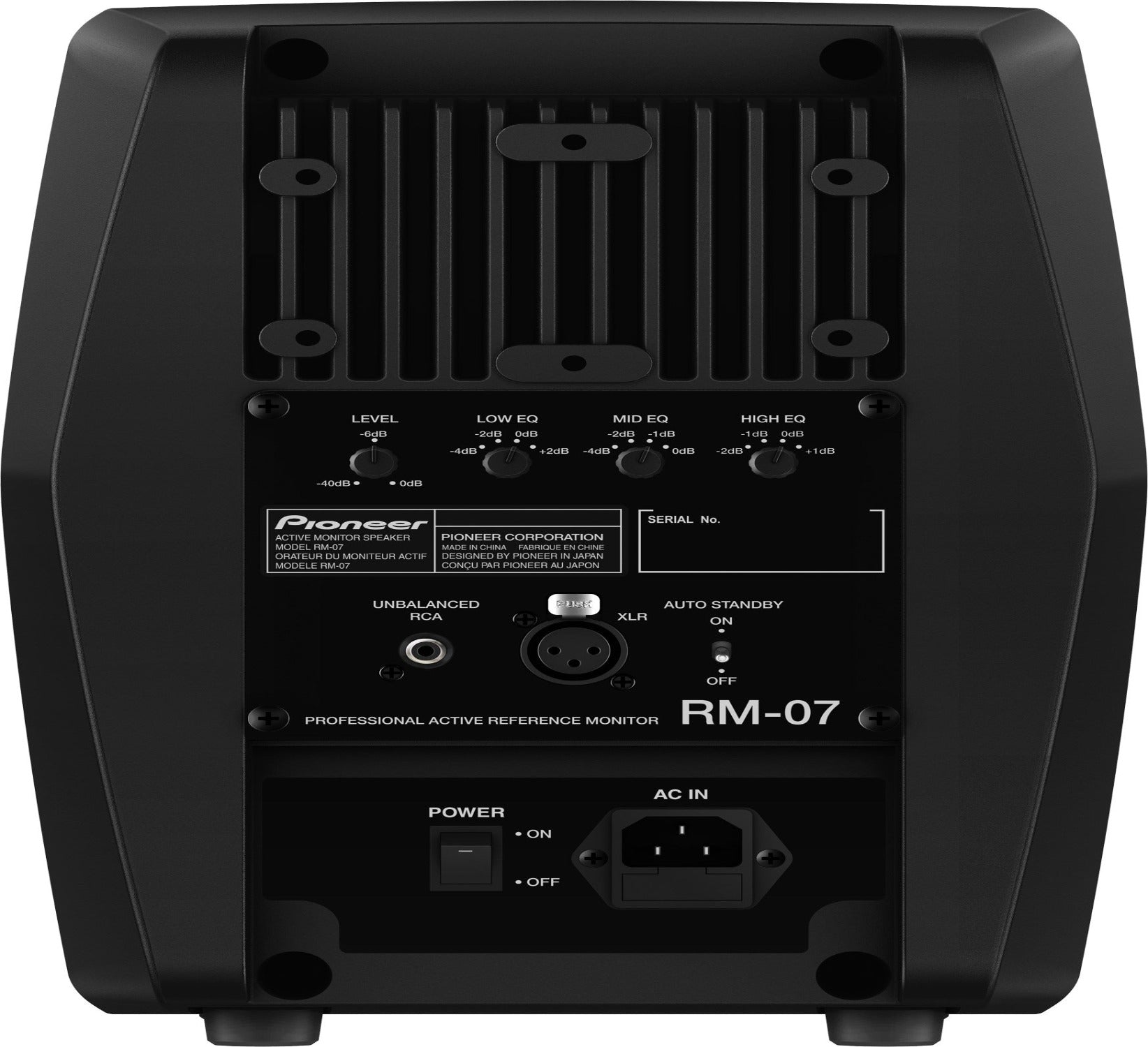

Terminals

Inputs

  • 1 XLR (balanced)
  • 1 RCA (unbalanced)



* The specifications and design of this product are subject to change without notice.
