All PV Series mixers include our Tape to Control Room and Tape to Mix assigns, which allow the operator to monitor an external stereo signal without using any of the mixer’s channels. In addition, the mixers’ Control Room output sends a stereo master output signal to an external source for monitoring. Phantom power, effects send and a contour switch are also standard on all models.

Technical Specifications

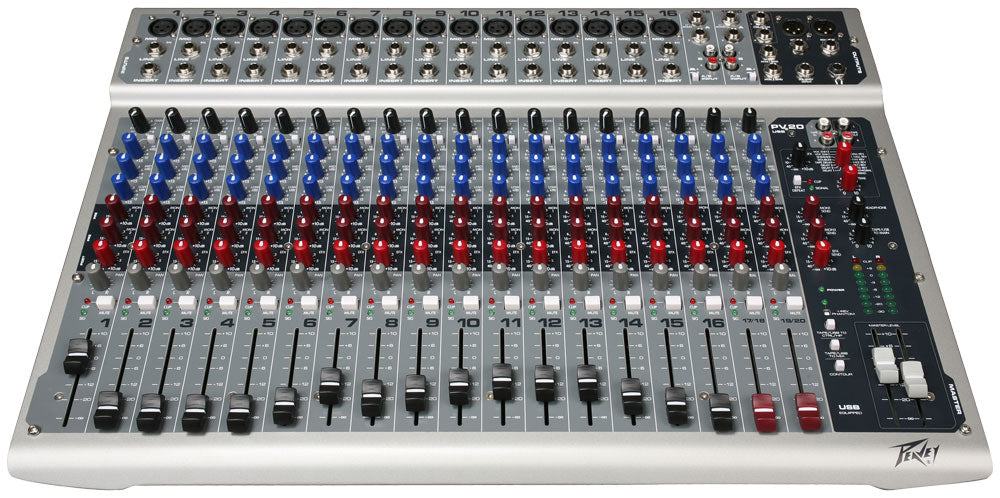

  • 20 channel, 2-bus console

• 16 XLR RQ™ (reference quality) low noise microphone inputs with insert points

• Channels 17/18 and 19/20 with dual switchable stereo line inputs

• 3-band EQ on all channels

• LED clip, signal and mute indication

• Two pre-fader monitor sends

• One post-fader effects send

• Precision 60 mm faders on input channels and stereo master out

• Control room outputs

• Global 48V phantom power

• Tape to control room and tape to mix assignments

• Stereo outputs with 1/4″ unbalanced and XLR balanced connectors

• Rugged console design

• Built-in DSP effects processor

• Universal switching power supply

• USB port to connect to a computer for recording or playing back digital audio to/from computer

• Compatible with macOS® X, Windows® 2000, XP, ME and 7
