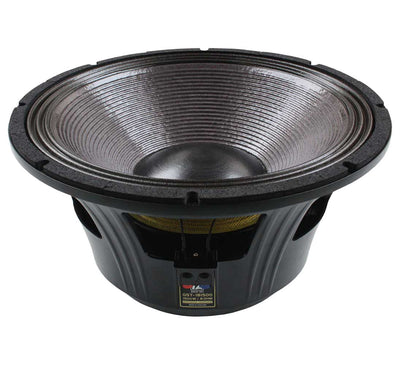

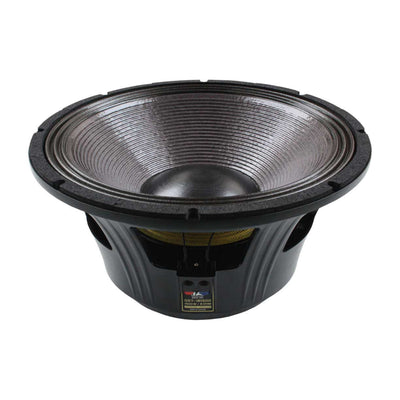

P AUDIO GST 18 1500

P AUDIO GST 18 1500

The P Audio GST18-1500 is an 18 inch (457mm) diameter high performance very low frequency sub woofer transducer. The design utilizes a very large format 5 inch (127mm) nominal voice coil diameter with a very high power copper based coil configured in an inside/outside wind geometry. The large radiating area and deep bass performance insure that the GST18-1500 is capable of very high impact low frequency response. The transducer also offers a double silicone spider design that improves long term mechanical reliability and mechanical linearity. The large format ferrite based magnet structure produces very high conversion efficiency. The ferrite design includes a double stack permanent magnet geometry that increases maximum physical excursion capability. Inside/outside winding geometry assists in coil cooling and improves both transducer power handling and system reliability. The GST18-1500 also features a very long air gap height that improves transducer linearity.

More Information

  • 5" Large Format Voice Coil
  • 6000 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Copper wire Inside/Outside Coil Design
  • Double Spider Suspension
  • Integrated Demodulation Rings
  • Die Cast Aluminum Chassis

Technical Specification



  Nominal diameter   457 mm/18 in
  Power rating   1500 W(AES)
  Nominal impedance    8Ω
  Sensitivity    96 dB
  Frequency range    30-1000 Hz
  Chassic type    Cast aluminum
  Magnet type    Ferrite
  Magnet weight    8.9 kg/312.5 oz
  Voice coil diameter    127 mm/5 in
  coil material    Copper Wire
  Former material    Glass fiber
  Cone material   Paper
  Surround material   Cloth
  Suspension   Double
  X-max    9 mm/0.35 in
  Gap depth   14 mm/0.55 in
  Voice coil winding width    32 mm/1.26 in
  Packing dimension WxDxH(mm)    505 x 505 x 300
  Net weight    24.8 kg/54.7 lb
  Shipping weight    26.9 kg/59.3 lb
