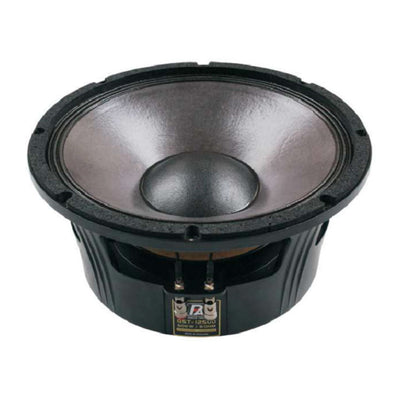

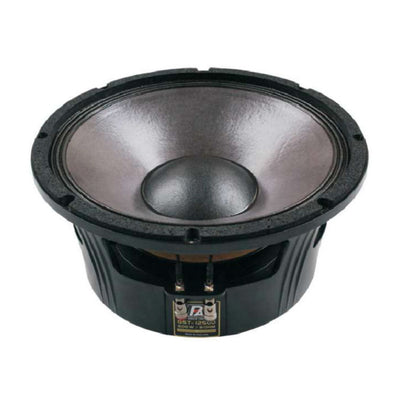

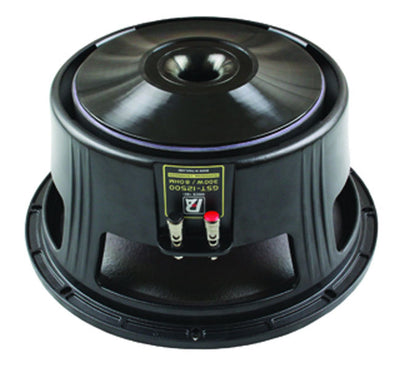

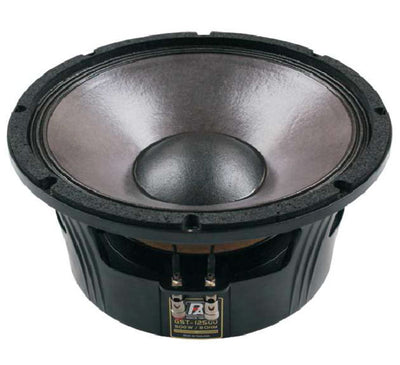

The P.Audio GST12-500 is a 12 inch (305mm) diameter high performance woofer. The design utilizes a medium format 3 inch 76mm) nominal voice coil diameter with a very light weight aluminum coil configured in an inside/outside wind geometry. This light weight design, coupled with a low moving mass cone offers excellent transient response. The large format ferrite based magnet structure produces very high conversion efficiency. Inside/outside winding geometry assists in coil cooling and improves both transducer power handling and system reliability. The GST12-500 also features a very long air gap height that improves transducer linearity.
P AUDIO GST 12-500
P AUDIO GST 12-500
More Information
More Information
Technical Specification
Technical Specification
Nominal diameter | 305 mm/12 in |
Power rating | 500 W(AES) |
Nominal impedance | 8Ω |
Sensitivity | 96 dB |
Frequency range | 50-3000 Hz |
Chassis type | Cast aluminum |
Magnet type | Ferrite |
Magnet weight | 2.7 kg/96.6 oz |
Voice coil diameter | 76 mm/3 in |
Coil material | Aluminum wire |
Former material | Glass fiber |
Cone material | Paper |
Surround material | Cloth |
Suspension | Single |
X-max | 3.25 mm/0.13 in |
Gap depth | 12 mm/0.47 in |
Voice coil winding width | 18.5 mm/0.73 in |
Packing dimension WxDxH (mm) | 355 x 355 x 200 |
Net weight | 9.1 kg/20.1 lb |
Shipping weight |
10.2 kg/22.5 lb |
