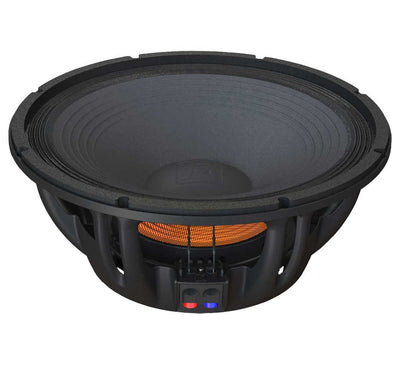

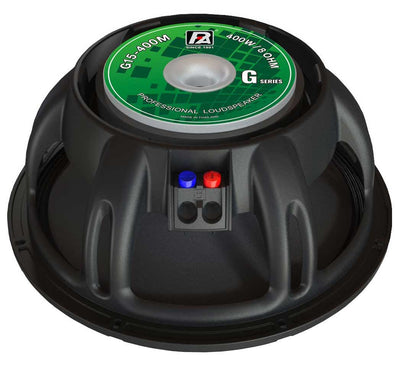

P AUDIO G 15/400 M

• Nominal Diameter: 15 inches
• Rated Impedance: 8 ohms
• Power Handling Capacity: 400W (AES)
• Operating Bandwidth (+/-10dB): 45-3000 Hz
• Sensitivity @ 1W 1M: 97 dB
• Magnet Type: Ferrite
• Voice Coil Diameter: 3 inches

Nominal Diameter: 381 mm / 15 in

Power Rating (AES): 400 W

Nominal Impedance: 8 Ω

Sensitivity: 97 dB

Frequency Range: 45 – 3000 Hz

Chassis Type: Aluminum

Magnet Type: Ferrite

Magnet Weight: 2.3 kg / 81.4 oz

Voice Coil Diameter: 76.2 mm / 3 in

Voice Coil Material: CCA-W Wire

Former Material: GSV

Cone Material: Paper

Surround Material: Cloth

X-max: 3.9 mm / 0.35 in

Dimensions (W × D × H): 415 × 415 × 200 mm

Gross Weight: 8.9 kg / 19.6 lb
