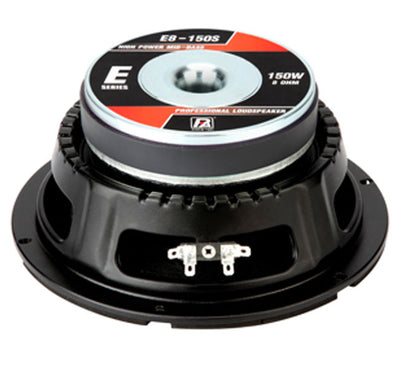

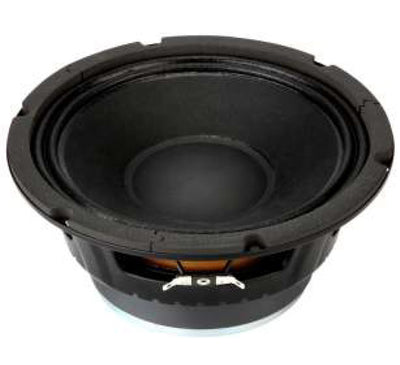

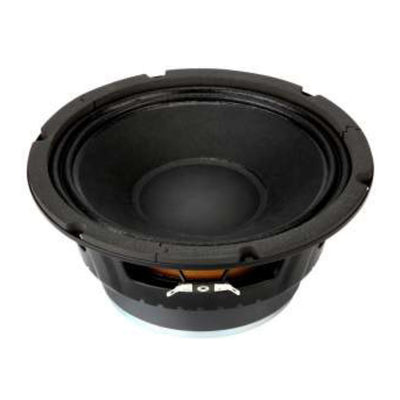

The P.Audio E8-150S is a high performance wide bandwidth transducer optimized for use in mid bass frequencies. The E8-150S is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 8 inch (203mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses very high energy ferrite magnetics to achieve a high acoustic output to weight ratio. The E8-150S has been optimized for use in two way or three way sound reinforcement systems and has an operating range of 60Hz to 3000Hz.
P AUDIO E8 150S
P AUDIO E8 150S
More Information
More Information
Technical Specification
Technical Specification
| Nominal diameter | 203 mm/8 in |
| Power rating | 150 W(AES) |
| Nominal impedance | 8Ω |
| Sensitivity | 93 dB |

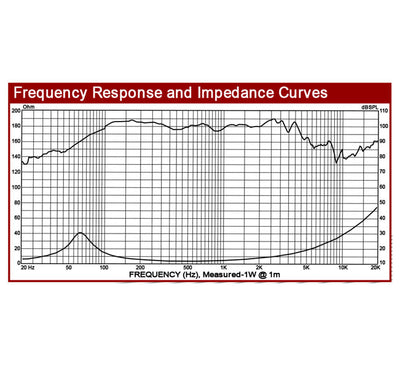

| Frequency range | 60-3000 Hz |
| Chassis type | Heavy Duty Stamp Steel |
| Magnet type | Ferrite |
| Magnet weight | 0.88 kg/31.2 oz |
| Voice coil diameter | 51.3 mm/2 in |
| Coil material | SV-W |
| Former material | Kapton |
| Cone material | Paper |
| Surround material | Cloth |
| Suspension | Single |
| X-max | 3.75 mm/0.15 in |
| Gap depth | 8 mm/0.31 in |
| Voice coil winding width | 15.5 mm/0.61 in |
| Packing dimension WxDxH | 225 x 225 x 120 mm |
| Net weight | 2.8 kg/6.2 lb |
| Shipping weight | 3.3 kg/7.3 lb |
