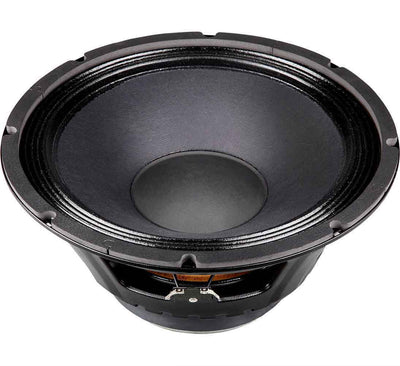

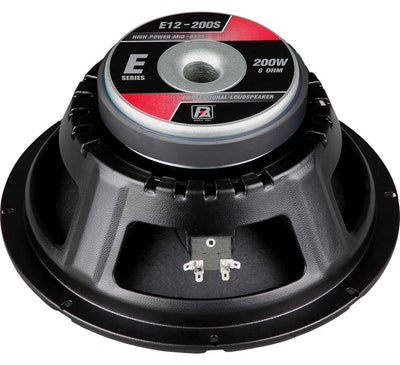

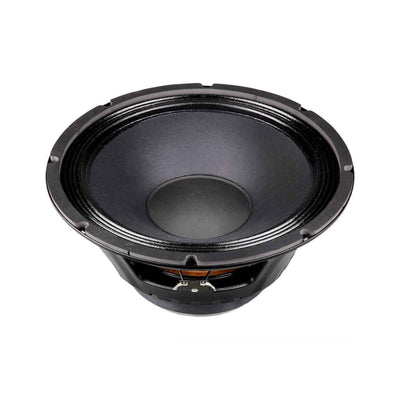

The P.Audio E12-200S is a high output low frequency transducer. The E12-200S is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 12 inch (305mm) diameter piston will produce extremely high sound pressure levels at low frequencies and is ideal for high level full range response in both live sound and recorded music venues. The operating bandwidth of the E12-200S is 50Hz to 3500Hz. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio.
P AUDIO E 12- 200S
P AUDIO E 12- 200S
More Information
More Information
Technical Specification
Technical Specification
| Nominal diameter | 305 mm/12 in |
| Power rating | 400 W(AES) |
| Nominal impedance | 8Ω |
| Sensitivity | 96 dB |
| Frequency range | 45-3000 Hz |
| Chassis type | Cast aluminum |
| Magnet type | Ferrite |
| Magnet weight | 2.3 kg/81.4 oz |
| Voice coil diameter | 76.2 mm/3 in |
| Coil material | CCA-W |
| Former material | Glass fiber |
| Cone material | Paper |
| Surround material | Cloth |
| Suspension | Single |
| X-max | 3.4 mm/0.13 in |
| Gap depth | 10 mm/0.39 in |
| Voice coil winding width | 16.8 mm/0.66 in |
| Packing dimension WxDxH (mm) | 355 x 355 x 195 |
| Net weight | 7.4 kg/16.3 lb |
| Shipping weight | 8.2 kg/18.1 lb |
