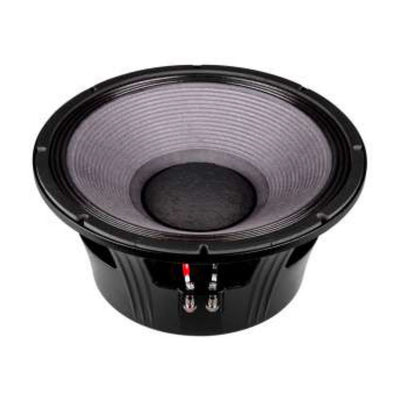

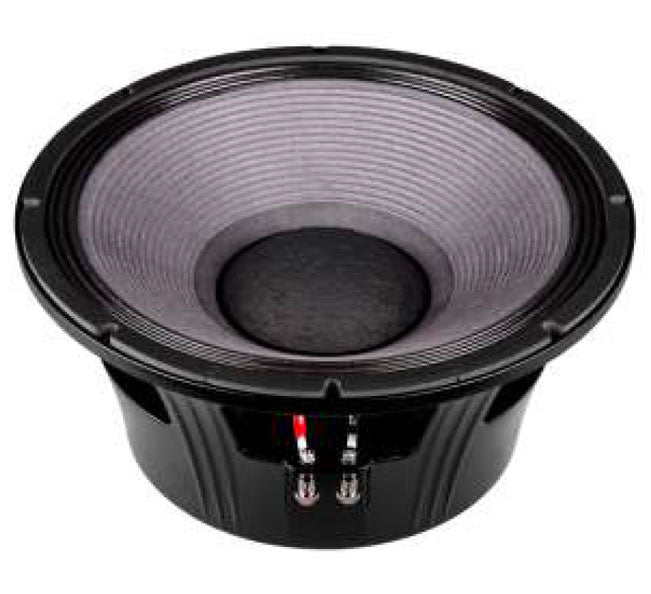

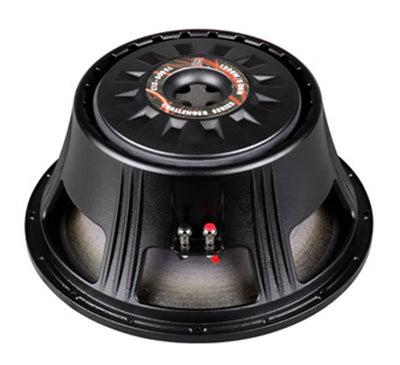

P AUDIO C15- 600EL

P AUDIO C15- 600EL

The P.Audio C15-600EL is a high output wide bandwidth transducer. The C15-600EL is an upgraded design that features many of P.Audio's new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The C15-600EL has been optimized for use in two way or three way sound reinforcement systems and has a rated operating range of 55Hz to 2000Hz.

More Information

  • 3.9” Large FormatVoice Coil
  • 4800 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Precision Rectangular Ribbon Wire
  • Double Spider Suspension
  • Integrated Demodulation Rings
  • Die Cast Aluminum Chassis

Technical Specification

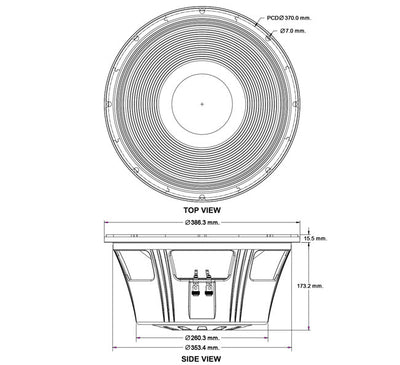

  Nominal diameter   381 mm/15 in
  Power rating   1200 W(AES)
  Nominal impedance   8Ω
  Sensitivity   96 dB

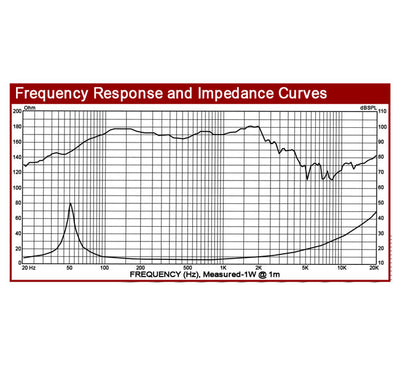

  Frequency range   55-2000 Hz
  Chassis type   Cast aluminum
  Magnet type   Ferrite
  Magnet weight   3.17 kg/111.8 oz
  Voice coil diameter   99.3 mm/4 in
  Coil material   CCA-R
  Former material   Glass fiber
  Cone material   Paper
  Surround material   Cloth
  Suspension   Double
  X-max   5.25 mm/0.21 in
  Gap depth   15 mm/0.59 in
  Voice coil winding width   25.5 mm/1 in
  Packing dimension WxDxH (mm)   430 x 430 x 235
  Net weight   13.2 kg/29.1 lb
  Shipping weight   14.2 kg/31.3 lb
