P AUDIO C15 400F

P AUDIO C15 400F

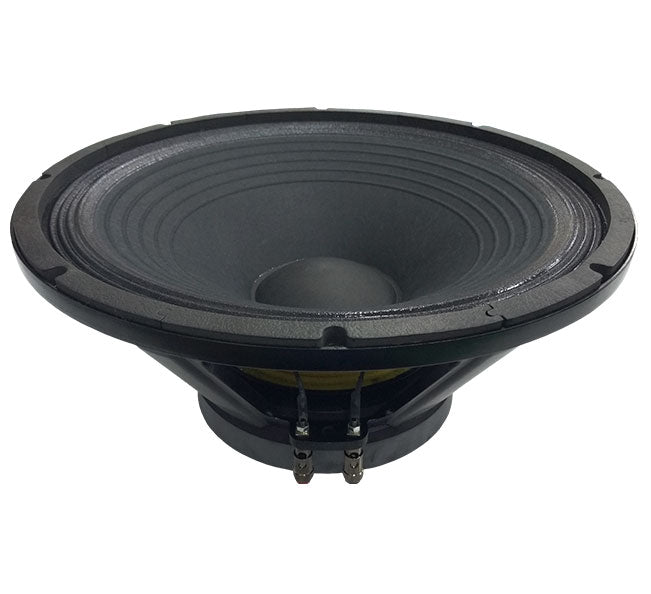

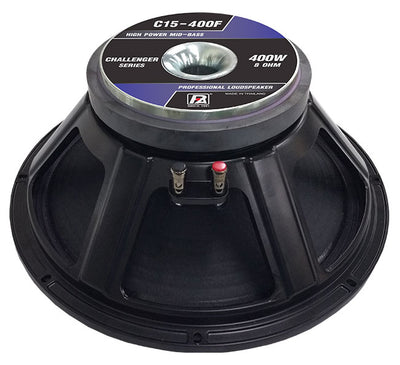

The P.Audio C15-400F is a high performance wide bandwidth transducer. The C15-400F is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The C15-400F has been optimized for use in two way or three way sound reinforcement systems and has an operating range of 40Hz to 2500Hz.

More Information

  • 3” Voice Coil
  • 1600 Watts Peak Power Handling
  • Ferrite Magnetics
  • Die Cast Aluminum Chassis

Technical Specification



  Nominal diameter   381 mm/15 in
  Power rating   400 W(AES)
  Nominal impedance   8Ω
  Sensitivity   98 dB
  Frequency range   40-2500 Hz
  Chassis type   Aluminum
  Magnet type   Ferrite
  Magnet weight   90.3 oz
  Voice coil diameter   76.2 mm/3.0 in
  Coil material   SV-W
  Former material   KSV
  Cone material   Paper
  Surround material   Treated Cloth
  Suspension   Single
  Spider   Cotton
  Gasket   EVA
  Packing dimension WxDxH (mm)   415 x 415 x 210
  Net weight   8.2 kg
