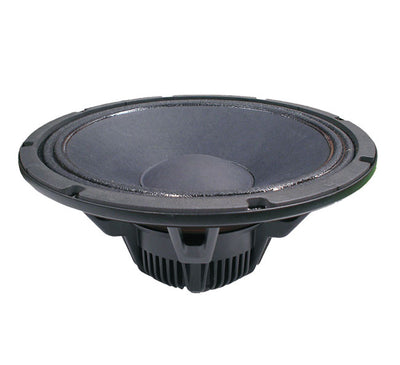

The P.Audio C12-400N is a high performance wide bandwidth transducer. The C12-400N is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 12 inch (305mm) diameter piston will produce extremely high sound pressure levels in the mid band and upper mid frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The C12-400N has been optimized for use in two way or three way sound reinforcement systems. The transducer is also ideal as a mid bass driver for ultra high performance system designs and has an operating bandwidth of 45Hz to 3000Hz.
P AUDIO C-12 400N
P AUDIO C-12 400N
More Information
More Information
Technical Specification
Technical Specification
| Nominal diameter | 305 mm/12 in |
| Power rating | 400 W(AES) |
| Nominal impedance | 8Ω |
| Sensitivity | 96 dB |
| Frequency range | 60-4000 Hz |
| Chassis type | Cast aluminum |
| Magnet type | Neodymium |
| Magnet weight | 0.16 kg/5.5 oz |
| Voice coil diameter | 76.2 mm/3.0 in |
| Coil material | AL-W |
| Former material | Glass fiber |
| Cone material | Paper |
| Surround material | Cloth |
| Suspension | Single |
| X-max | 4.75 mm/0.19 in |
| Gap depth | 8 mm/0.31 in |
| Voice coil winding width | 17.5 mm/0.69 in |
| Packing dimension WxDxH (mm) | 355 x 355 x 200 |
| Net weight | 3.1 kg/6.8 lb |
| Shipping weight | 4.0 kg/8.8 lb |
