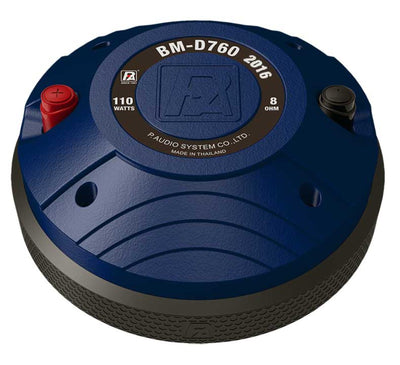

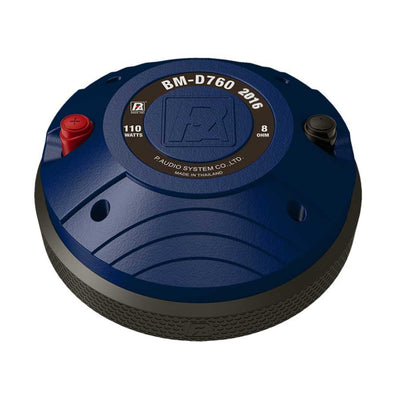

The P.Audio BM-D760 is a state of the art high output compression driver. Advanced engineering and manufacturing methods have produced an extremely reliable and wide bandwidth device that also features very high fidelity.

The BM-D760 is a large format titanium based diaphragm assembly mated to a close spaced circumferential phase plug geometry. The voice coil is a rectangular geometry high temperature aluminum to insure extended high frequency response.

More Information

The large 2 inch (51mm) throat exit makes the 760 an excellent choice for high sound pressure level performance. This large throat insures low distortion and high intelligibility, particularly thru the critical upper vocal range. High fidelity thru the upper vocal range translates to increased intelligibility and clarity in this critical upper vocal range. This throat diameter is an industry standard for high output vocal range compression drivers and will mate to a variety of P.Audio 2 inch throat horns as well as many commercially available high frequency horns.

The Ferrite based permanent magnetic system produces a very high efficiency to weight and size ratio. This makes the BM-D760 ideal for high level professional touring applications as well as high level fixed installation systems.

Technical Specification


  Throat Exit Diameter   2 in
  Power rating   110 W(AES)
  Nominal impedance   8Ω
  Sensitivity   112 dB
  Frequency range   1200-20000 Hz
  Recommended Crossover   800 Hz
  Voice coil diameter   72.2 mm/ 3 in
  Voice coil material   Edge Wound Wire
  Aluminium Ribbon
  Voice coil former   Resin Bonded Kapton
  MountingType   Bolt on
  Magnet   Strontium Ferrite
  Diapragm material   Titanium
  Net weight   4.8 kg
  Shipping weight   5.1 kg
