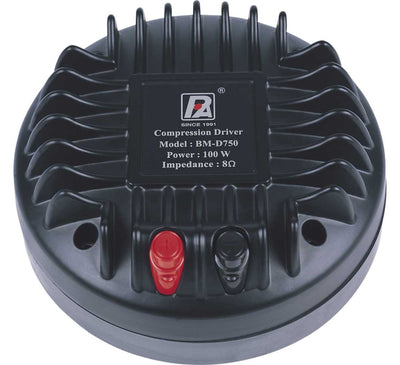

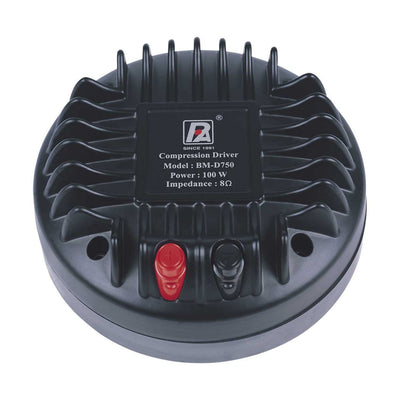

The P Audio BM-D750(II) is a state of the art high output compression driver. Advanced engineering and manufacturing methods have produced an extremely reliable and wide bandwidth device that also features very high fidelity.

The BM-D750(II) is a large format titanium based diaphragm assembly mated to a close spaced circumferential phase plug geometry. The voice coil is a rectangular geometry high temperature aluminum to insure extended high frequency response.

The large 2 inch (51mm) throat exit makes the 750 an excellent choice for high sound pressure level performance. This large throat insures low distortion and high intelligibility, particularly thru the critical upper vocal range. High fidelity thru the upper vocal range translates to increased intelligibility and clarity in this critical upper vocal range. This throat diameter is an industry standard for high output vocal range compression drivers and will mate to a variety of P Audio 2 inch throat horns as well as many commercially available high frequency horns.

The Ferrite based permanent magnetic system produces a very high efficiency to weight and size ratio. This makes the BM-D750(II) ideal for high level professional touring applications as well as high level fixed installation systems.

More Information

  • Large Format Wide Bandwidth Compression Driver
  • 2" Exit Diameter
  • 600 Watts Peak Power Handling
  • Pure Titanium Based 4" Diaphragm Diameter
  • Bolt On Mounting
  • Ferrite Magnetics

Technical Specification


  • Throat Diameter  2.0 inch (50mm)
  • Diaphragm Diameter  3.0 inch (76mm)
  • Nominal impedance  8Ω
  • Voice Coil DC Resistance  6.2Ω
  • Power Handling  100Watt
  • Sound Pressure Level (1W@1M)  (Loaded with 90x40 Horn)  112 dB
  • Mounting Type  Bolt On
  • Magnet  Ferrite
  • Diaphragm Material  Titanium
  • Recommended Crossover  1kHz or higher (12dB/Oct slope)
  • Net Weight  4.9kg (10.8lbs) 1pc
  • Gross Weight  5.1kg (11.2lbs) 1pc
