P AUDIO 15 BM 500 B

P AUDIO 15 BM 500 B

The P.Audio 15BM-500B is a high output wide bandwidth transducer. The 15BM-500B is a highly upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer has a rated bandwidth of 45Hz to 3500Hz. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The 15BM-500B has been optimized for use in two way or three way sound reinforcement systems.

More Information

  • 3.25” Voice Coil
  • 2000 Watts Peak Power Handling
  • Ferrite Magnetics
  • Precision Circular Inside/Outside Wire Geometry
  • Die Cast Aluminum Chassis

Technical Specification

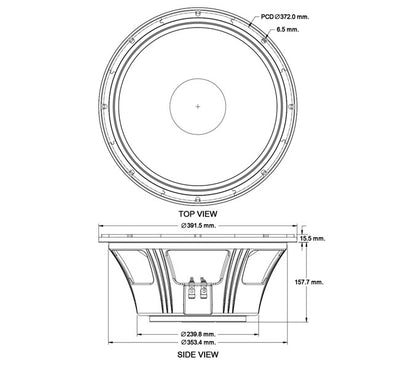

  Nominal diameter   381 mm/15 in
  Power rating   500 W(AES)
  Nominal impedance   8Ω
  Sensitivity   97 dB

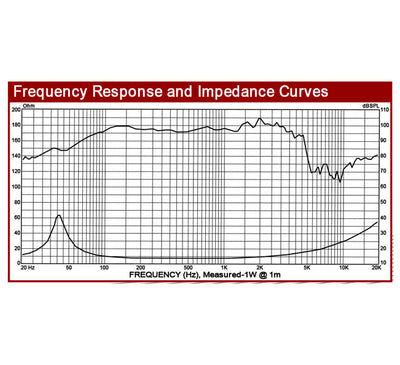

  Frequency range   45-3500 Hz
  Chassis type   Cast aluminum
  Magnet type   Ferrite
  Magnet weight   2.9 kg/103.9 oz
  Voice coil diameter   82.5 mm/3.25 in
  Coil material   CCA-W
  Former material   Glass fiber
  Cone material   Paper
  Surround material   Cloth
  Suspension   Single
  X-max   4.8 mm/0.19 in
  Gap depth   10.0 mm/0.39 in
  Voice coil winding width   19.6 mm/0.77 in
  Packing dimension WxDxH (mm)   430 x 430 x 220
  Net weight   10.2 kg/22.5 lb
  Shipping weight   11.3 kg/24.9 lb
