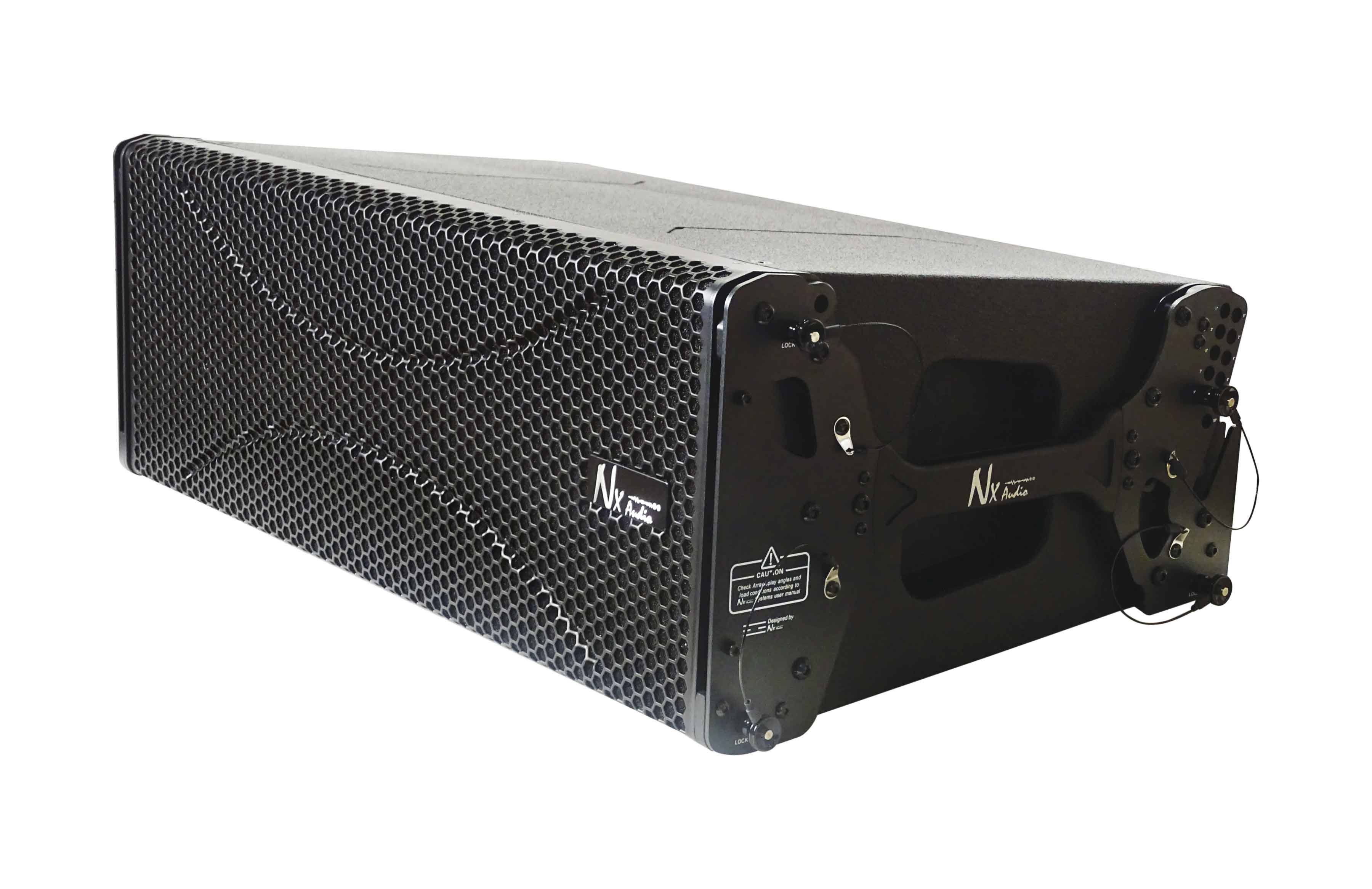

Product details

More Information
  • Large Scale, 2-way Line Array System
  • Very High Output SPL & Sensitivity
  • Adjustable inter-cabinet angle 0° to 10°.
  • Integrated Rigging System (IRS) Quick Setup
  • Cabinet Material: Multilayer plywood CNC made
Technical Specifications

Power Handling

  • Rated Power (AES): 900 W
  • Program Power: 1800 W

Frequency & Coverage

  • Frequency Response (-10 dB): 60 Hz – 20 kHz
  • Horizontal Coverage: 90°
  • Vertical Coverage (Single Cabinet): 10°
  • Vertical Coverage (Array): Splay-angle dependent
  • Angle Adjustment: 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, 10°

Output Performance

  • SPL @ 1 m (Continuous / Peak): 127 dB / 133 dB

Transducers

  • HF Driver: 3.0" Voice Coil
  • LF Drivers: 2 × 10" woofers, 3.0" Voice Coil

Electrical

  • Rated Impedance: 8 Ω
  • Crossover Mode: Passive / Bi-Amp
  • Crossover Point: 1.3 kHz
