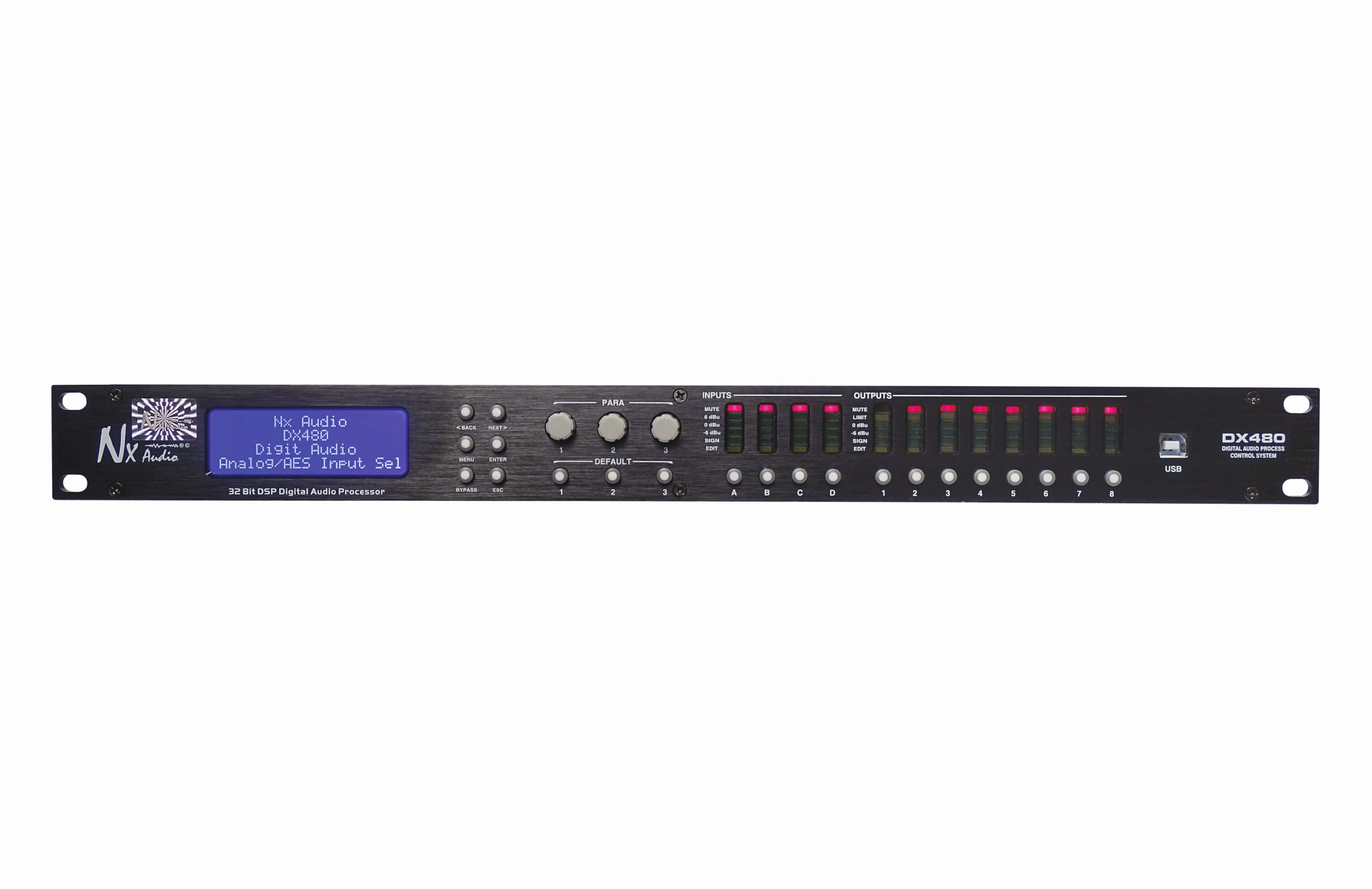

The DX series High End Digital Speaker Management systems combine an outstanding full 96kHz DSP processor with Floating 32 Bit AD/DA Converters to provide Superb Sonic Performance. The DX480 offers 4 analog inputs, 8 analog outputs and 2 AES/EBU inputs and the DX260 has 2 analog inputs, 6 analog outputs and a AES/EBU inputs. Easy setup is assured with intuitive front panel controls and an interactive LCD display for local setup, or a dedicated PC control interface for remote monitoring and configuration via USB or RS485 and dedicated control software. The Dx Series supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. Designed for maximum versatility, these units provide all the processing and control necessary for both live and fixed installation use.

Enquire Now

Product details

More Information
  • Convenient front panel controls or remote operation
  • 8 band parametric equalization per input channel
  • 6 band parametric equalization per output channel
  • Adjustable Delay time up to 1000 ms for every input and output channel
  • Noise gate and phase on each input
  • Crossover filters with slopes from 12inch to 48 dB/ Octave including Butterworth, Bessel, Linkwitz-Riley
  • Limiter and phase of each output
  • Full matrix routing where inputs may be routed/mixed to any output
  • 30 Presets with Copy function
  • Password Protect Security
  • Front Panel USB connector for direct PC communications

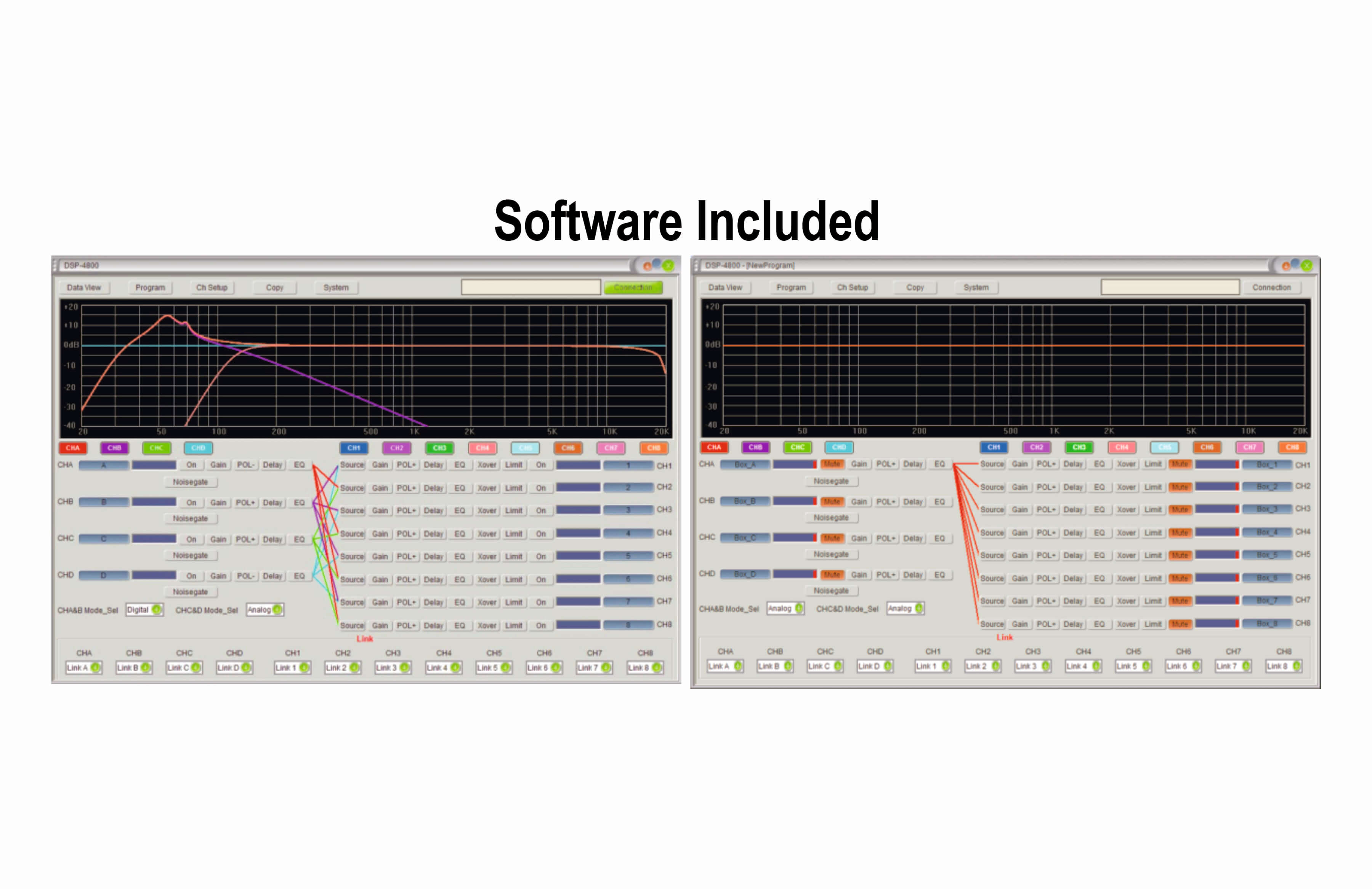

  • RS485 connection for system setup, monitoring and control via fully manageable remote PC software
Technical Specifications

System Overview

  • System Type: Loudspeaker Management System
  • Application: Professional Audio / PA System Processing

Inputs & Outputs

  • Inputs:
    4 × Electronically Balanced XLR Inputs
    2 × Electronically Balanced XLR Inputs
  • Outputs:
    8 × Electronically Balanced XLR Outputs
    6 × Electronically Balanced XLR Outputs
    Audio Performance
  • Frequency Response: 20 Hz – 20 kHz (-0.5 dB at 20 Hz & 20 kHz)
  • Dynamic Range: >110 dBA
  • Total Harmonic Distortion:
    0.005%
    0.02% @ 1 kHz, +18 dBm

DSP & Processing

DSP Delay:
Up to 1000 ms per input channel
Up to 1000 ms per output channel

AD/DA Conversion: 32-bit, 96 kHz
Presets: 30 User Presets

Filter & Crossover

Crossover Filters:
Butterworth: 12 / 18 / 24 / 48 dB per octave
Bessel: 12 / 24 dB per octave
Linkwitz-Riley: 12 / 24 / 48 dB per octave


Controls & Interface

Front Panel: Comprehensive front-panel controls with quick mute functionality

Physical Specifications

  • Dimensions (H × W × D): 44 × 483 × 188 mm
