Product details

More Information

Features:

  • Built-in WiFi for access to streaming services: Amazon Music Unlimited, TIDAL, Beatport, Beatsource, SoundCloud Go+, and Dropbox
  • Engine DJ embedded operating system for laptop-free performances

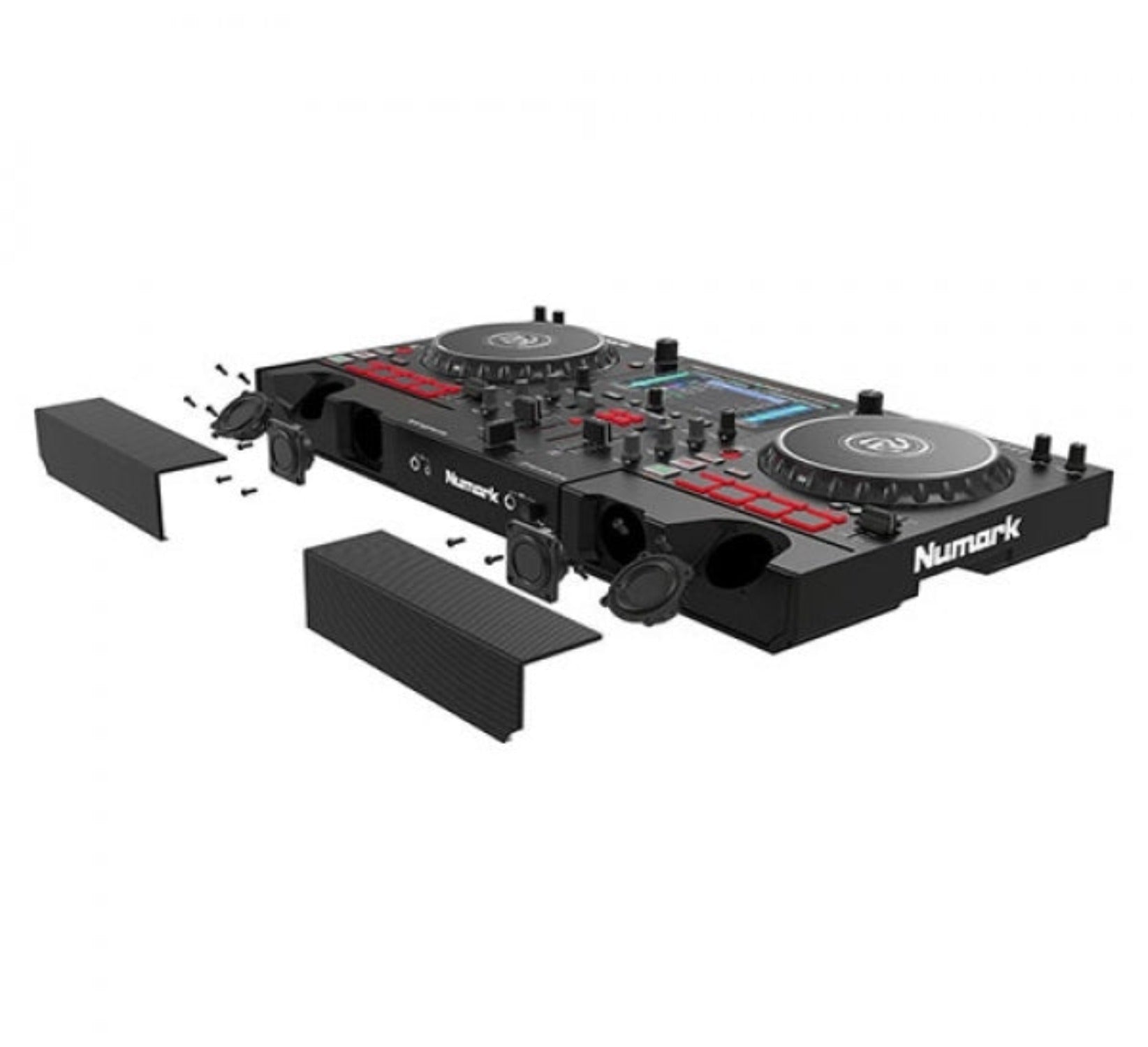

  • Built-in speakers with volume control for home use, practicing, and monitor applications
  • Engine Lighting embedded lighting control for Philips Hue smart home and DMX lighting
  • Computer Mode for use as a software controller for Serato DJ and Virtual DJ
  • 7” multi-gesture high-definition touchscreen
  • 6” capacitive-touch scratch wheels with Smart Scratch feature for on-beat scratching
  • 4 dual-layer performance pads on each deck
  • 4 performance mode pads on each deck (Cue, Saved Loop, Auto Loop, Roll)
  • FX section with 4 effects and 2 toggle switches
  • Large Filter knob on each deck
  • Pitch Bend buttons and dedicated Pitch Slider
  • Selectable Pitch ranges of 4%, 8%, 10%, 20%, 50%, and 100%
  • Dedicated Sync, Cue/Stop, and Play/Pause buttons
  • 3-band EQ on each deck
  • 2 USB inputs
  • 1 SD Card input
  • Balanced XLR Main outputs
  • RCA Main outputs
  • ¼” microphone input
  • ¼” and 1/8” headphone output jacks
Technical Specifications

Specifications:

DimensionsWidth x Depth x Height: 22.3” x 11.2” x 2.9” / 566 x 284 x 74 mm
Weight: 8.11 lbs. / 3.68 kg

AudioMain OutputsFrequency Response: 20 Hz – 20 kHz +/- 1 dB
Dynamic Range: > 114 dB (A-weighted)
Signal-to-Noise Ratio: > 94 dB (A-weighted)

HeadroomMic: > 16 dB
Outputs: > 16 dB
Channel Separation: < -110 dB (1 kHz, unity)

T.H.D.Line: < 0.01% (1 kHz, unity)
Microphone: < 0.05% (1 kHz, unity)

SpeakersFrequency Response: 20 Hz – 20 kHz +/- 1 dB

Analog InputMicrophone: -40 dBu (unity) / -60 dBu (minimum)

Analog OutputMaster, Balanced: +20 dBu (maximum) / +4 dBu (unity)
Master, Unbalanced: +16 dBu (maximum) / 0 dBu (unity)

Headphone Output:< 30 mW

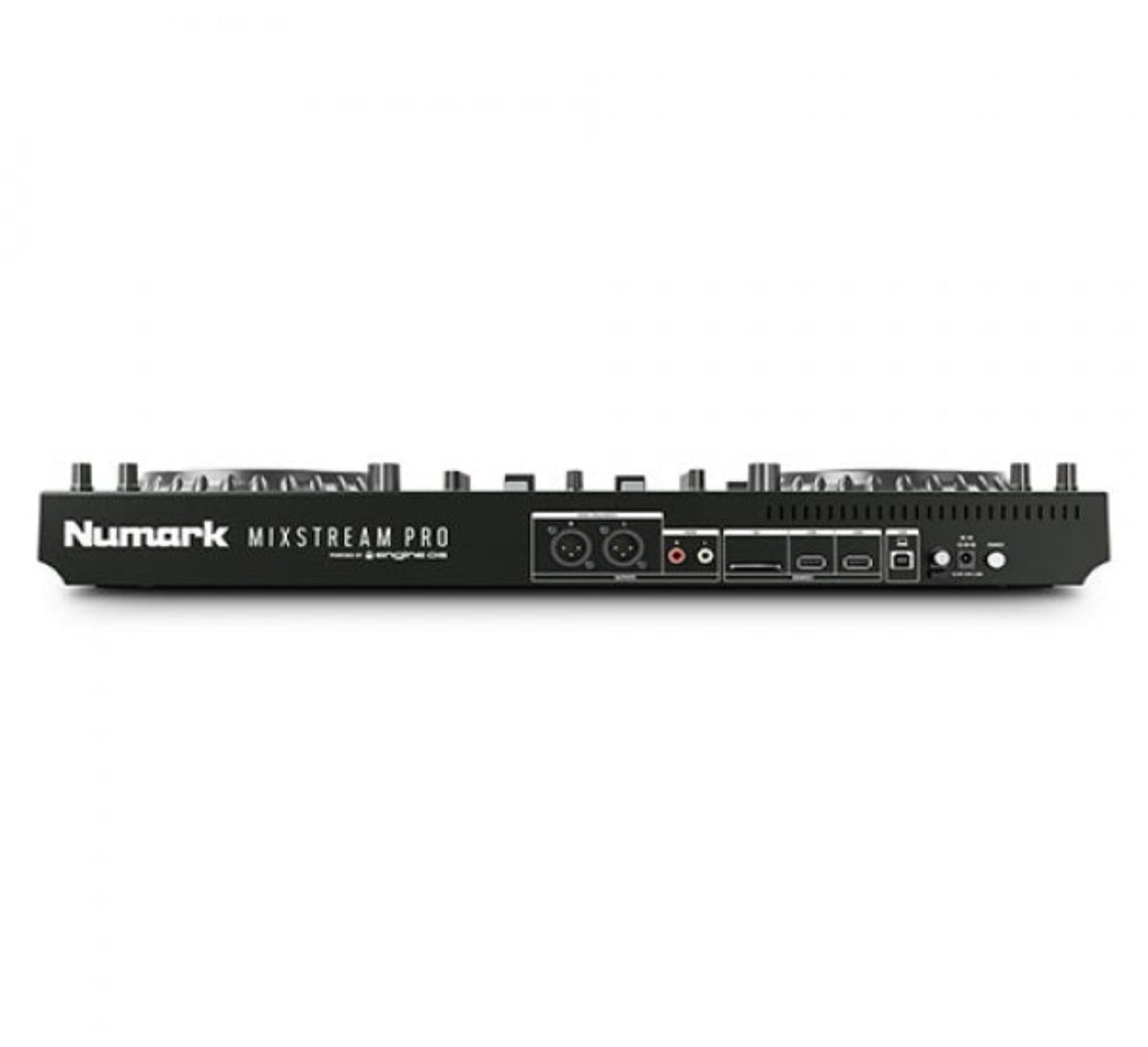

ConnectionsAudio Outputs2 XLR outputs (main left/right,balanced)
1 RCA output pair (main left/right, unbalanced)
1 1/4” (6.35 mm) stereo output (headphones)
1 1/8” (3.5 mm) stereo output (headphones)

Audio Inputs1 1/4” (6.35 mm) microphone input

Other2 USB port (for USB drives)
1 USB port (to computer)
1 SD card slot
1 power adapter input

Engine DJ (OS) Playable MediaMedia TypesSD, SDHC, SDXC
USB mass-storage devices (flash memory, external HDD enclosures)

File SystemsexFAT (recommended)
FAT32

File FormatsAAC/M4A
AIF/AIFF (44.1–192 kHz, 16–32-bit)
ALAC
FLAC
MP3 (32–320 kbps)
MP4
Ogg Vorbis
WAV (44.1–192 kHz, 16–32-bit)

PowerConnection: DC, Center Positive
Voltage: 12.0 V 3.0 A
