The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
More Information
Features & Benefits
Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
Only 3 parts, easy to assemble
High impact materials – long-lasting and reliable
Easy and extremely precise locking system "Quick Lock"
1 piece strain relief, chuck for 6 to 10 mm cable O.D.
Improved grip on latch
Mates with 4-pole chassis connector as well and makes contact with +1/-1
Certified according to IEC61984
Suitable for IEC62368-1 compliant devices
Technical Specification
Technical Information
Product
Title

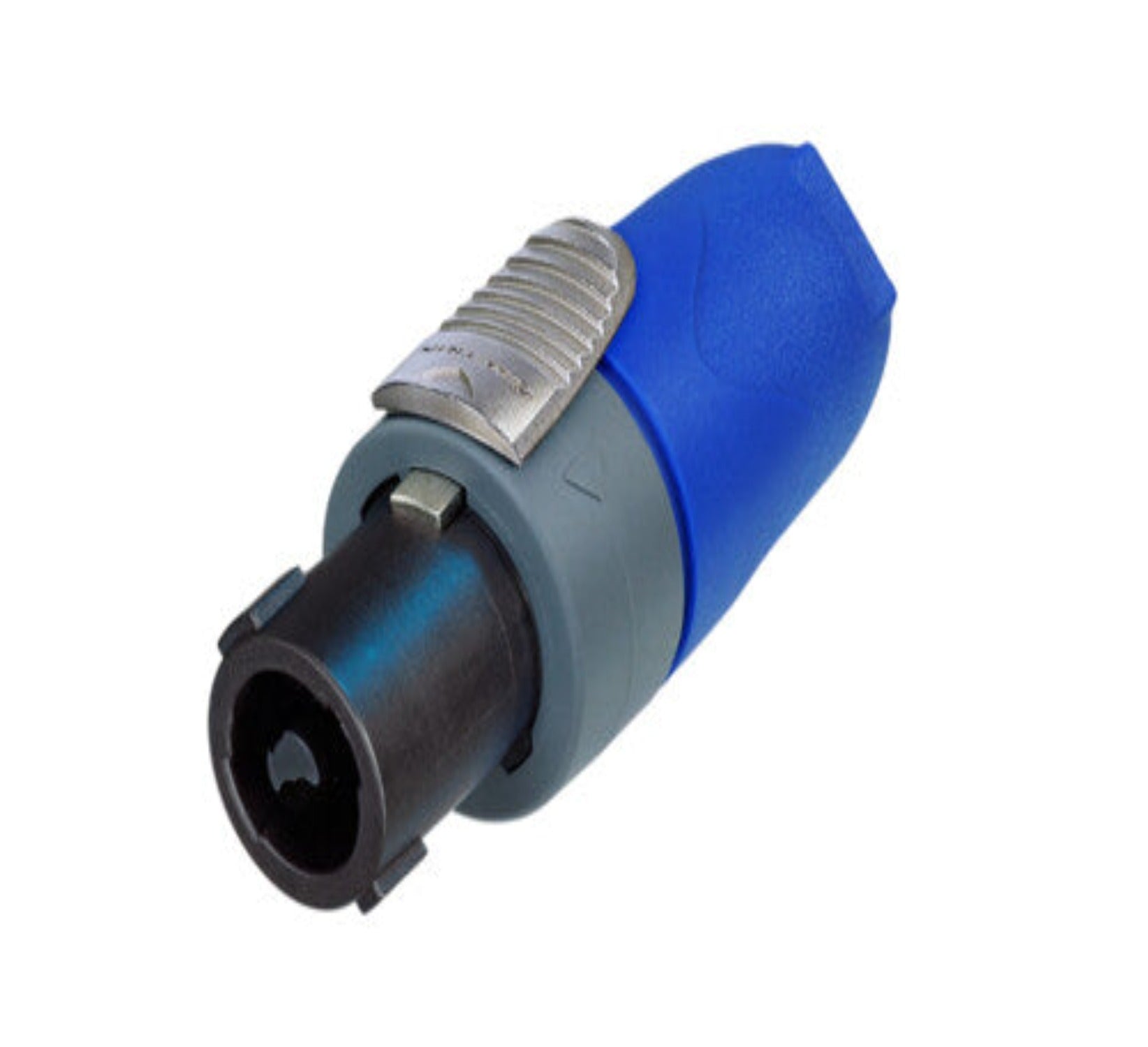

NL2FX
Connection Type
speakON
Gender
female
Electrical
Contact resistance
< 2 mΩ (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
40 A rms continuous
Rated current per contact
50 A audiosignal, duty cycle 50 %
Rated voltage
250 V ac
Attention
speakON is not to be used as an AC mains or power supply connector!
