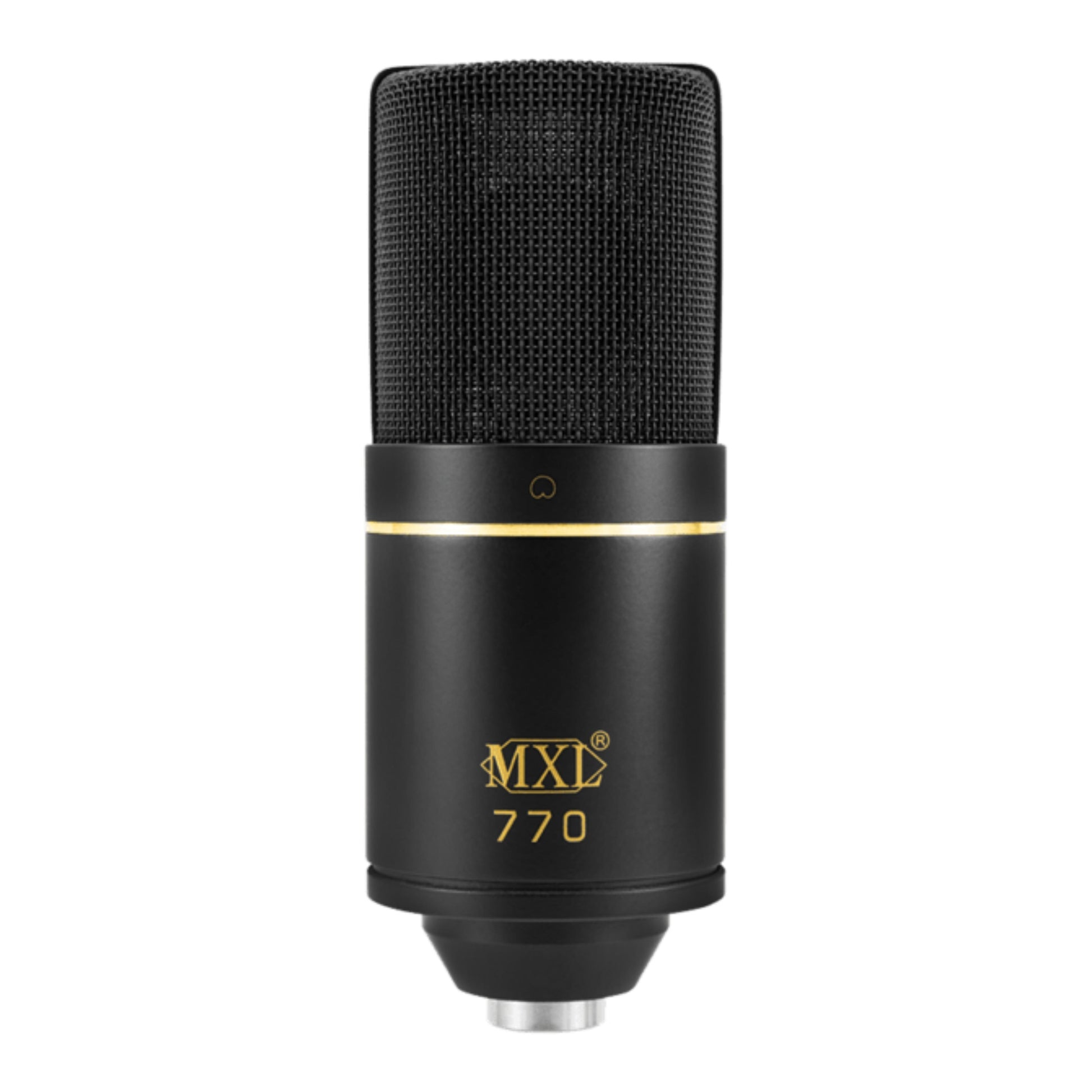

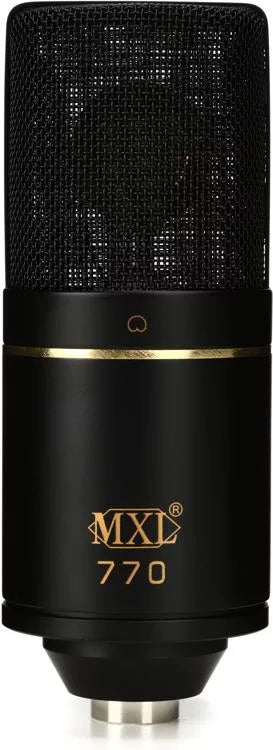

MXL 770 Large-diaphragm Condenser Microphone

MXL 770 Large-diaphragm Condenser Microphone

An easy choice for producers, musicians, and content creators looking to add a reliable, high-quality condenser to their gear vault, the MXL 770 is a no-nonsense large-diaphragm condenser microphone offering superior recording capabilities for vocals and instruments alike. By utilizing a FET preamp and transformer-free balanced output, the 770 captures audio with a fantastic balance across all frequencies and a clear, open high end. Toggle on the 770's low-frequency roll-off switch, and you'll bask in a pure, untainted sound free from excessive noise and bass rumble. Its natural and versatile cardioid pickup pattern works exceptionally well when tracking vocalists, stringed instruments, and pianos, imbuing each take with a beautiful warmth and clarity that belie its affordable price tag. And with its built-in -10dB attenuation switch, you can be sure that the 770 is more than capable of holding its own against any sound source imaginable. Its usability goes far beyond music, making it an ideal mic choice for recording podcasts, voiceovers, and any other application where top-quality sound is crucial. Plus, each 770 comes in a rugged hardshell case with a custom foam interior along with a sturdy and stable shockmount — all you need is a mic stand and XLR cable, and you're ready to record like a pro!

MXL Microphones

Since 1998, MXL Microphones — a division of Marshall Electronics — has designed affordable, high-quality microphones for the home and project studio. Over its two-decade-plus run, MXL has proven a consistent innovator in the studio, broadcast, streaming, and worship microphone markets. In fact, ask a handful of experienced Sweetwater studio engineers, and you'll discover that many of us cut our teeth recording on MXL condensers mics. Microphones like the 770 large-diaphragm condenser are able to deliver professional results without the top-shelf price tag. And since many MXL microphones come internally wired with premium Mogami cable (another Marshall Electronics brand), you can be sure every MXL you buy from Sweetwater is rated to deliver quiet, consistent performance you can trust. In fact, we stand behind it with our exclusive extended 2-year warranty.

More Information


  • Top-notch large-diaphragm condenser mic perfect for beginners and experts alike
  • Multipurpose design and cardioid pickup pattern works great for recording vocals, stringed instruments, pianos, podcasts, and video content
  • Imbues recordings with warmth, richness, and clarity
  • FET preamp and transformer-free output deliver a balanced sound
  • Low-frequency roll-off switch removes excessive noise and rumble
  • Built-in -10dB attenuation switch handles sound sources of all kinds

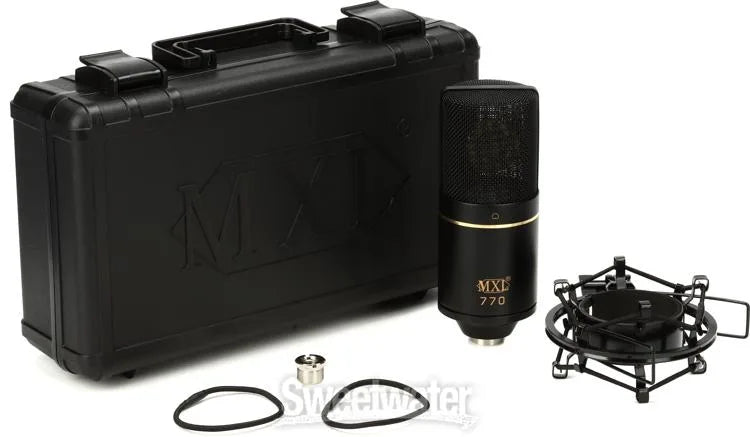

  • Includes shockmount and custom-fitted hardshell case

Technical Specification

  • Microphone Type:Pressure Gradient Condenser
  • Polar Pattern:Cardioid
  • Diaphragm Size:0.87" (22mm)
  • Frequency Response:30Hz-20kHz
  • Max SPL:137dB SPL (0.5% THD)
  • Output Impedance:150 ohms
  • Sensitivity:15mV/Pa
  • Signal to Noise Ratio:74dB (A weighted)
  • Self Noise:20dB (A weighted)
  • Low Cut Filter:150Hz (-6dB/octave)
  • Pads:-10dB
  • Color:Black with Black Grill
  • Connector:XLR
  • Power Source:48V phantom power (±4V)
  • Dimensions:6.22" x 2.32"
  • Weight:1 lb.
  • Included Accessories:Shockmount, Hardshell Case
