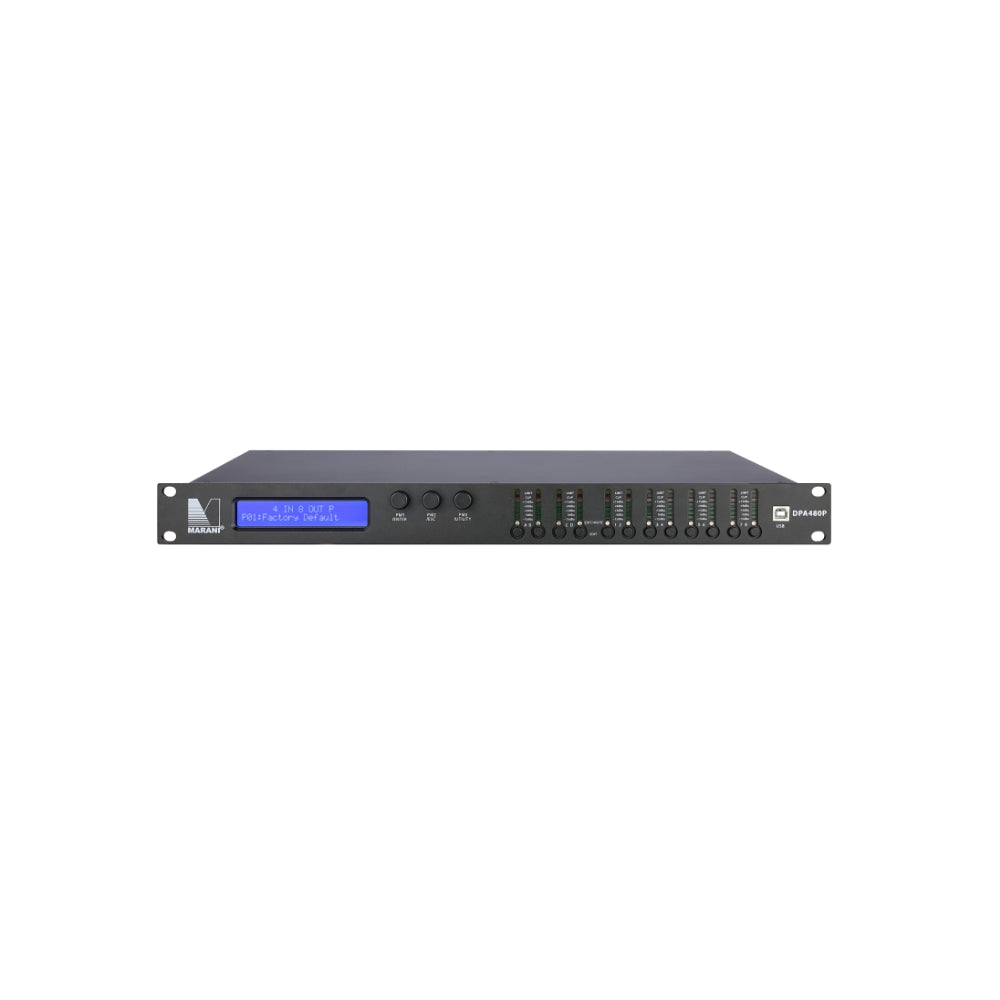

DPA480P is a cost-effective 4-IN/8-OUT digital speaker management system. Designed to be catered for any crossover configuration, it provides the suitable processing and control necessary for both live and fixed installation use. It offers 4 analog inputs, 8 analog outputs, managed by a powerful MARANI®  DSP Engine, in addition to high performance 24 bit AD/DA Converters.

Each input channel provides a choice of EQ with 30-band Parametric EQ, Gain control, Noise Gate Function, RMS Compressor and configurable Delay. Each output offers up to 7-band of parametric equalization, in addition to the crossover filters which themselves provide slopes from 6dB/Octave up to 48dB/Octave. Each output path also features Peak Limiter, HP/LP Filters and driver alignment Delay.

The DPA480P supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. For remote configuration and control the DPA480P can be connected via USB or RS485 connections. The control remote PC software allows simultaneous control up to 32 units, setting all parameters and showing real time levels.

More Information

Outstanding Performance

Excellent sonic performance with 24bit high end converters coupled with 96kHz sample rate

4 inputs, 8 outputs with full matrix mixing

Top-grade DSP Engine

30 band parametric equalization per input channel

7 band parametric equalization per output channel

Each band can be switched to Bell, Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass filters

Crossover filters with slopes from 6dB/Octave up to 48dB/ Octave including Butterworth, Bessel, Linkwitz-Riley

Each output features a precision dynamic range controller composed of a Peak Limiter

Adjustable Delay time up to 420.998 ms for every input and up to 128.998 ms for each output channel


Direct PC/Network Connection


Front panel USB connector for direct PC communications

RS485 connection for system setup, monitoring and control via fully manageable remote PC software


Front panel interactive LCD display for local access and configuration

Front panel 7-LED level meter indicators per channel

Simultaneous control up to 32 units via PC software

Up to 24 storable user presets

Security Lockout

Technical Specification


Analog Input 4 x XLR electronically balanced
Analog Output 8 x XLR electronically balanced
Minimun Load 150 ohm
THD+N 0.004% at 1kHz +4dBu
S/N >106 dB A weight  22kHz BW
Frequency Response 20Hz – 20kHz; ±0.5dB
AD & DA Converters 24bit - 96kHz
DSP & Processing
DSP Resolution 24bit (data) x 24 bit (coeff.), 54 bit accumulation registers
96 bit precision on intermediate processing data
Parametric Equalization 30 filters per input
7 filters per output
Filter Type Bell, Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass Filters selectable
Filter Gain From -15dB up to +15dB by 0.5dB resolution steps
Input&Output Level From -18dB up to +18dB by 0.1dB resolution steps
Center Frequency Selectable with a 1/48th of octave resolution step from 20Hz up to 20kHz
Filter Q/BW Shelving/HP/LP Q from 0.1 up to 5.1;
BP/Notch/All Pass Q from 4 up to 104
Bell Q from 0.4 to 128
Crossover Section HPF/LPF Butterworth 6/12/18/24 dB per octave
Bessel 12/24 dB per octave
Linkwitz-Riley 12/24/36/48 dB per octave
Input Noise Gate Threshold from -80dBu up to -50dBu
Attack time from 1ms up to 1000ms;Release time from 10ms up to 1000ms
Input RMS Compressor Threshold from -14dBu up to +16dBu and Byp
Ratio 2:1~32:1; Knee: 0% ~ 100%; Makeup from -12dB to +12dB
Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec
Output Peak Limiter Threshold from -14dBu up to +16dBu and Byp
Attack time from 1ms up to 900ms;Release time from 0.1 sec up to 5 sec
Input/Output Polarity Normal (0°) / Inverted (180°)
Input/Output Mute Off / On
Delay 420.998 ms per input channel
128.998 ms per output channel
Device Presets 24 User Presets

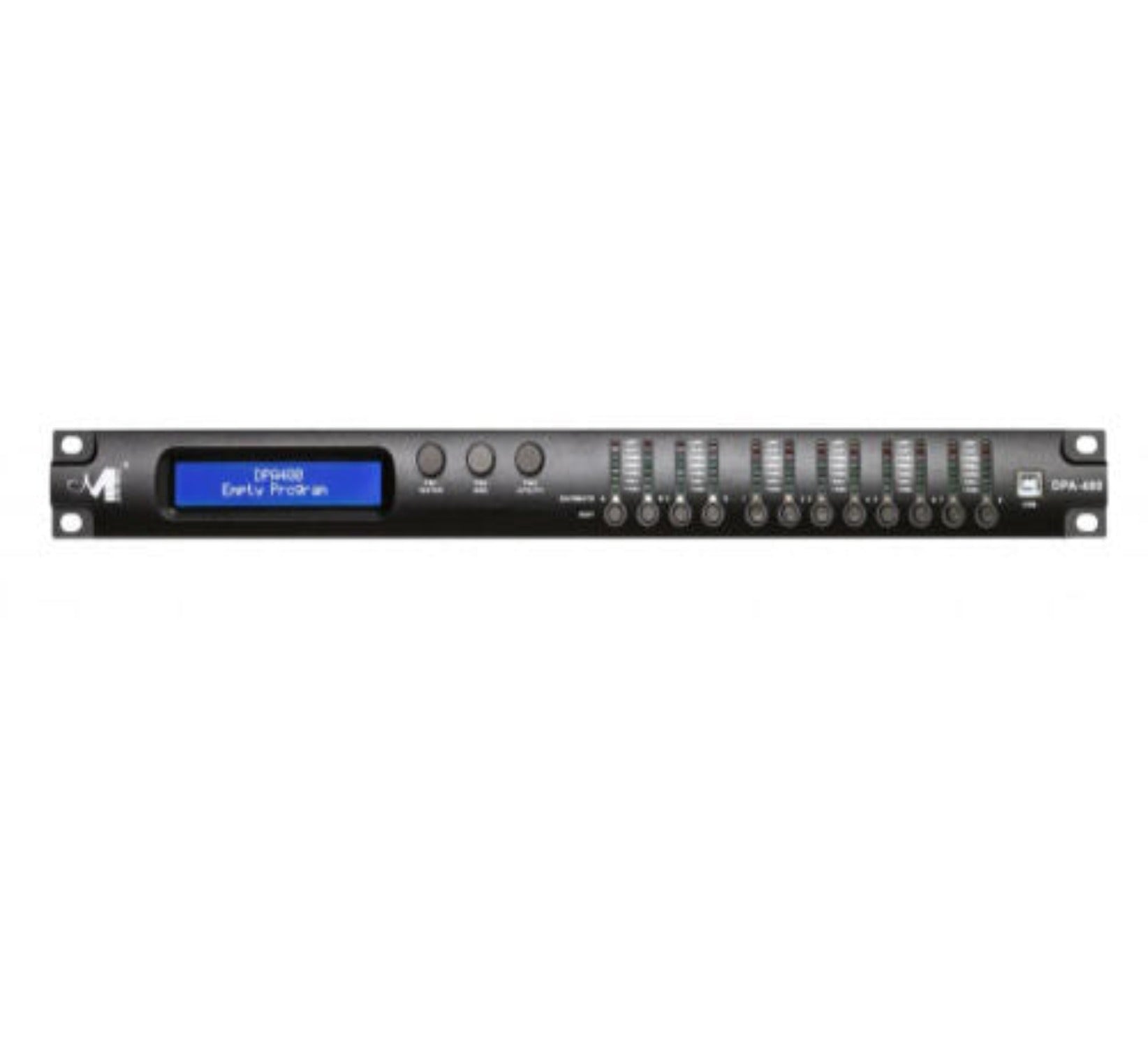

Front Panel 2x24 character LCD display with green LED backlight
7-LED meter per input channel -20dBu to +15dBu, clip
7-LED meter per output channel -15dBu to +15dBu, clip or limiter mode
Blue LED (Edit) and Red LED (Mute) per channel
NAV/PM1 Rotary encoder push button switch
PM2, PM3, ENTER, ESC, UTILITY push button switches
EDIT/MUTE push button per channel
USB type B connector

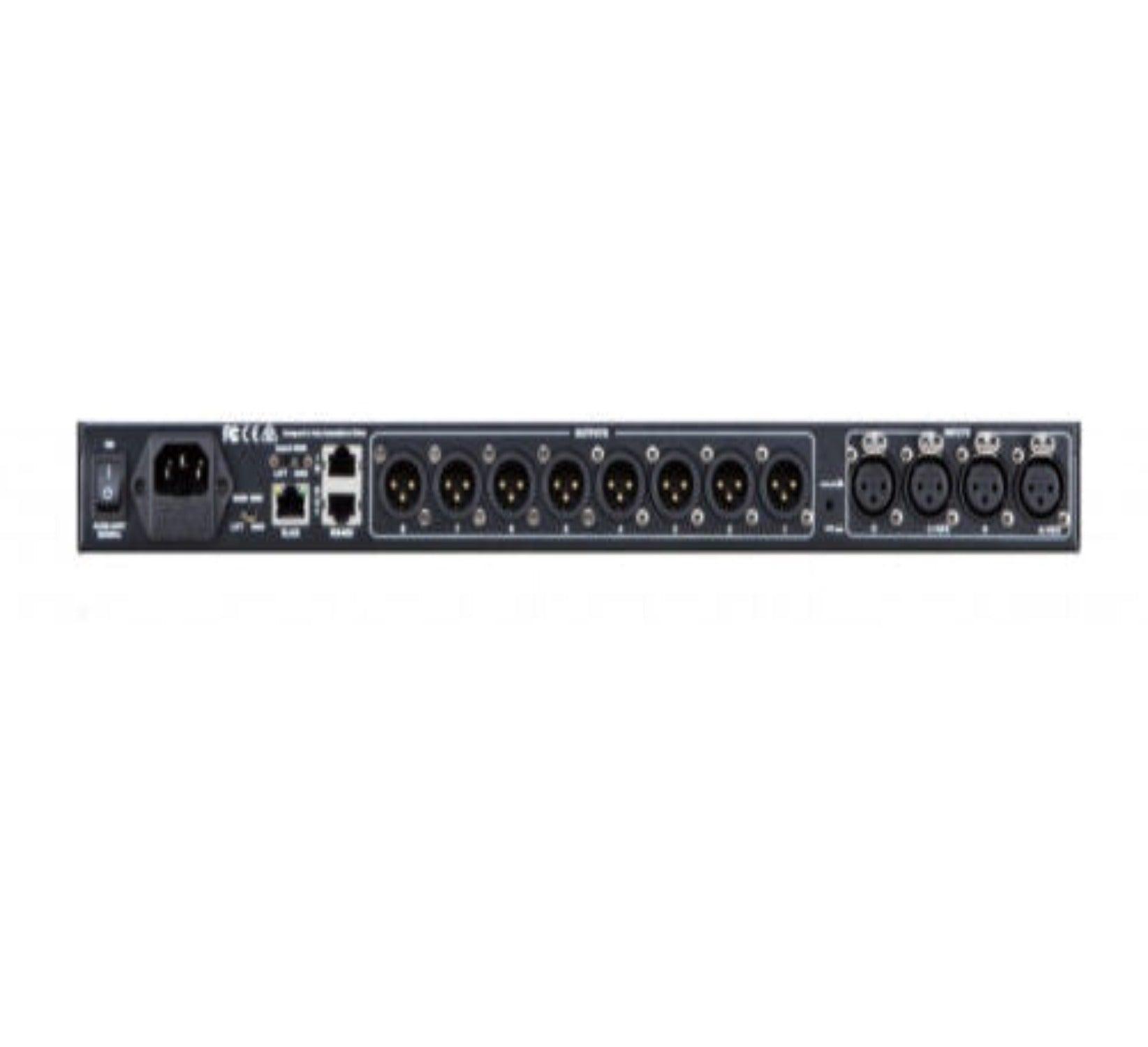

Rear Panel 4 x XLR female connector (Input)
8 x XLR male connector (Output)
2 x RS485 Connector
1 x Ground-lift toggle switch
IEC C13 16A connector; Power on/off switch
Main AC 90-240VAC (50/60Hz) – 40W
Dimensions 19”x 1.75”x 9” (483x44x225mm) 1RU
