DPA260P is a cost-effective 2-IN/6-OUT digital speaker management system. Designed to be catered for any crossover configuration, it provides the suitable processing and control for live application use. It offers 2 analog inputs, and 6 analog outputs, managed by a powerful MARANI®  DSP Engine, in addition to 24 Bit AD/DA Converters. Each input channel provides a choice of EQ with a 31-band Parametric EQ, gain control, noise gate function, RMS Compressor, Internal White/Pink Noise Generator and configurable delay. Each output offers up to 7-band of parametric equalization into the crossover filters which themselves provide slopes from 6dB/Octave up to 48dB/Octave. Each output path also features peak limiter and driver alignment delay.

The DPA260P supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. For remote configuration and control the DPA260P can be connected via USB or RS485 connections. The control remote PC software allows simultaneous control up to 32 units, setting all parameters and showing real time levels.

DPA260RTA is a special version that supports RTA functionality and digital input.
DPA260P+ & DPA260RTA+ is an upgraded advanced version.
Enquire Now

Product details

Technical Specifications
  • Analog Input: 2 x XLR electronically balanced

  • Analog Output: 6 x XLR electronically balanced

  • AD & DA Converters: 24-bit / 96kHz

  • Minimum Load: 150 Ohm

  • THD+N: 0.005% at 1kHz 0dBu / 0.01% at 1kHz 16dBu

  • Signal-to-Noise Ratio: >106 dBA

  • Frequency Response: 20Hz – 20kHz (±0.5dB)

  • DSP Engine: MARANI® DSP

  • DSP Resolution: 24×32-bit filtering process / 96-bit intermediate computation resolution

  • Parametric EQ: 31 filters per input / 7 filters per output selectable as Bell or Shelving

  • Filter Type: Bell, Shelving

  • Filter Gain: -15dB to +15dB in 0.5dB steps

  • Center Frequency: 20Hz – 20kHz with 1/24 octave resolution

  • Filter Q/BW: Q from 0.4 to 12 in 0.1 steps

  • Crossover HPF/LPF: Butterworth 6/12/18/24 dB, Bessel 12/24 dB, Linkwitz-Riley 12/24/36/48 dB per octave

  • Internal Noise Generator: White/Pink Noise, -30dBu to 0dBu

  • Input Noise Gate: Threshold from -90dBu to -60dBu

  • RMS Compressor: Threshold -14dBu to +16dBu / Ratio 2:1 to 100:1 / Knee 0% to 100%

  • Compressor Attack Time: 5ms to 200ms

  • Compressor Release Time: 0.1 sec to 3 sec

  • Delay: 420ms per input channel / 128ms per output channel

  • Ground Noise: -88dBu

  • Device Presets: 32 User Presets

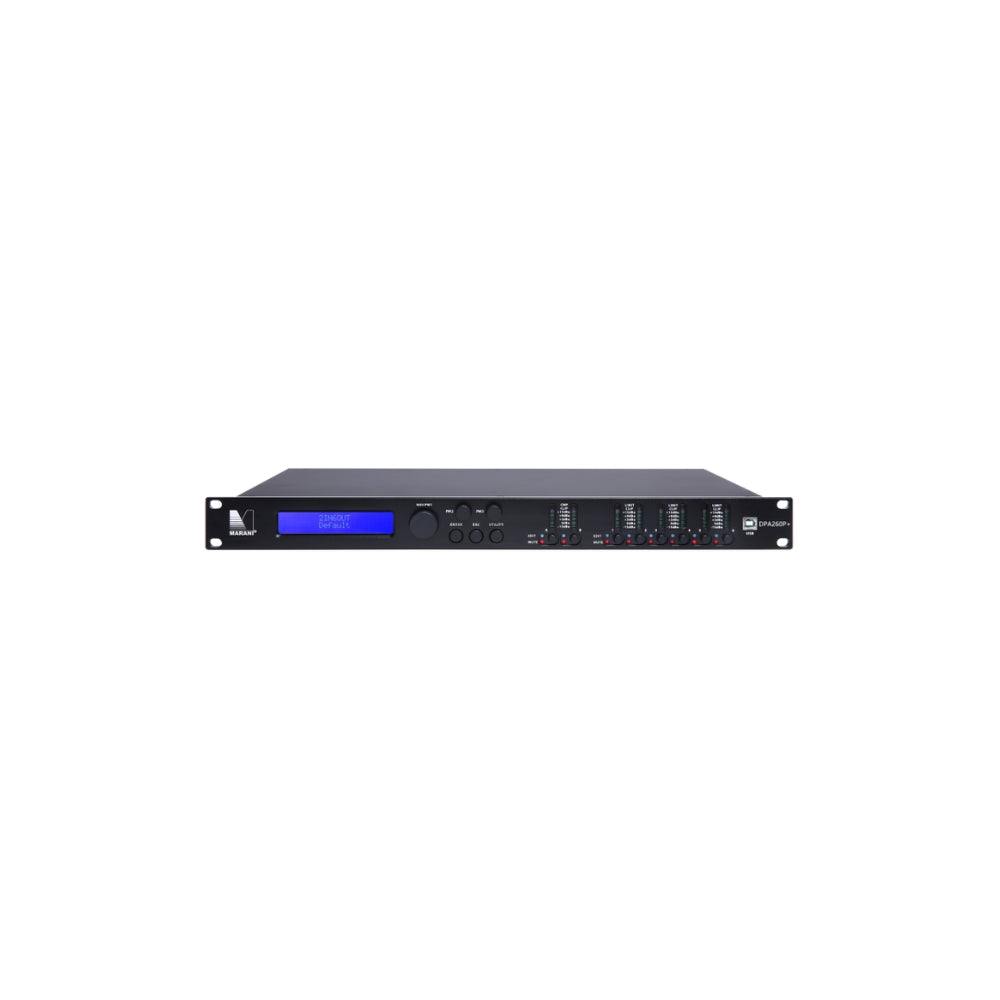

  • Front Panel: 2×24 LCD display, LED meters, rotary encoder, USB Type-B connector

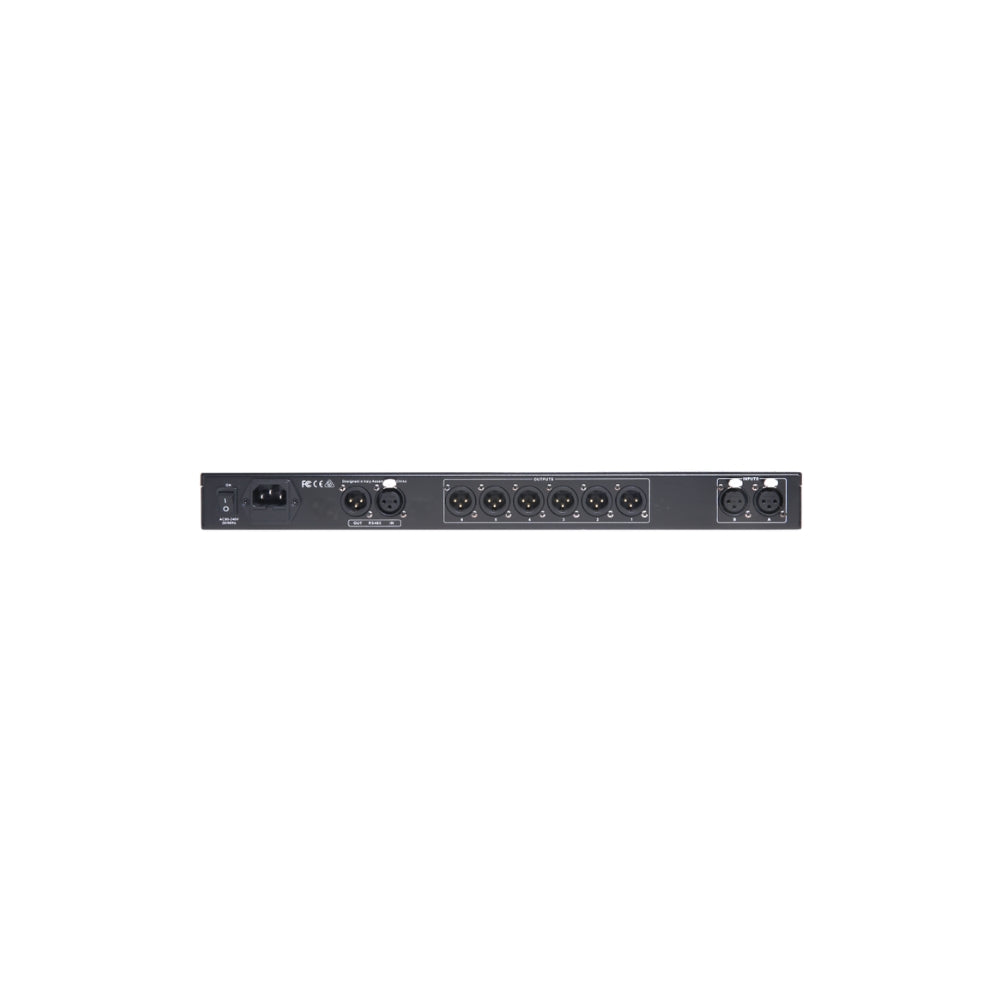

  • Rear Panel: 2 x XLR inputs, 6 x XLR outputs, RS485 input/output, ground-lift switches, IEC C13 power connector

  • Main AC Power: 90–240VAC, 50/60Hz, 40W

  • Dimensions: 19” x 1.75” x 9” (483 x 44 x 229mm), 1RU

  • Package Size: 560 x 320 x 110mm

  • Weight (Net / Shipping): 3.0kg / 3.5kg
