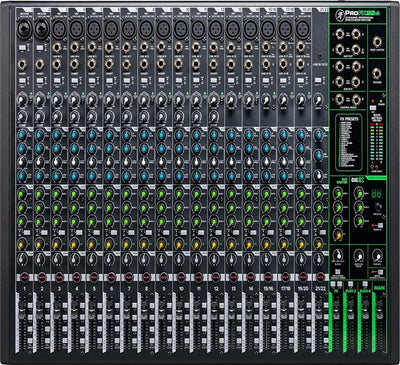

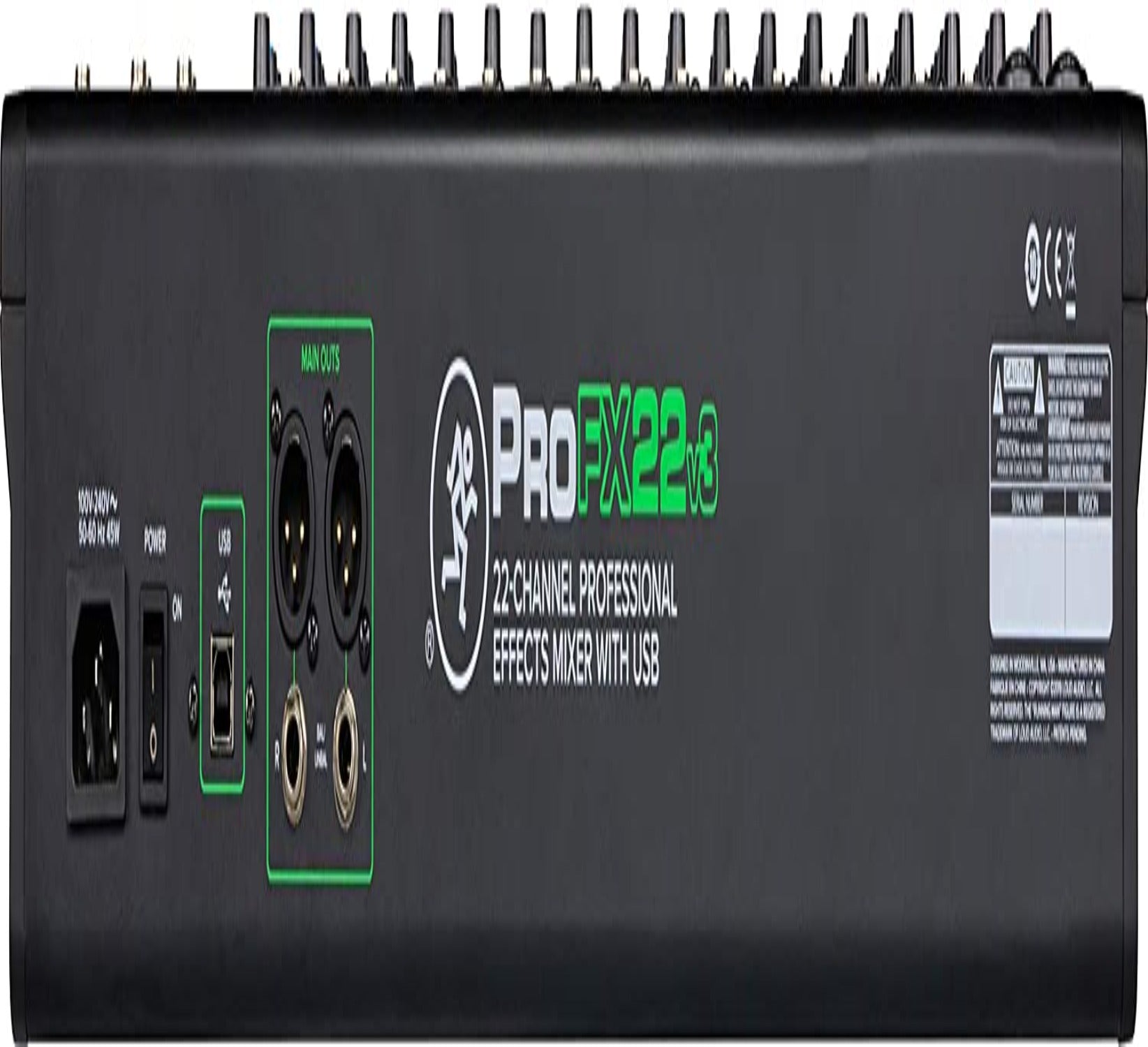

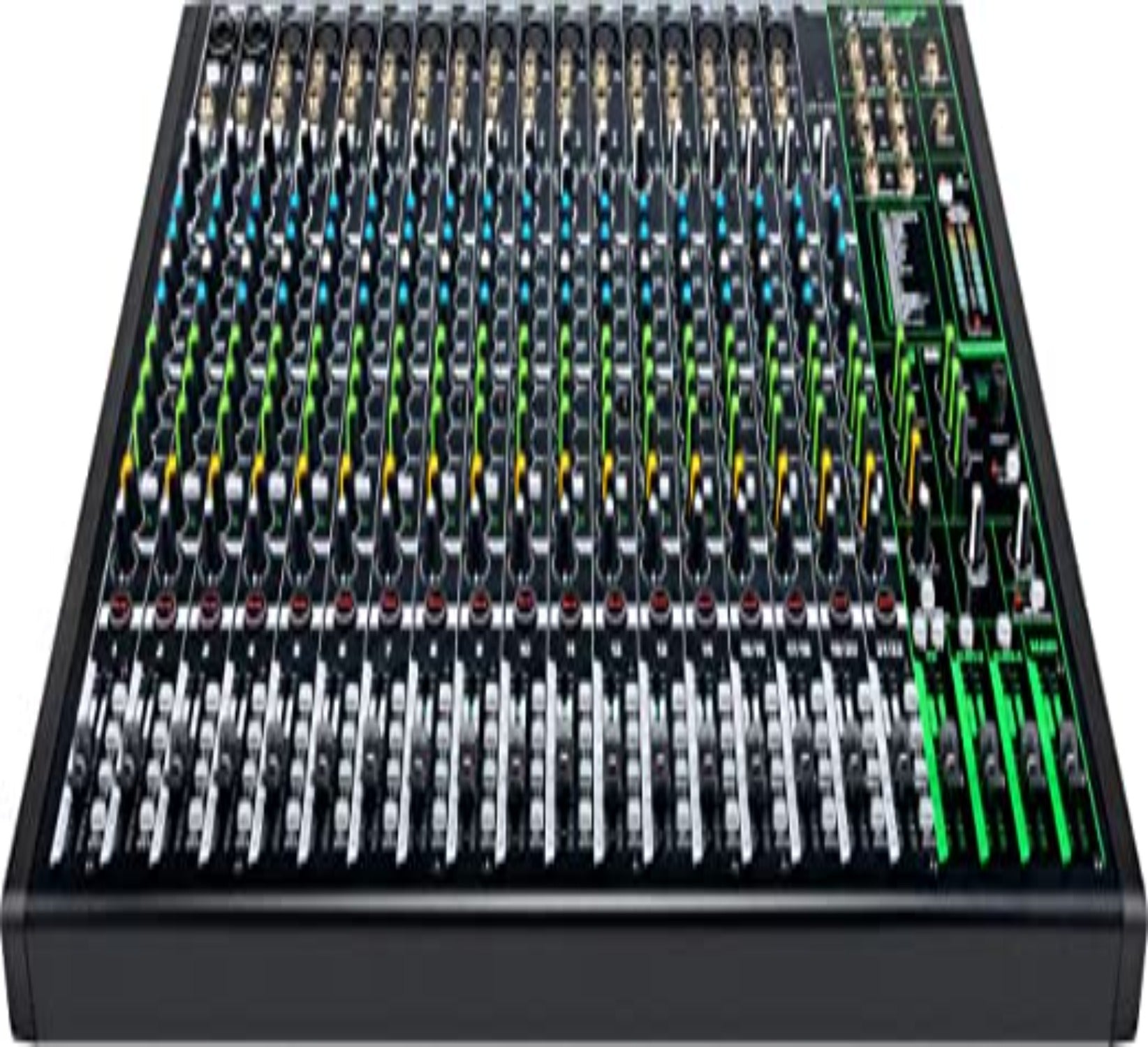

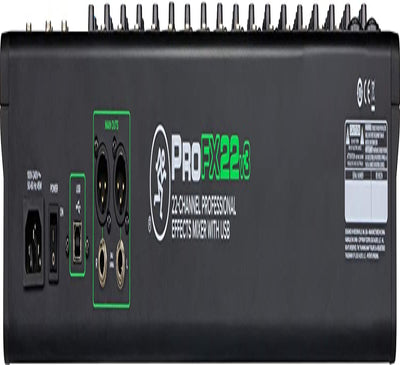

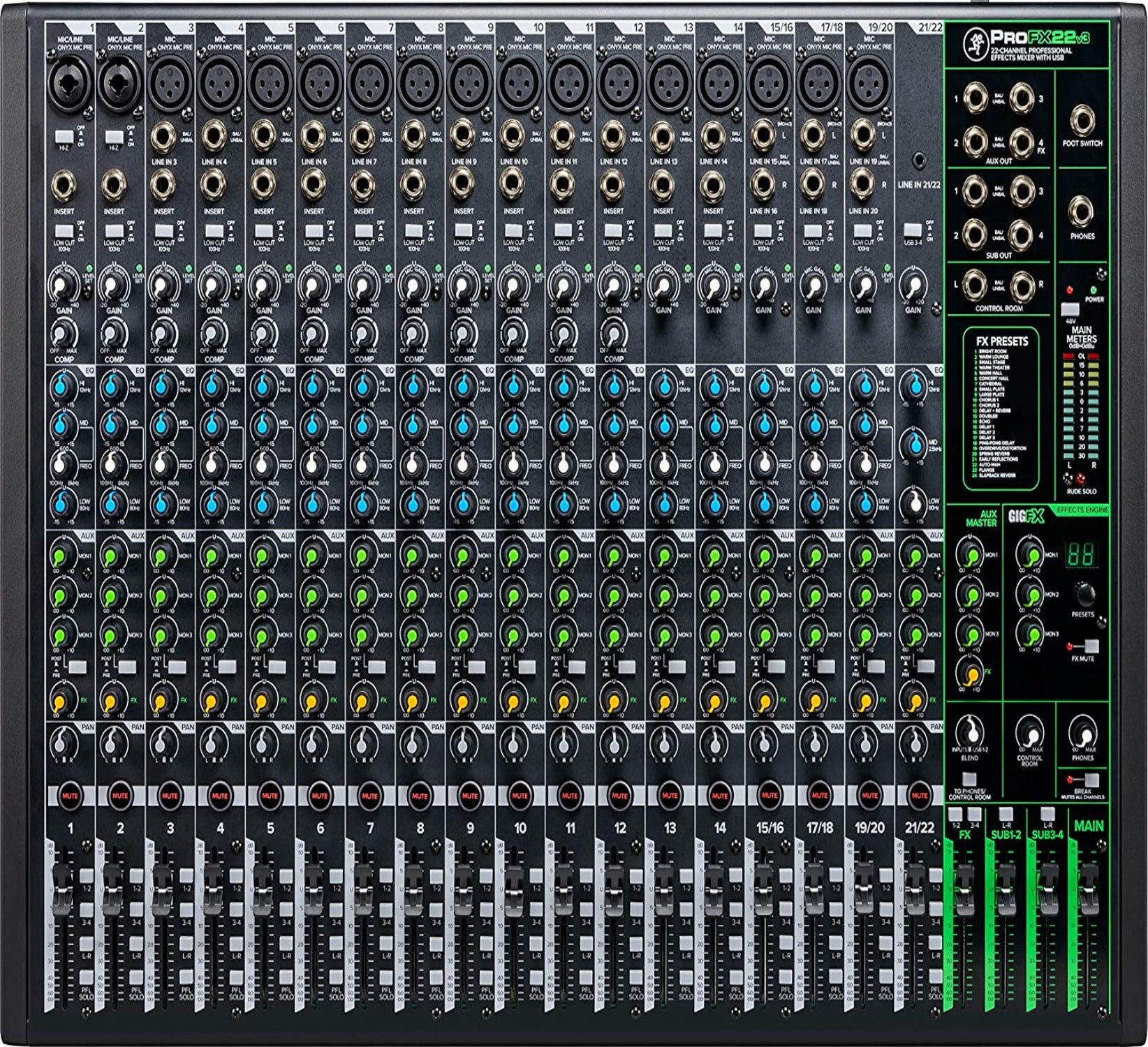

Bring legendary sound to the studio or the stage. The Mackie ProFX22v3 gives you ultimate control, versatility and flexibility for multiple applications that range from recording to live sound reinforcement. In addition to a powerful FX engine, Mackie ProFX22v3 comes with Waveform™ OEM to power your workflow.

Enquire Now

Product details

More Information
  • GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
  • 17 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
  • Rugged design will stand up to the wear and tear of the road
  • 3 Band EQ and 100Hz low-cut filter on all channels
  • Built-in channel compression
  • 48-volt phantom power on all mic channels
  • 24-bit/192kHz A/D for unmatched audio quality
  • USB for playback music and recording into your computer
  • Balanced XLR and balanced/unbalanced outputs
  • Headphone output has separate volume control for comfortable monitoring
Technical Specifications
  • Type:Analog Mixer with USB Interface
  • Channels:10 (4 x mono, 3 x stereo)
  • Computer Connectivity:USB (2 x 4)
  • A/D Resolution:24-bit/192kHz
  • Faders:Rotary Pots
  • Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 2 x XLR (mic)
  • Phantom Power:Yes
  • Inputs - Line:2 x 1/4", 4 x 1/4" (2 x stereo), 1 x 1/8" (stereo)
  • Outputs - Main:2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
  • Aux Sends:1 x FX Send (post)
  • Send/Return I/O:1 x 1/4" (FX send)
  • Inserts:4 x 1/4" (channel)
  • Headphones:1 x 1/4"
  • USB:1 x Type B
  • Other I/O:1 x 1/4" (footswitch)
  • EQ Bands:3-band EQ, 100Hz Low-cut Filter
  • Signal Processing:2 x Channel Compressors
  • Effects:GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
  • Software:Waveform OEM DAW, FX Plug-in Collection
  • Power Source:12V DC power supply (included)
  • Height:3.3"
  • Width:11.9"
  • Depth:10.7"
  • Weight:4.9 lbs.
