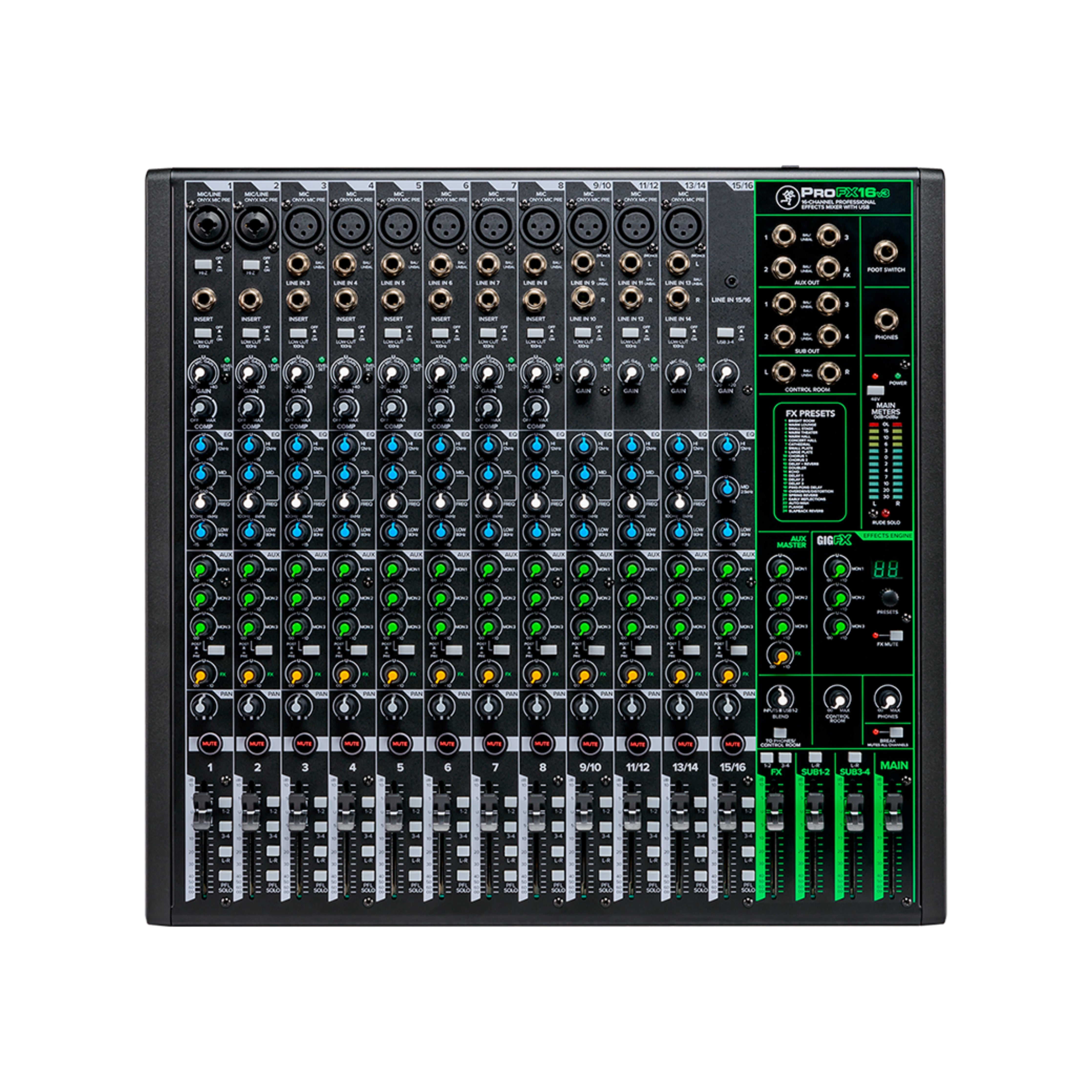

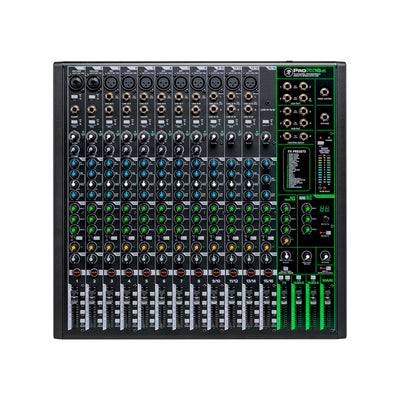

MACKIE ProFX 16V3

MACKIE ProFX 16V3

Looking for a mixer that makes your life easier when you're gigging? The Mackie ProFX16v3 16-channel USB mixer can do that and much, much more. The ProFX16v3 provides you with great sound and features found in larger mixers while remaining portable. This mixer is equipped with 11 Onyx preamps that provide top-notch sound for your keyboard, mics, and guitars. Once you're ready to go, you can use the onboard GigFX to add that little something extra to your mix. No matter if you're onstage or in your studio, the Mackie ProFX16v3 will always give you amazing audio quality.

More Information

  • -GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
  • -11 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
  • -Rugged design will stand up to the wear and tear of the road
  • -3 Band EQ and 100Hz low-cut filter on all channels
  • -Built-in channel compression
  • -48-volt phantom power on all mic channels
  • -24-bit/192kHz A/D for unmatched audio quality
  • -USB for playback music and recording into your computer
  • -Balanced XLR and balanced/unbalanced outputs
  • -Headphone output has separate volume control for comfortable monitoring

Technical Specification

  • Type:Analog Mixer with USB Interface
  • Channels:22 (14 x mono, 4 x stereo)
  • Computer Connectivity:USB (2 x 4)
  • A/D Resolution:24-bit/192kHz
  • Faders:22 x 60mm Faders
  • Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 15 x XLR (mic)
  • Phantom Power:Yes
  • Inputs - Line:12 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)
  • Outputs - Main:2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
  • Outputs - Other:4 x 1/4" (sub group out)
  • Aux Sends:1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
  • Send/Return I/O:1 x 1/4" (FX send), 3 x 1/4" (monitor send)
  • Busses/Groups:2 x Sub Group
  • Inserts:14 x 1/4" (channel)
  • Headphones:1 x 1/4"
  • USB:1 x Type B
  • Other I/O:1 x 1/4" (footswitch)
  • EQ Bands:3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
  • Signal Processing:12 x Channel Compressors
  • Effects:GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
  • Software:Waveform OEM DAW, FX Plug-in Collection
  • Power Source:Standard IEC AC cable
  • Height:4.4"
  • Width:17.1"
  • Depth:24.1"
  • Weight:19.8 lbs.
