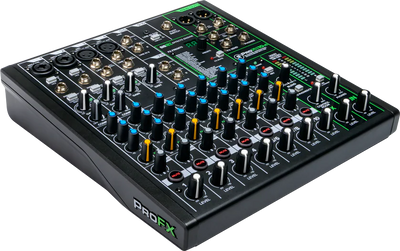

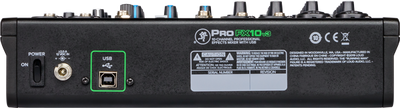

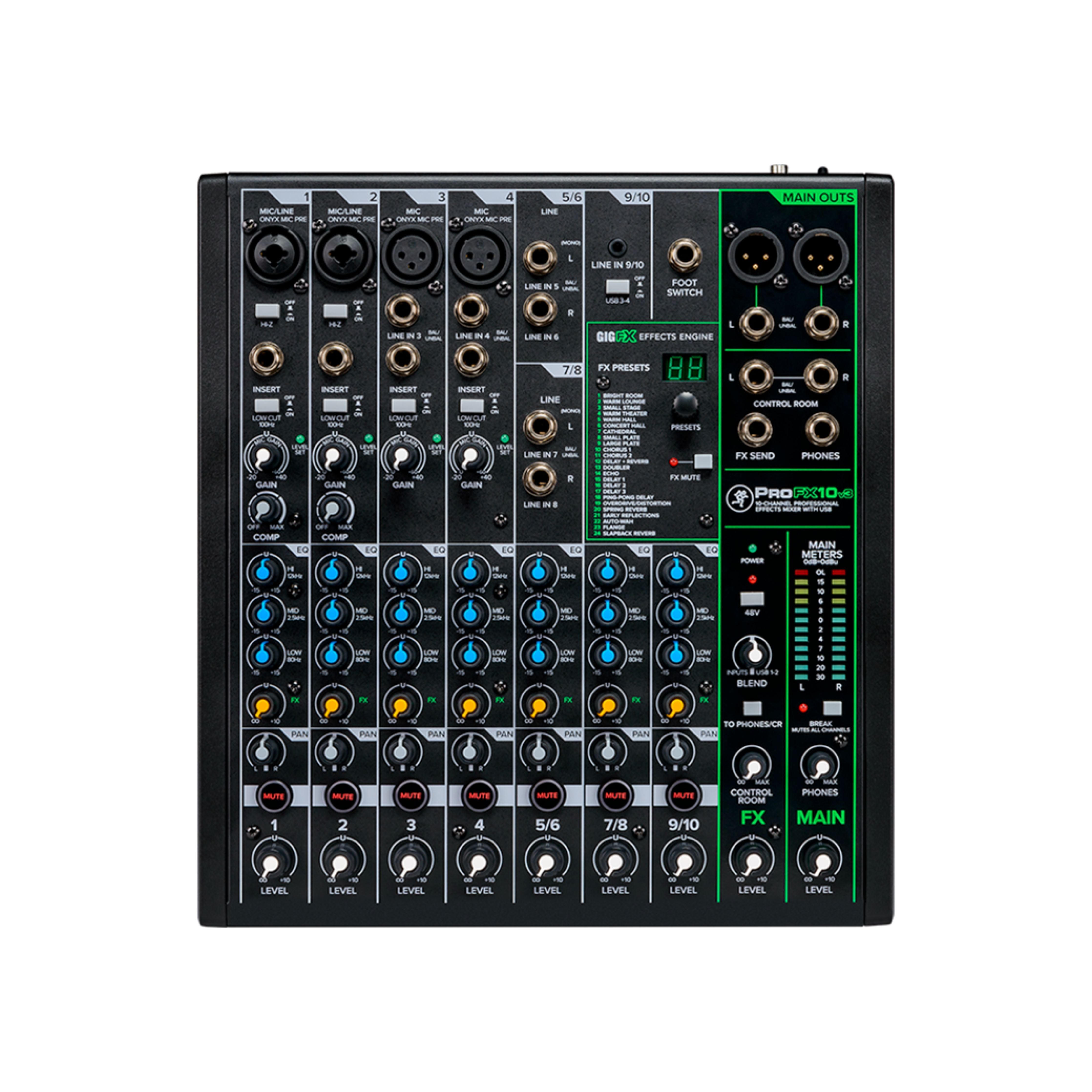

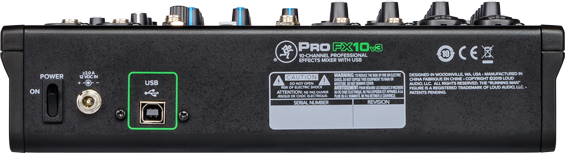

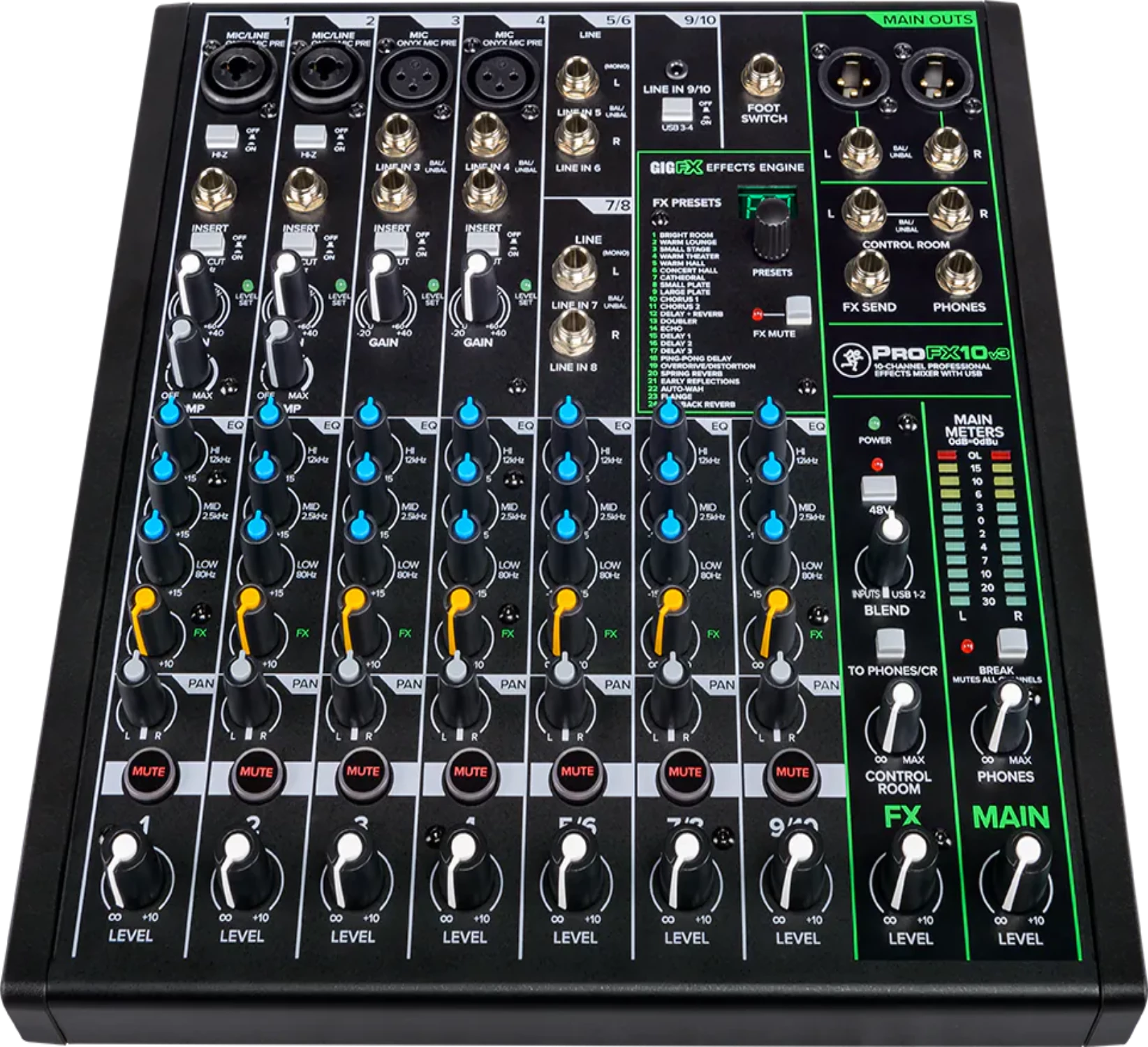

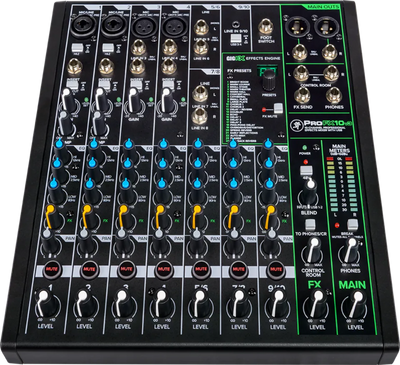

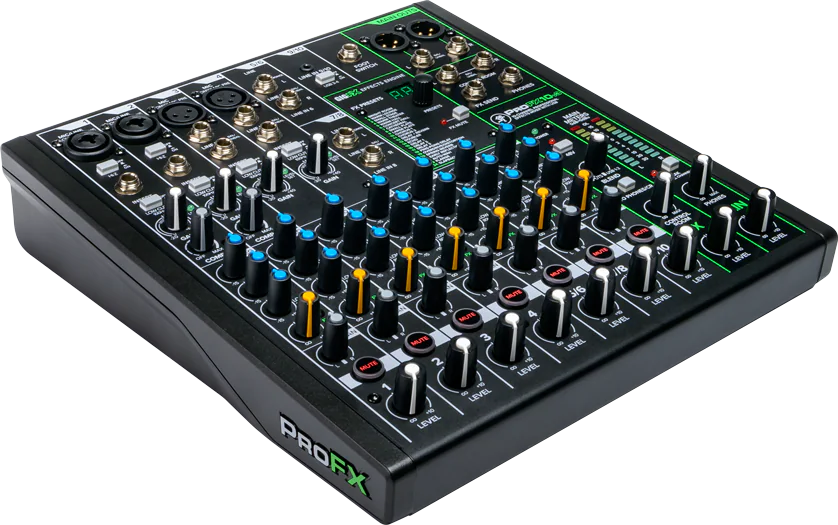

Mackie Pro FX 10V3

Mackie Pro FX 10V3

The Mackie ProFX10v3 channel professional effects mixer with USB is the ultimate solution for live sound; home recording; and content creators. Now with our renowned Onyx mic preamps that provide 60dB of headroom; everything From gain hungry mics to guitars will sound better than ever; and you can keep it all in check with simple single-knob compression. The new gig FX effects engine provide 24 built-in FX for even more options for adding the finishing touch. Record your tracks in 24-bit/192kHz quality with 2x4 USB I/O Plus zero-latency hardware monitoring for easy overdubs. Both Pro Tools first and waveform OEM recording software/plugin packages are included.

More Information

  • -GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
  • -4 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
  • -Rugged design will stand up to the wear and tear of the road
  • -3 Band EQ and 100Hz low-cut filter on all channels
  • -Built-in channel compression
  • -48-volt phantom power on all mic channels
  • -24-bit/192kHz A/D for unmatched audio quality
  • -USB for playback music and recording into your computer
  • -Balanced XLR and balanced/unbalanced outputs
  • -Headphone output has separate volume control for comfortable monitoring

Technical Specification

  • Type:Analog Mixer with USB Interface
  • Channels:10 (4 x mono, 3 x stereo)
  • Computer Connectivity:USB (2 x 4)
  • A/D Resolution:24-bit/192kHz
  • Faders:Rotary Pots
  • Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 2 x XLR (mic)
  • Phantom Power:Yes
  • Inputs - Line:2 x 1/4", 4 x 1/4" (2 x stereo), 1 x 1/8" (stereo)
  • Outputs - Main:2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
  • Aux Sends:1 x FX Send (post)
  • Send/Return I/O:1 x 1/4" (FX send)
  • Inserts:4 x 1/4" (channel)
  • Headphones:1 x 1/4"
  • USB:1 x Type B
  • Other I/O:1 x 1/4" (footswitch)
  • EQ Bands:3-band EQ, 100Hz Low-cut Filter
  • Signal Processing:2 x Channel Compressors
  • Effects:GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
  • Software:Waveform OEM DAW, FX Plug-in Collection
  • Power Source:12V DC power supply (included)
  • Height:3.3"
  • Width:11.9"
  • Depth:10.7"
  • Weight:4.9 lbs.
