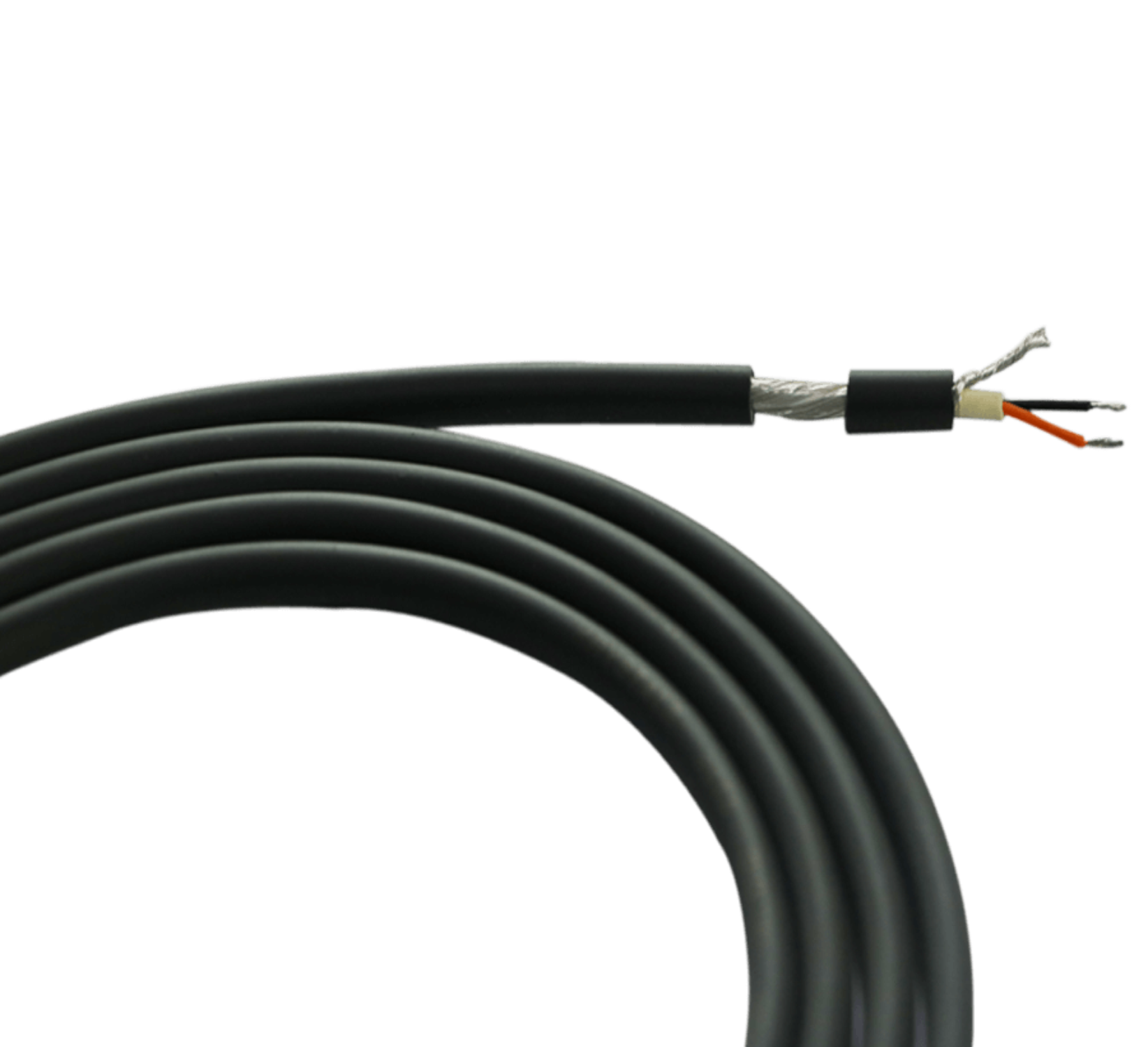

KRYSTALS BETA-Digital-22 AWG Stage Microphone Cable

KRYSTALS BETA-Digital-22 AWG Stage Microphone Cable

Krystals 24 AWG Pro Analog Microphone Cable comes with (19/0.12mm) x 2 core ABC copper conductor, PE insulated, core twisted in a circular form, filled with high volume synthetic fibre, braid shielded (90%) with ABC copper, outer Jacketed with Matt finish High Flex Special PVC.

More Information

Krystals 24 AWG Pro Analog Features:

  • Pro Analog Microphone Cable is our Premium range of Microphone Cable for Stage and Touring use.
  • A Reasonable Cross-Sectional Area of Annealed Bare Copper conductor (19 wires of 0.12mm) and dense Braid Shielding with Bare Copper Wires (128 wires of 0.09mm) gives a complete Shield achieving coverage of around 90%.
  • High volume synthetic fibre acts as a filler & holds the 2 conductors giving an excellent performance of the cable even in extreme usage.

Technical Specification

Specifications

Brand Krystals
Model / Part No. MIC-HFS-PRO-ANA
Type Pro Analog Microphone Cable
No. of Conductors 2
Conductor ( No. / size of wire) 19/0.12 mm
Cross-Sectional Area 0.22 sq.mm (24 AWG)
Insulation Material LDPE
Insulation OD 1.10 mm
Insulation Colours Blue / White
Shield Conductor ABC Copper – (0.09mm )128 wires (approx)
Shield Type Braid Shield – 16 x 8 x 0.09
Jacket Material High Flex Matt Finish PVC
Jacket OD 6.00 mm + – 0.10mm
Packaging 90 meter Coil
Gross Weight of Coil 4.2 Kgs
Master Packing 6 Coils in Carton
Master packing weight 26.2 Kgs

Electrical and Mechanical Characteristics

DC resistance @20 °C – Conductor 80 Ω / Km
DC Resistance @ 20 °C – Sheild 24 /Ω Km
Capacitance – Cond / cond 22 pF/Feet
Capacitance – Cond / Shield 55 pF/Feet
Inductance b/w conductors @1kHz 20⁰C 0.8 μH/m
Electrostatic Noise 100mV Max
Electromagnetic Noise 0.15mV Max
Microphonics @ 50KΩ Load 30 mV Max
Voltage Breakdown Must withstand DC 30V for 15 seconds
Operating Voltage 300 V
Operating Temperature -20⁰ C to +70⁰ C
Dielectric Constant 1k hz 2.3
Dissipation Factor 0.0002
Flex Life 12,500 cycles
Tensile Strength 659 N
