Product details

More Information

Bypass Footswitch

Mix with confidence. The bypass footswitch control allows you to quickly mute the sub and send full-range audio to your recording monitors.

Heavy Duty Enclosure

KRK Subwoofers feature reinforced MDF enclosures for maximum strength and durability. Never let a spilled beer or wild ninja roundhouse kick stop your mixing session again.

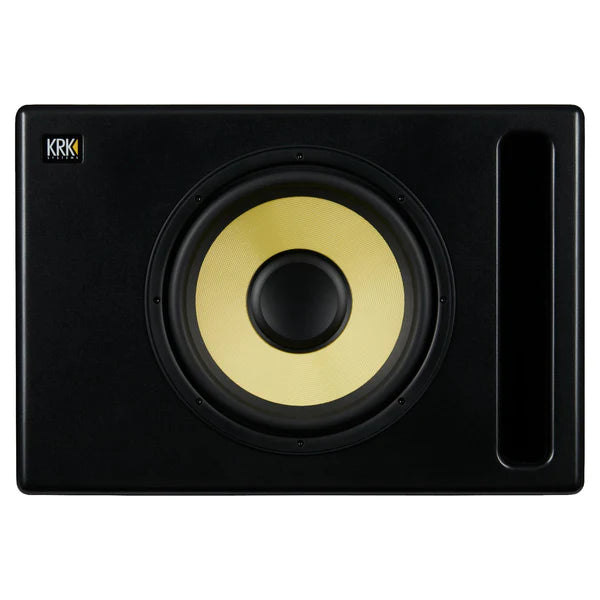

Front-firing Port

We engineered the front port to provide low frequency extension while reducing boundary coupling. The unique shape is optimized to avoid port turbulence.

Plays well with others

Dedicated crossover and optional High-pass filter bypass means that our subwoofers are the perfect compliment to powered monitors. From mixing and mastering to sound design, broadcast and production work - KRK has you covered.

Technical Specifications

Specifications

  • Configuration: Front Loaded, Vented Subwoofer
  • System Type: Active Subwoofer
  • Low-Frequency Transducer: 12" Kevlar® Aramid Composite Woofer
  • Frequency Response: 26Hz - 97Hz
  • Max Peak SPL: 119.9 dB
  • Amplifier: Class D
  • Power Output (Continous): 220 Watts @ 1% THD+N @ 44Hz
  • Signal to Noise Ratio: 92 dB
  • Amplifier Distortion (THD + N): ≤ 0.3% @-3dB Of Max Power Output 29Hz-97Hz
  • Input Impedance: 9.4 KΩ Balanced, 9.2 KΩ Unbalanced
  • Ground Lift: On/Off
  • HPF Bypass: With Footswitch Only
  • Footswitch: Optional
  • Indicators: Power/Standby

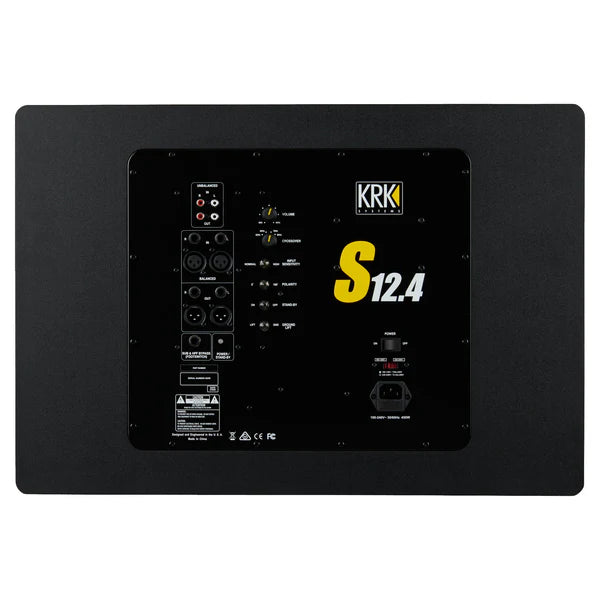

  • Input Connectors: XLR L/R, 1/4" TRS L/R, RCA L/R, 1/4" Footswitch
  • LFE Input: Balanced TRS
  • Output Connectors: XLR L/R, 1/4" TRS L/R, RCA L/R
  • AC Power Input: Selectable 110V-120V / 220V0240V
  • Enclosure: 18mm Reinforced MDF
  • Finish: Black Vinyl Wrap, Baffle - Black Paint
  • Hardware: EVA Isolation Pad
  • Dimensions (H x W x D): (H x W x D): 16.375" (416 mm) x 23.875" (606 mm) x 14.375" (365 mm)
  • Weight: 62.5 Lb. (28.3 kg.)
